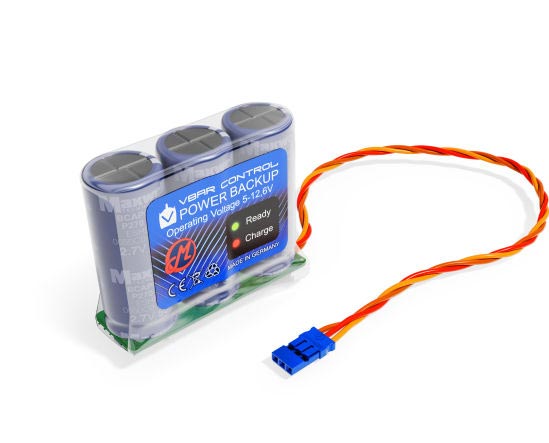

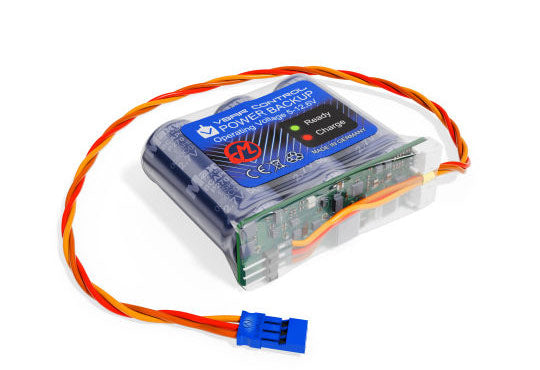

Power Backup, VBar Control, Capacity 3 x 50 F, Receiver Power Backup

Advantages at a glance

• automatic activation/deactivation, depending on flight status (motor switch status, stick inputs)
• all voltages can be individually monitored via telemetry
• adjustable charging currents for initial charge and charging during operation
• automatically recharges as needed without delay
• app warns the pilot if emergency power is being used
• makes the daily operation of your valuable models even safer

Hardware Highlights

• wide voltage range 3 V to 12.6 V (3s LiPo) at 16 V maximum
• capacity 3 x 50 F, 40+ A peak current
• short-circuit proof
• fast charging (adjustable) with up to 2.4 A
• charging current slowly ramped up to protect the main power supply
• decoupled circuits for power output and charging
• setting and monitoring via VLink telemetry
• no servo port has to be sacrificed, servos etc. can be looped through via the main connection
• active balancer for the capacitors, low self-discharge
• up to three devices can be connected in parallel and used to triple the capacity and power; all connected devices are fully supported by the app
• telemetry input for additional telemetry devices (series connection)
