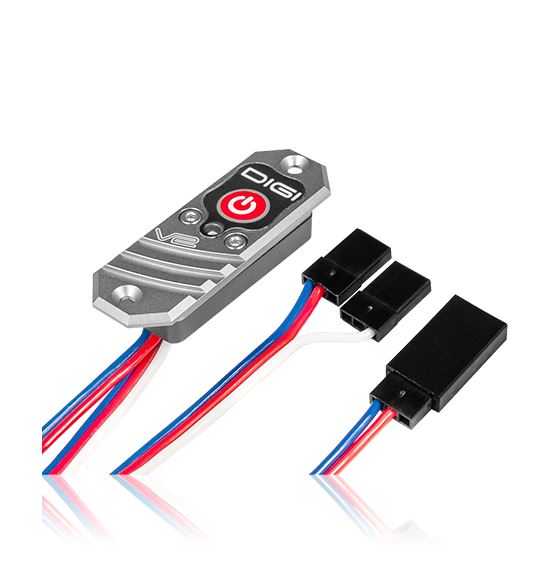

Power Box DigiSwitch V2, JR/JR Connector
PowerBox # 6430

The PowerBox DigiSwitch V2 is the second generation of the globally renowned PowerBox DigiSwitch. Thanks to its compact design and versatile applications, the PowerBox DigiSwitch has been the standard in small to medium-sized models for a good 15 years.

Thanks to the use of state-of-the-art components, the DigiSwitch V2 could be reduced in size by a full 20%.

The use of an elegant, milled and anodised aluminium casing significantly increased the usable cooling capacity – the PowerBox DigiSwitch V2 can deliver approx. 20% more continuous current! The short-term load capacity has even doubled – the DigiSwitch V2 can handle over 10 A for several seconds!

The DigiSwitch V2 has four selectable output voltages – for normal servos, it can be regulated to 6.0 V, for HV servos, regulated 7.0 V, 7.6 V, or an unregulated option is available.

For power supply, you can choose between four different battery types: LiPo, LiIon, LiFePo, and NiMh. Ultra-bright RGB LEDs are used for the voltage display of the batteries, signaling the charge status of the batteries with different colors.

For CORE customers, there is an additional special feature: the battery and regulator voltages can be displayed directly on the transmitter via telemetry!

Product features:

• Powerful electronic switch
• Very light and compact design
• Regulated output voltage
• Adjustable output voltage 6.0 V, 7.0 V, 7.6 V or unregulated
• RGB LED voltage indicator for the battery
• Telemetry support for CORE
• 4 battery types supported: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
• Regulator monitoring
• Suppression of servo back current

Technical data:

• Operating voltage: 4.0V - 9.0V
• Power supply (input voltage): 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMH
• Current consumption: Operation - 23mA
• Current consumption: Standby - 4µA
• Current load capacity: max. 10 A
• Dropout voltage: 0.1 V
• Output voltage: 6.0 V/ 7.0 V/7.6 V stabilized or unregulated
• Dimensions: 50 x 18 x 11 mm
• Weight: 15 g
• Temperature range: -30 °C to +75 °C
