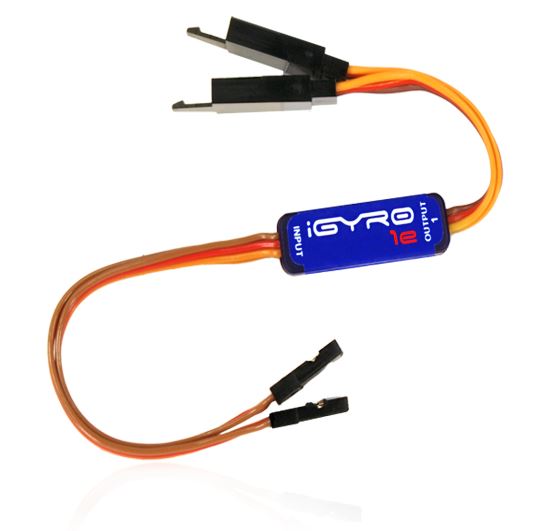

iGYRO1e, Micro 1-axis Gyro System, # 3300

Like the iGyro3e, the iGyro1e is incredibly easy to use.

The device is ready to use immediately upon delivery. Plug in, attach, fly. Its performance is in no way inferior to the larger iGyro systems. The familiar iGyro feeling is perfectly reproduced by this small unit too.

The additional built-in features are unique worldwide in this class: Two outputs can be independently adjusted both in terms of gyro effect and control function. This means that you can set the effective direction of the gyro, the direction of travel, end stop, and center of output 2. The integrated servo match function can be used, for example, to control the rudder and nose wheel with just one channel, but to obtain different gyro functions for both. For instance, the nose wheel can be set with a heading function, while the rudder can only have a normal component. Two ailerons can also be controlled with the gyro function in this way, without having to forgo differentiation. Another feature is the automatically saved gyro sensitivity. This allows the gyro to be set once with a receiver output if channels are limited. If the gain input is disconnected from the receiver, this setting is saved. The receiver output is now available again for other functions. The package is rounded off by the ability to adjust the frame rate and a Gyro-Sense x4 function for large, sluggish models. All components in the iGyro 1e meet the same high quality standards as the large iGyro systems and are 100% "Made in Germany". This means that the iGyro 1e ensures the highest precision and safety not only for small models, but also guarantees it in valuable high-end models. The iGyro 1e is used wherever only one axis needs to be stabilized: in gliders, jets, and engine models. Due to its micro size, the iGyro 1e also fits into any F3B and F5J glider, and even keeps RC cars safely on track!

Features:

• high-precision 1-axis MEMS sensor
• special control algorithm for fixed-wing models
• 1 axis distributed over 2 servos, independently adjustable
• Input and output with conventional PWM signals
• Gain input for sensitivity adjustment during flight
• Heading or normal mode switchable during flight
• Integrated servo match and reverse function
• Gyro Sense x 4 function for large, sluggish models
• Adjustable frame rate
• 16bit processor for high-resolution and fast signal processing
• Additional features adjustable with the USB Interface Adapter
• Updatable with the PowerBox USB Interface Adapter

Technical Data:

• Operating voltage 4.0V - 9.0V
• Current consumption operation 20mA
• Current load capacity 10A
• Signal input PWM
• Servo outputs, total 2
• Resolution servo pulses 0.5µs
• Gyro control: Heading and Normal mode
• Gyro sensor type MEMS
• Number of sensor axes 1
• Dimensions: 33 x 10 x 5.5 mm
• Weight: 7.5g, incl. cable
• Temperature range: -30°C to +75°C
