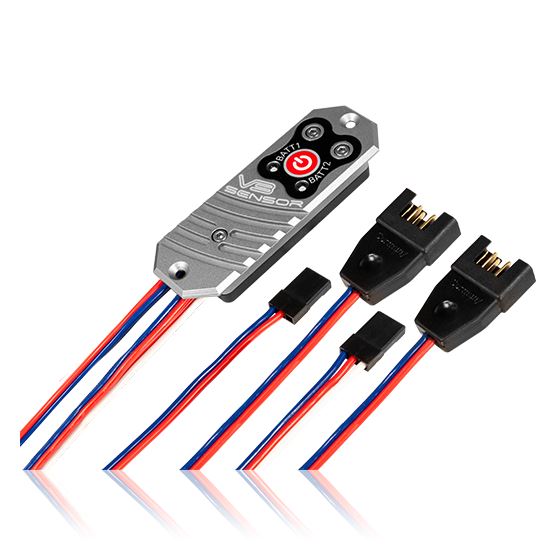

Power Box Sensor 6.0/7.8V with MPX High-Current Connector,
Model Making German # 6332

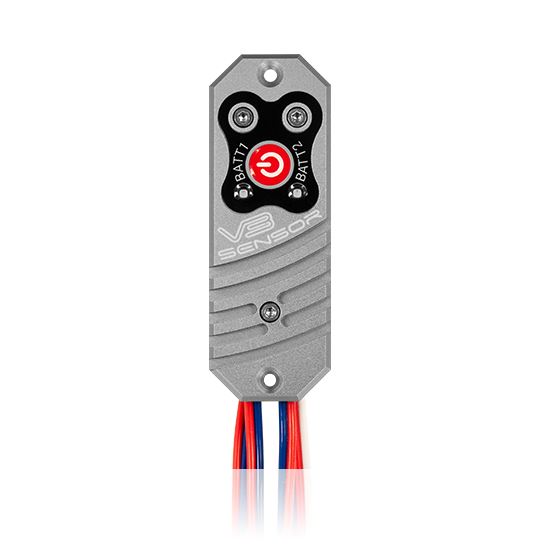

The PowerBox Sensor V3 is the third generation of the world-renowned PowerBox Sensor. Due to its compact design and versatile applications, the PowerBox Sensor has been the standard in small to medium-sized models for almost 20 years.

Thanks to the use of state-of-the-art components, the Sensor V3 could be significantly reduced in size. The depth was precisely halved from 22 mm to 11 mm. Nevertheless, the Sensor V3 fits exactly into the cutout of its predecessor!

By using an elegant, milled and anodized aluminum housing, the usable cooling capacity has been significantly increased – the PowerBox Sensor V3 can deliver approx. 35% more continuous current! The short-term load capacity has even doubled – the Sensor V3 can handle over 20 A for several seconds!

Four different battery types can be selected for power supply: LiPo, LiIon, LiFePo, and NiMh. Ultra-bright RGB LEDs are used to display the voltage of the batteries, signaling the charge status of the batteries with different colors.

For CORE customers, there's an extra special feature: both battery voltages can be displayed directly on the transmitter via telemetry!

• High-performance battery switch
• Very light and compact design
• Double regulated output voltage
• Redundant switch and regulator design
• Adjustable output voltage 6.0 V or 7.8 V
• Voltage display for each battery separately via RGB LEDs
• Telemetry support for CORE
• 4 battery types supported: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
• Regulator monitoring
• Suppression of servo back currents
•

Technical data

• Operating voltage 4.0V - 9.0V
• Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiMh
• Current consumption operation 30 mA
• Current consumption standby 10 µA
• Peak current load capacity 2x10A
• Dropout voltage 0.25 V
• Output voltage 6.0 V/ 7.8 V stabilized
• Dimensions 65 x 26 x 11 mm
• Weight 30 g
• Temperature range -30 °C to +105 °C
