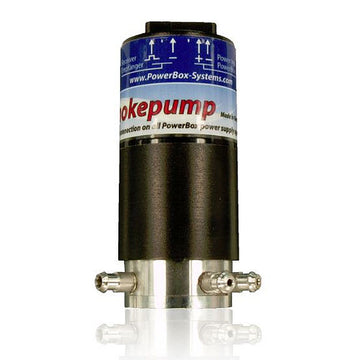

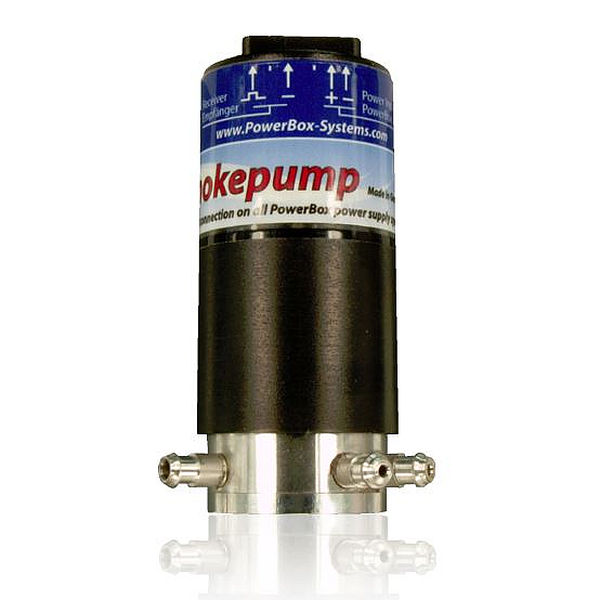

PowerBox Jet Smokepump

The PowerBox Smokepump is a pump specifically developed by PowerBox-Systems for pumping smoke oil. The mechanics and electronics are manufactured in-house, and the high quality standard of this pump is evident in its durability: the PowerBox Smokepump is the most durable smoke oil pump worldwide. This has been proven by several endurance tests. The pump mechanics are made entirely of high-quality aluminum and brass. All pumps undergo a running-in procedure during manufacturing. This ensures that the gears are perfectly run in and the pump is 100% leak-proof.
An additional shut-off valve is not necessary with the PowerBox Smokepump due to the low manufacturing tolerances.
The electronics can be infinitely adjusted from 0% to 100% to precisely adapt the flow rate to the conditions in the model.
The Smokepump can be powered by either a PowerBox or a separate battery. If the pump is powered by a separate battery, the electronics switch to "stand-by" mode as soon as no receiver signal is present. This means that the PowerBox Smokepump does not need to be disconnected from the battery with an extra switch when you switch off the model. The PowerBox Smokepump is available as a jet version with higher throughput and two outlets. The flow rate of the Smokepump Jet (item no. 8015) can convey approx. 950ml.
All necessary connection cables and a heat-resistant hose are included in the set.

Features:

• Durable metal gear pump
• Flow rate infinitely adjustable from 0-100%
• No external shut-off valve necessary
• High delivery rate Can be operated directly from the receiver power supply
• Standby shutdown when operating with a separate battery
• Compact design
• Low power consumption
• Mounting option

Technical data:

• Operating voltage 4.0V - 9.0V
• Current consumption in operation approx. 1.8 Amperes at 100%
• Current consumption standby 10µA
• Max. flow rate 950ml/min smoke medium Smoke oil "blue Max" or 3W Smoke oil
• Dimensions 79 x 31 mm
• Weight 128g
• Temperature range -30°C to +75°C
