PowerBox Mercury SR2 incl. SensorSwitch and
OLED-Display M, #4130

The PowerBox Mercury SR2 is the first choice when a small, powerful power supply with maximum functionality is required. All features otherwise only found in larger power supplies are included in the compact PowerBox Mercury SR2: iGyro, servo matching, free channel assignment, and even a door sequencer make the system complete!

The PowerBox Mercury SR2 offers 16 freely assignable outputs, all of which can be individually adjusted at 5 points via servo matching. For models with larger control surfaces where 2 servos act on the same rudder, the unique Automatch function can precisely match the two servos in a few seconds.
The integrated iGyro software requires an iGyro SAT as a sensor unit - this allows 3 aileron, 3 elevator, and 3 rudder functions to be individually controlled and set. The setup assistant simplifies the configuration of the gyro system and reduces the effort to just a few minutes. During the initial setup, the assistant gathers information about the wing, tailplane shape, and any existing vector thrust. A complex model matrix then calculates in the background which servo is connected to which output and links the corresponding gyro function. A whole range of expert settings also offer all the freedom to adapt the gyro system to individual needs.

Additionally, the GPS III or the PBS-TAV (True-Airspeed-Vario) can be connected to the FastTrack input. This adapts the gyro sensitivity to the flight speed. All GPS or TAV information is also available for telemetry in the transmitter!

The output voltage of the PowerBox Mercury SR2 is regulated and can be set to 6.0V or 7.8V. The power of the two voltage regulators is generously dimensioned by the milled aluminum heat sink on the top and bottom and easily handles power-hungry servos in 3D machines.
The integrated door sequencer can control one landing gear and up to three doors. With the help of the adjustment assistant, the end points of the doors are taught in a few minutes. Three predefined modes cover most landing gear sequences. Afterwards, the timings of the sequence control can be manually adjusted as desired.
For PowerBox and Jeti pilots, the PowerBox Mercury SR2 is almost completely* controllable and adjustable from the transmitter! Telemetry for battery and receiver data is fully implemented for all supported systems.

*except sequencer and setup assistant

Features:

• 16 outputs
• powerful battery switch with high continuous load capacity
• sunlight-readable OLED display
• bilingual menu navigation
• consistently redundant design of the power electronics
• redundant electronic switch
• servo matching for all 16 outputs
• Automatching function
• Door sequencer with setup assistant
• latest iGyro technology integrated, with the iGyroSAT as gyro sensor
• 9 independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
• two selectable output voltages: 6.0V or 7.8V
• optional with GPS III or PBS-TAV for speed-dependent gyro compensation
• Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
• Transmission of battery, receiver and GPS data
• almost complete operability from the transmitter for PowerBox and Jeti
• adjustable servo frame rate: 12ms, 14ms, 16ms, 18ms
• suppression of servo back currents
• updatable with the PowerBox USB Interface or Mobile Terminal

Technical Data:

• Operating voltage: 4.0V - 9.0V
• Power supply: 2s LiPo, 2s LiIon, 2s LiFePo, 5s NiCd/NiMH
• Current consumption: Operating - 100mA
• Current consumption: Standby - 30µA
• Current rating: 2 x 20A (<30s)
• Dropout voltage: 0.3V
• Output voltage: 6.0V / 7.8V
• Signal input: serial
• Supported remote control systems: PowerBox, Futaba, Jeti, Spektrum, M-Link and Hott
• Supported telemetry systems: P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
• Receiver redundancy: SRS
• Channels: 26
• Total servo outputs: 16
• Programmable servo outputs: 16
• Gyro system, software integrated: yes
• Gyro sensor type: external iGyro SAT
• Display: OLED-Display M
• Door sequencer integrated: yes
• Dimensions: 89 x 54 x 19 mm
• Weight: 75 g
• Switch weight: 15 g
• Display weight: 34 g
• Temperature range: -30°C to +105°C

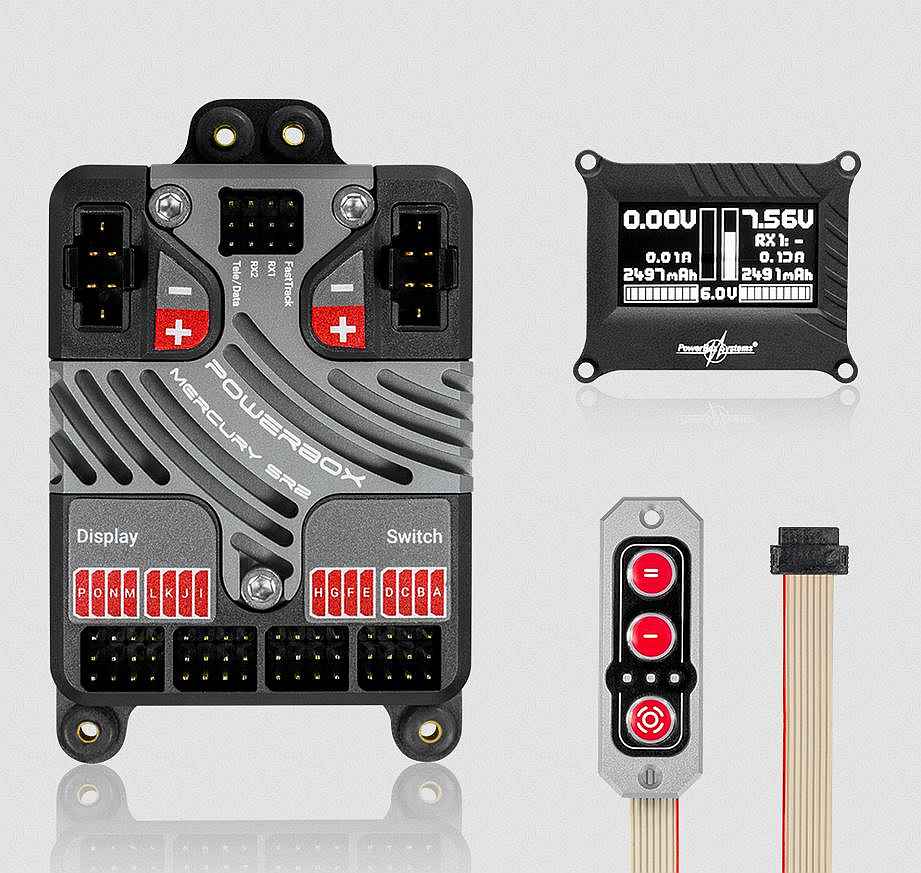

Scope of Delivery:

• PowerBox Mercury SR2
• OLED Display M
• SensorSwitch NG
• 2 patch cables
• 4 rubber grommets and brass sleeves
• 8 mounting screws
• Operating instructions in German and English
