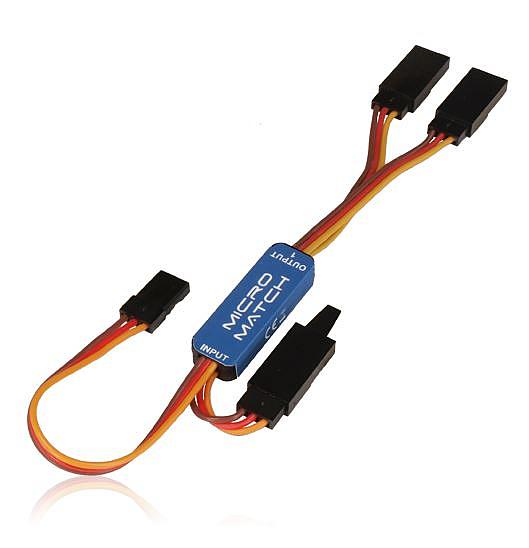

PowerBox MicroMatch

The PowerBox MicroMatch is used wherever a battery backer cannot be accommodated, or where the backer does not offer this function. With the help of the MicroMatch, the servo deflections and the neutral positions of both outputs can be easily adjusted. This allows two servos that work together on one control surface to be electronically synchronized. The servos no longer work against each other, and the torque and speed of both servos come into full effect.
Another positive effect: power consumption and wear of the servos are greatly reduced. A servo reverse function allows the direction of rotation of the servos to be reversed with just one click. This means that elevator servos installed in mirror image can be operated on just one channel. Double rudders or nose wheel steering systems are other applications.
All settings can be made with the USB interface cable (also usable with Jeti and MPX) or the BlueCom™ adapter.
Very practical with the BlueCom™: You can work directly on the servo arm and conveniently make the settings with your mobile phone via Bluetooth! The MicroMatch is updatable, so future functional enhancements are not precluded.

Features:

• Servo match function on both outputs
• Direction of rotation, neutral and endpoints precisely adjustable
• Programmable via phone app (BlueCom) or PC (USB)
• Fast reverse function
• Adjustable output frame rate
• 16-bit processor for fast signal processing
• 4096 steps resolution for the latest generation of servos
• Interference suppression and pulse amplifier function
• Highest current carrying capacity, limited only by the plug connection
• Updatable via BlueCom or USB interface adapter

Technical Data:

• Operating voltage 4.0V - 9.0V
• Current consumption (operation) 22mA
• Current carrying capacity >10A
• Signal input PWM
• Channels 1
• Programmable servo outputs 2
• Servo pulse resolution 4096
• Pulse repetition rate 12ms, 15ms, 18ms, 21ms
• Dimensions: 33 x 10 x 5.5 mm
• Weight: 7.5g
• Temperature range: -30°C to +75°C
