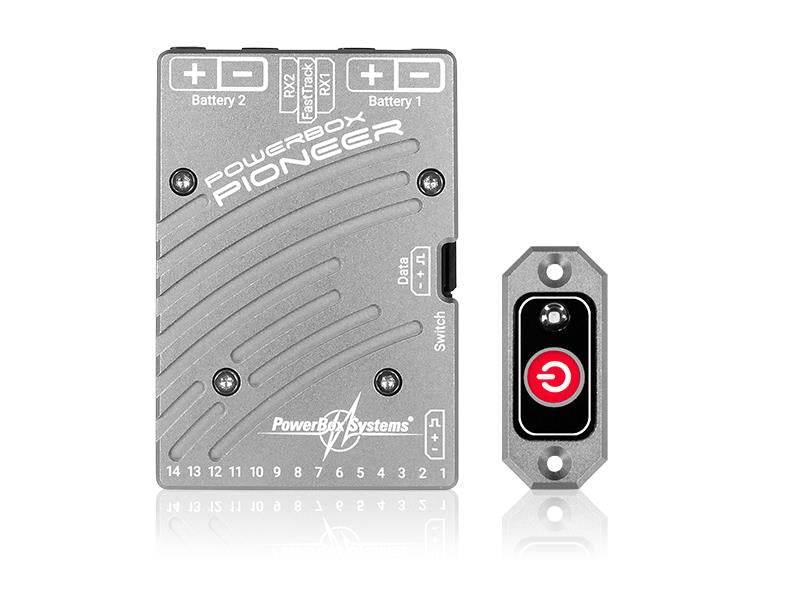

The PowerBox Pioneer is the optimal 14-channel power supply for HV servos without voltage regulation. By eliminating the voltage regulators and the large cooling surfaces they require, the Pioneer impresses with its minimal dimensions. Nevertheless, there's no need to forego redundant power supply design – the standard for all PowerBox-Systems power supplies! The power section and the switching controllers are duplicated to guarantee maximum safety.
Unique in its class, the Pioneer features integrated iGyro technology, which only requires an iGyro SAT as a sensor unit. Optionally connected, a powerful 9-axis gyro of the latest generation emerges from a power supply. The integrated iGyro is extremely easy to use, set up in minutes, and ready for its maiden flight.
Scope of delivery:
- PowerBox Pioneer
- MicroSwitch
- 2 patch cables 22 cm
- 2 mounting screws
- Adhesive pad
- Instruction manual in English and German
Technical data:
| Operating voltage | 4.0V - 9.0V |
| Power supply | 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH |
| Current consumption (operation) | 105mA |
| Current consumption (standby) | 30µA |
| Current rating | Continuous 2x10A (<30s 2x 20A) |
| Dropout voltage | 0.3V |
| Output voltage | unregulated |
| Signal input | serial |
| Supported remote control systems | PowerBox, Futaba, Jeti and Spektrum |
| Supported telemetry systems | P²BUS, S.BUS2, EX-Tele, SRXL2 |
| Receiver redundancy | SRS |
| Channels | 26 |
| Servo outputs, total | 14 |
| Servo signal resolution | 0.5µs |
| Gyro sensor type | external iGyro SAT |
| Dimensions | 63 x 44 x 12 mm |
| Weight | 40 g |
| Switch weight | 8 g |
| Temperature range | -30°C to +75°C |
