PROGCON programming card LCD for AVICON and AQUACON controllers, # AC001

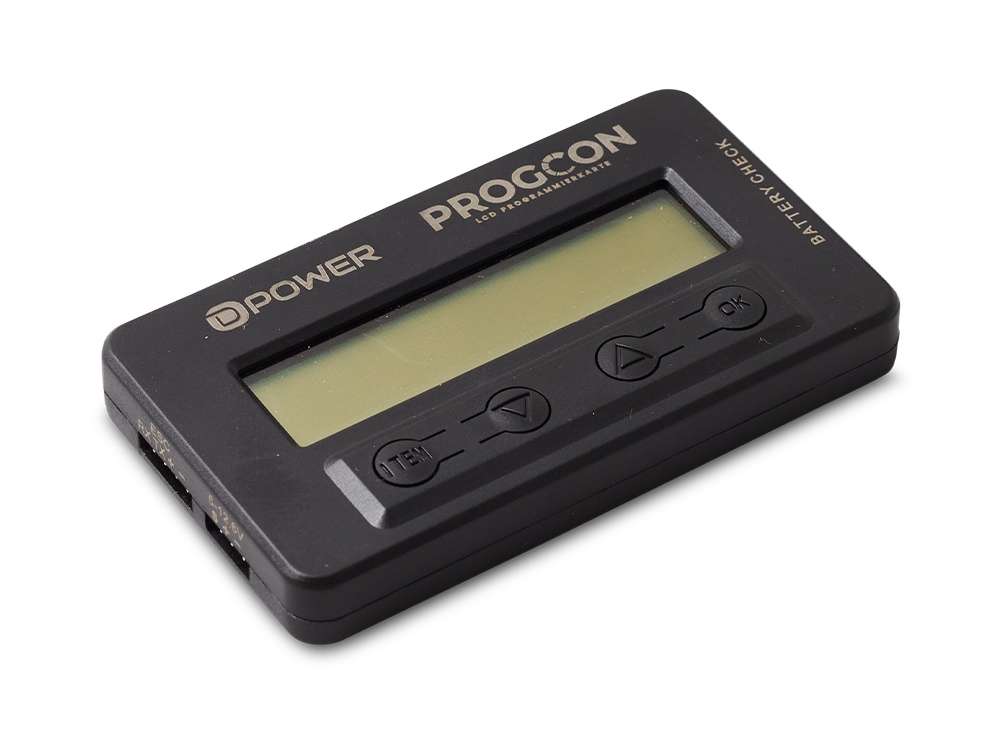

LCD Programming Card for AVICON and AQUACON Controllers
D-Power # AC001
The PROGCON programming card is suitable for the D-POWER AVICON and D-POWER AQUACON controller series. Parameters can be configured and data log values can be evaluated via the LCD programming card. The corresponding controller is connected to the card via the normal servo connection. The card itself is connected to the receiver battery.
Features:
- Works as an individual device for setting parameters for the ESC
- Functions as a LiPo battery voltmeter to measure the voltage of the entire battery pack and each cell
- the PROGCON programming card can display real-time data such as voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature
- PWM throttle signal detection: Identification and display of input throttle pulse width and frequency
- ESC/Servo Tester: It works like a remote control to adjust the speed for ESC/servo by pressing the button on the programming box
Technical Data:
- Dimensions: 115x 84 x 49 mm
- Weight: 40 g
- Current: DC 5 - 12.6V
