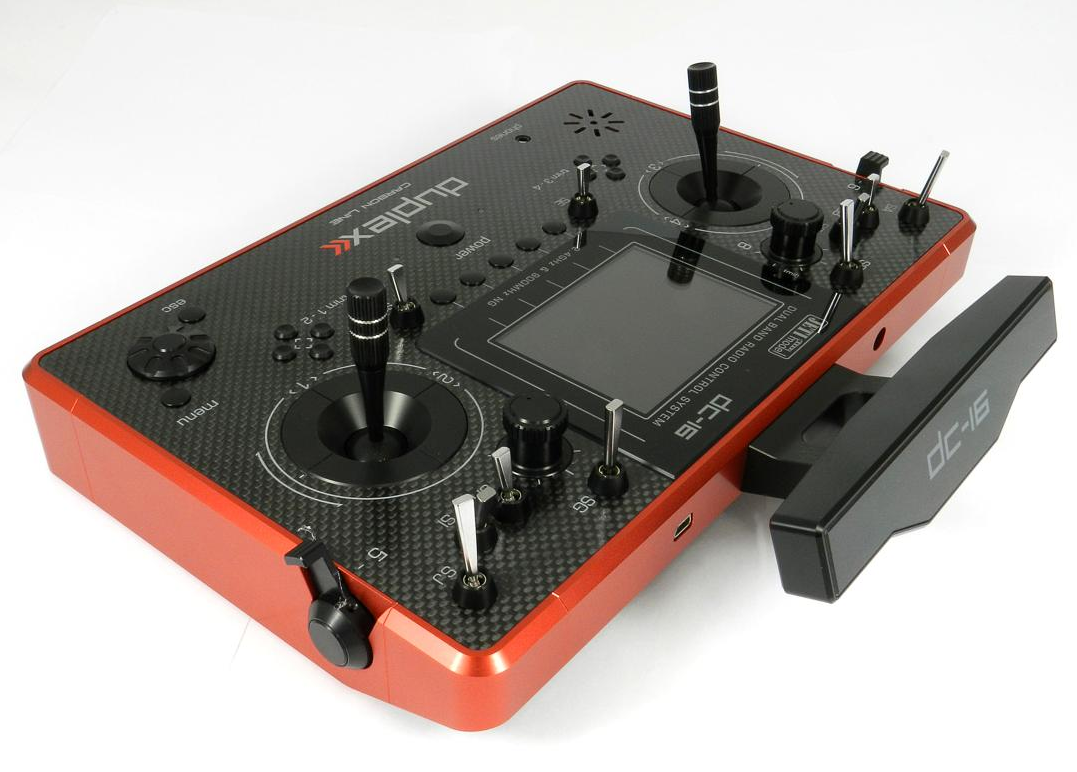

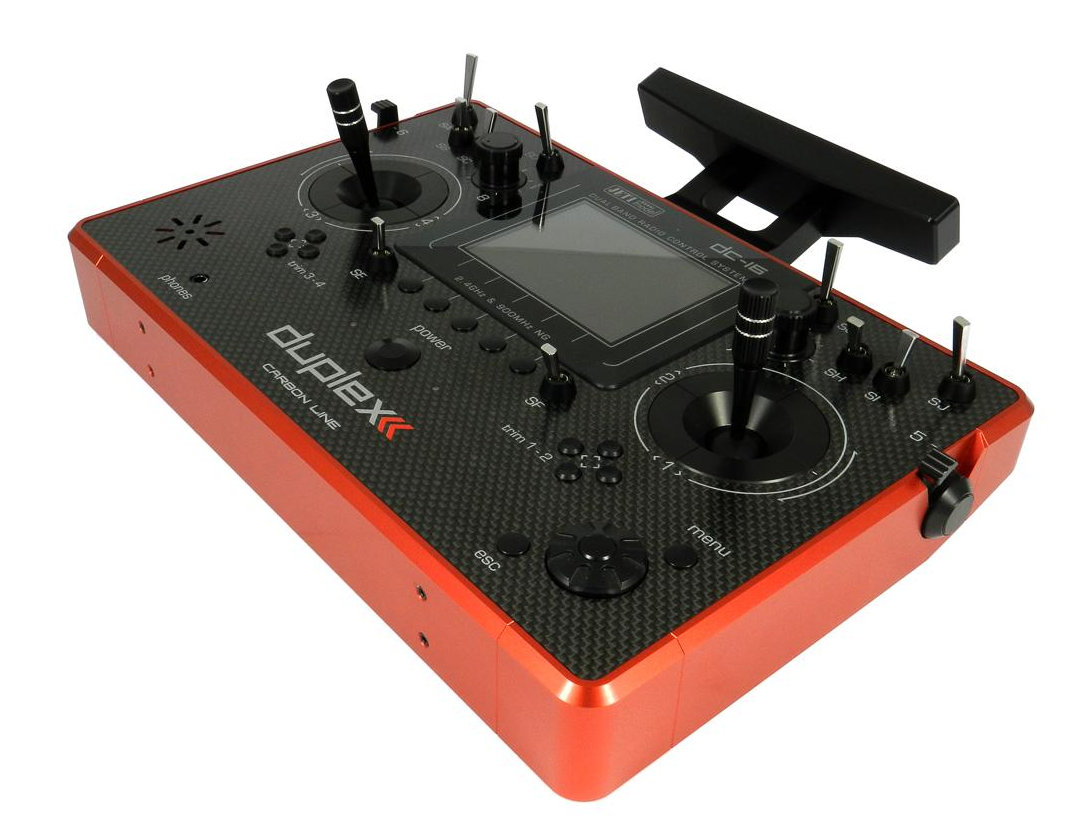

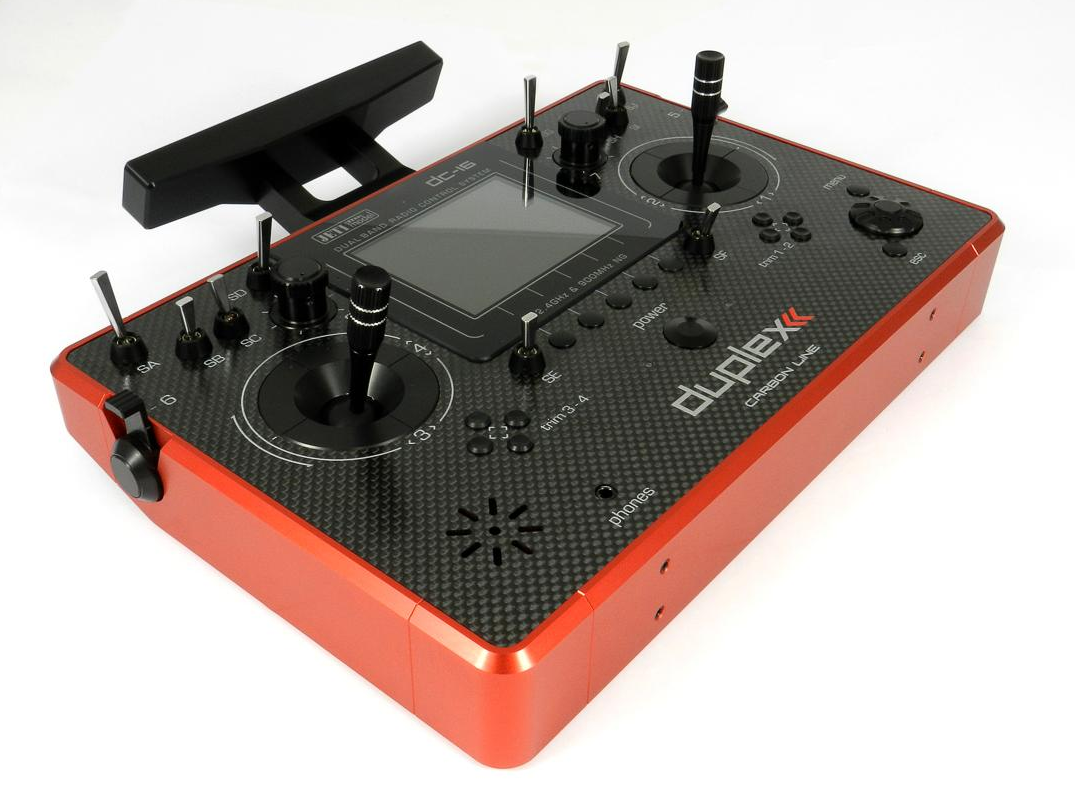

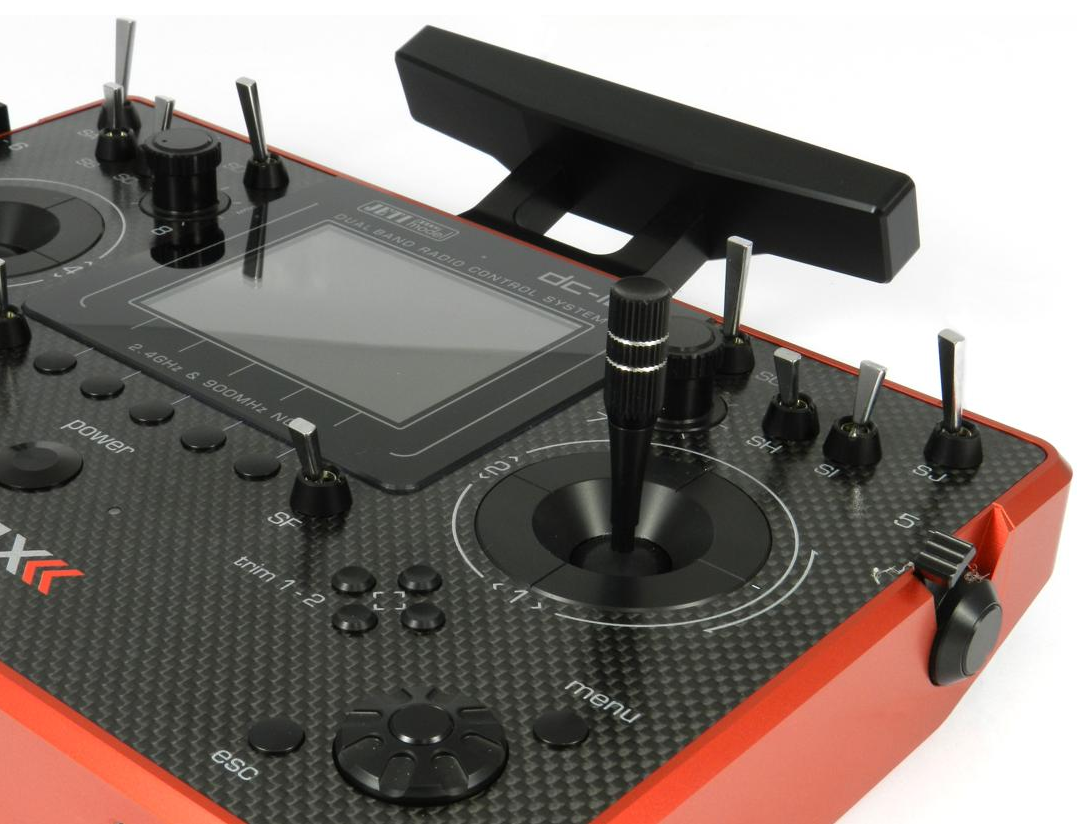

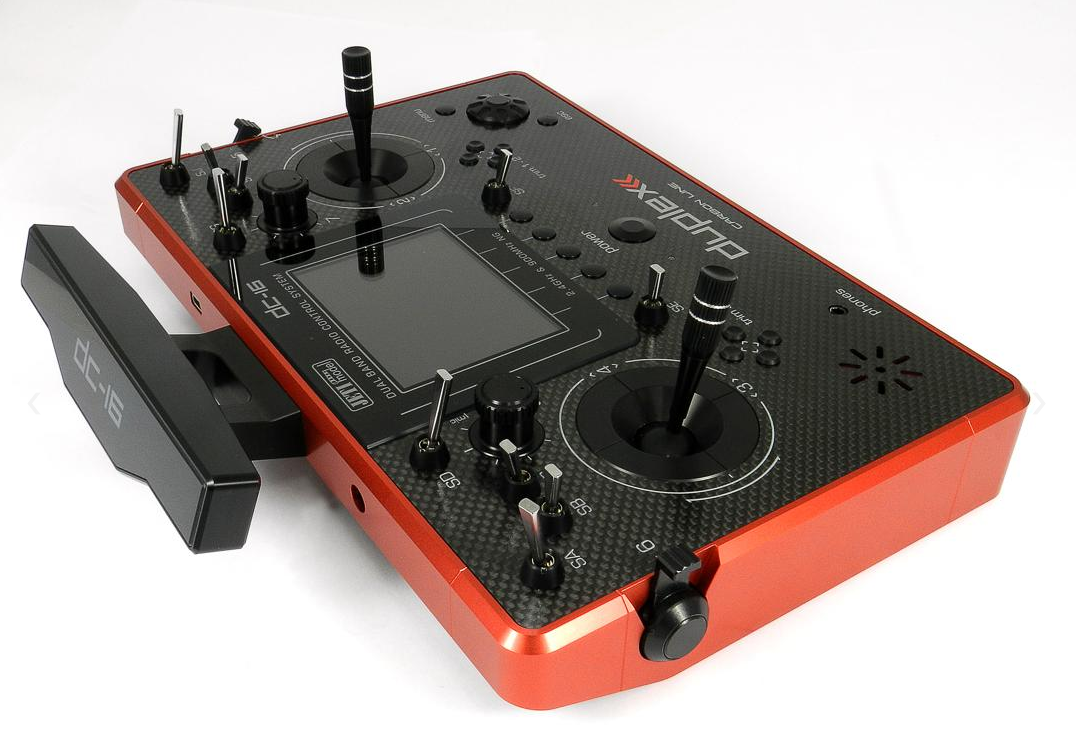

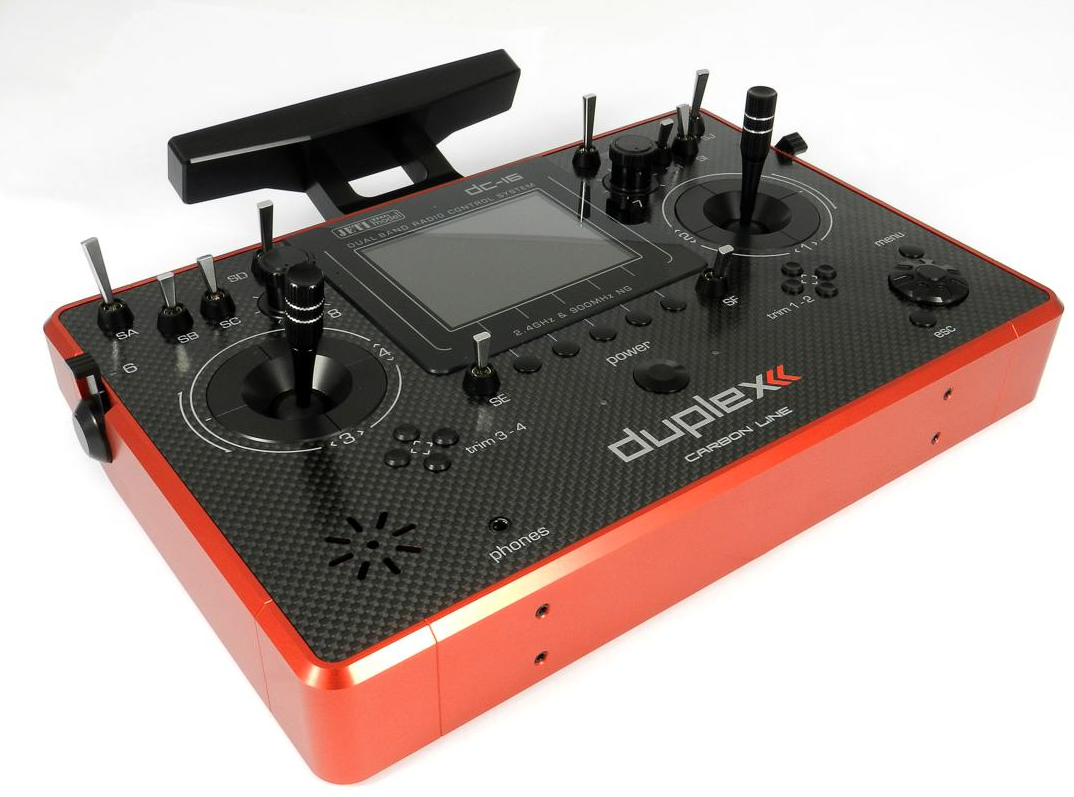

Tray Transmitter DC-16 II Carbon Line Red Multimode, incl. REX 10
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Tray Transmitter DC-16 II Carbon Line Red Multimode, incl. REX 10
Tray Transmitter DC-16 II Carbon Line Red Multimode, incl. REX 10
Scope of delivery

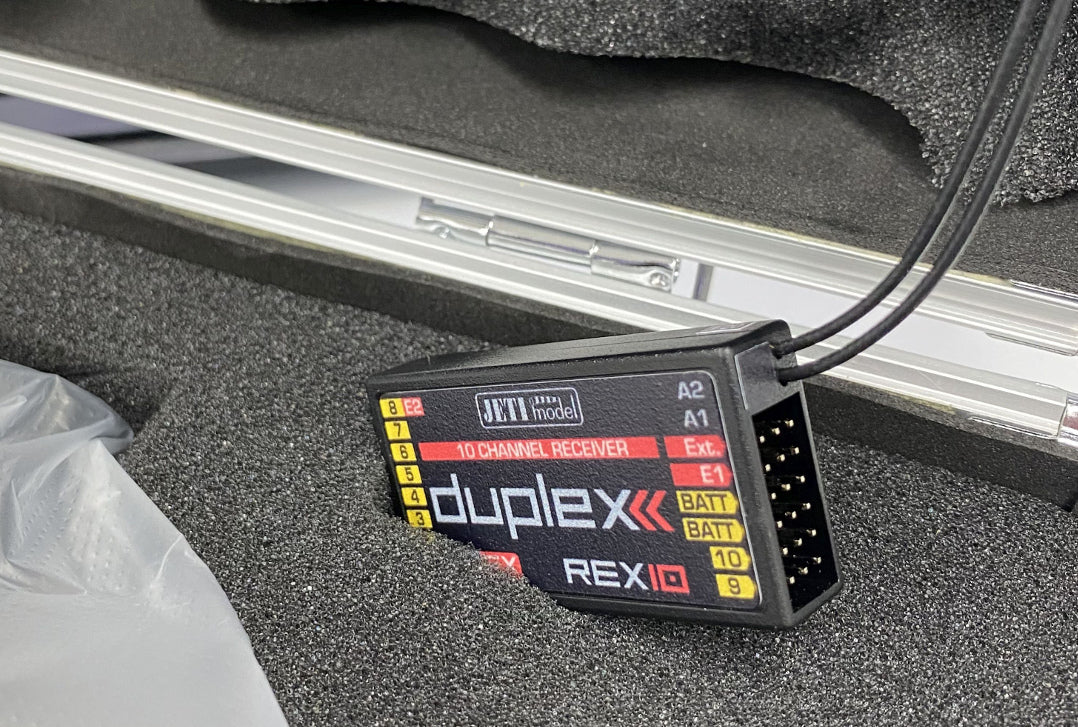

DC-16 II Carbon Line Red Multimode transmitter (delivery in Mode 2, control mode very easy to change), built-in transmitter battery, charger for transmitter battery, sturdy transport case and REX 10 receiver.
Features
- 24 full-fledged control channels
- 3 RF modules (2x 2.4Ghz, 1x 900Mhz optional)
- Color display
- 4 model types (airplane/heli/multicopter/functional model)
- MP3 Player
- Telemetry processes up to 64 sensor values
- Voice input commands optional
900Mhz Receiver System (optional)
The 900Mhz receiver is specifically designed for use with the DC/DS-24. It is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if the 2.4Ghz band is disturbed (e.g. by directional radio, during copter flights for television broadcasts, etc...). The 900Mhz backup system only becomes active if this occurs. This significantly enhances safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.
Transmitter Hardware
- Multimode joysticks
- Detection of stick positions by Hall sensors (without potentiometers)
- Control path resolution 4096 steps

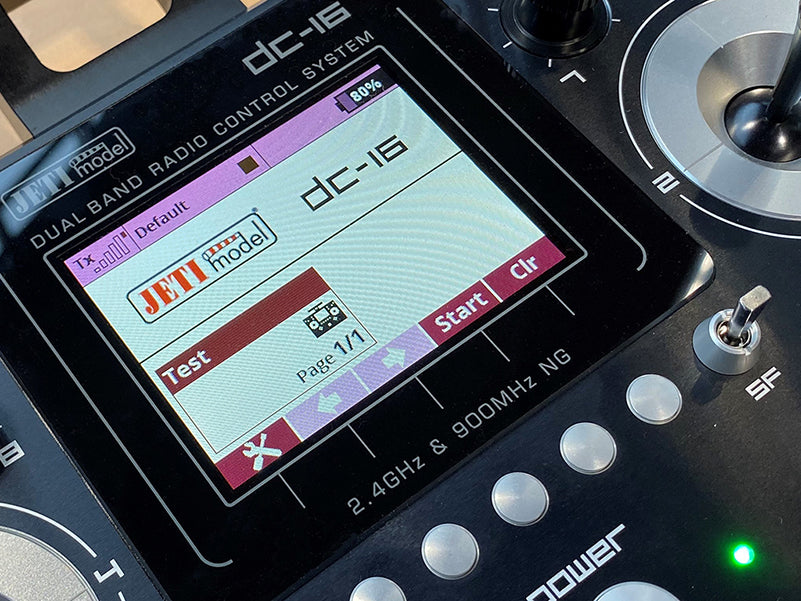

- Color display, backlit
- Rotatable stick units
- Full aluminum joysticks/units, length adjustable, ball bearing mounted
- Internal memory
- Integrated LiIon battery for long operating time
- Charger
- Aluminum transport case
- Voice output
- Headphone jack
- Digital trims
- Anodized aluminum housing
Transmitter Software
- 2.4 GHz DUPLEX EX
- 24 control channels
- Customizable menu navigation
- Virtually unlimited setting options
- Virtually unlimited number of model memories
- Firmware update via USB
- Ultra-fast control reactions
- Power management system for longer operating time
- PC interface
- 4 adjustable model types (airplane/heli/functional model; multicopter)
- 4 languages (EN / DE / CZ / FR)
Telemetry functions
- Voice output of telemetry warnings and telemetry values
- Real-time display of telemetry data on the transmitter display
- Recording of telemetry data
- PC transfer, storage and editing of telemetry values
- Saving (backup) of model data and transmitter settings on the PC
Technical Data
- Dimensions [mm] 230 x 270 x 40
- Weight [g] ~1500
