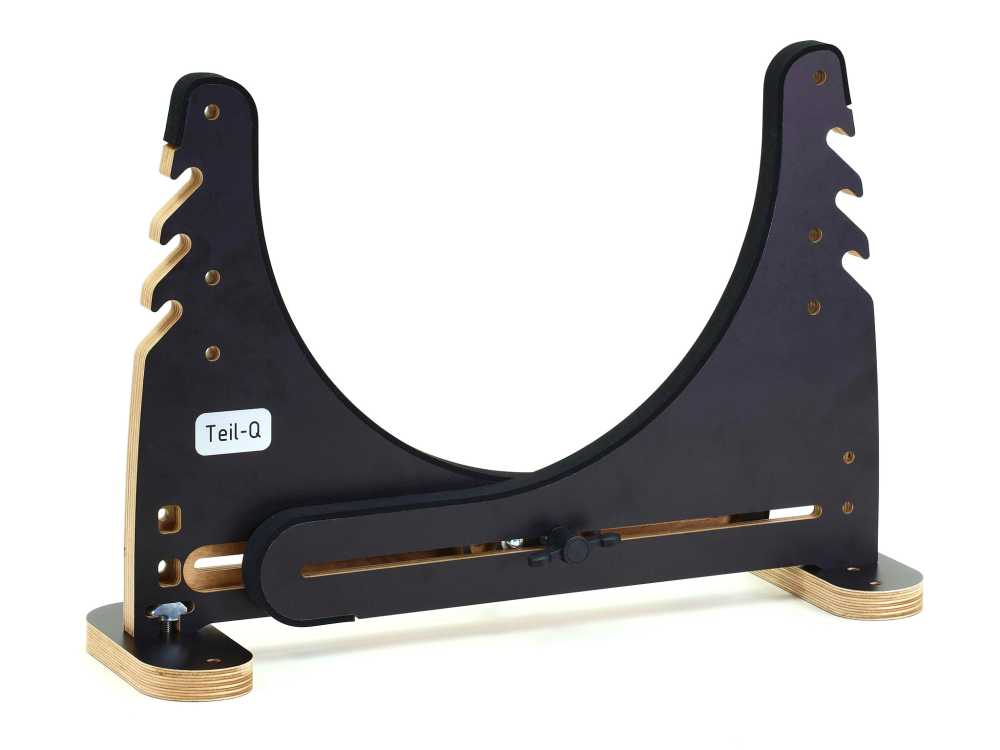

Q-Fix curved L, Part-Q # A20240500

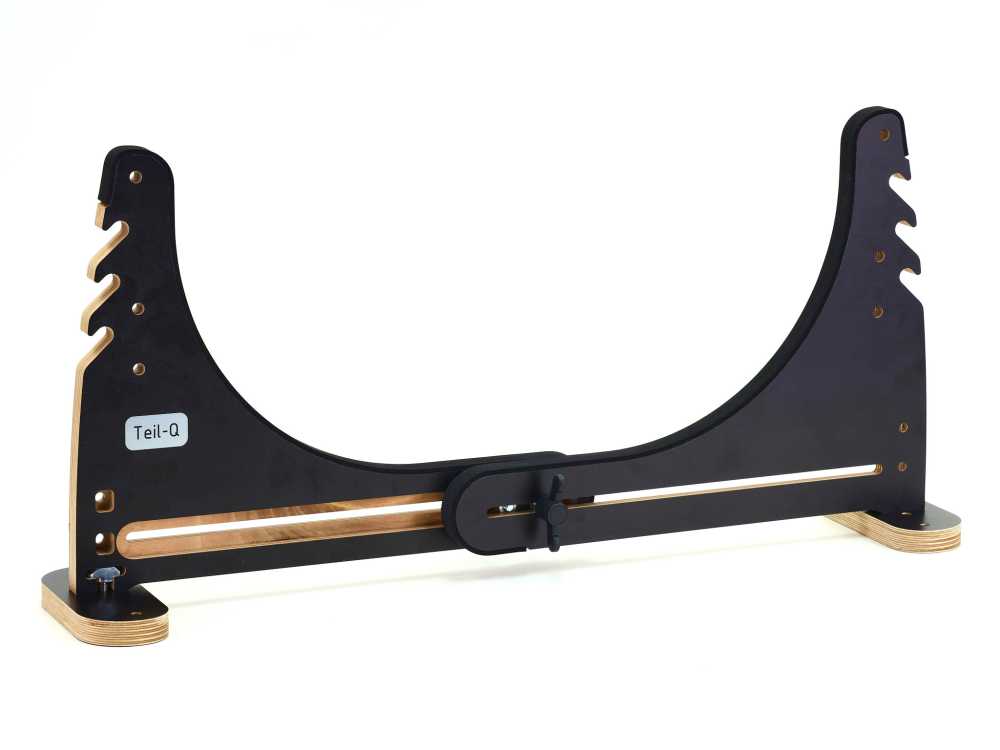

The Q Fix is a model holder that can be placed on a workbench or attached to an aluminum profile, securely holding a flight model in position. It is available in various sizes and in straight and curved (with support radius) versions.

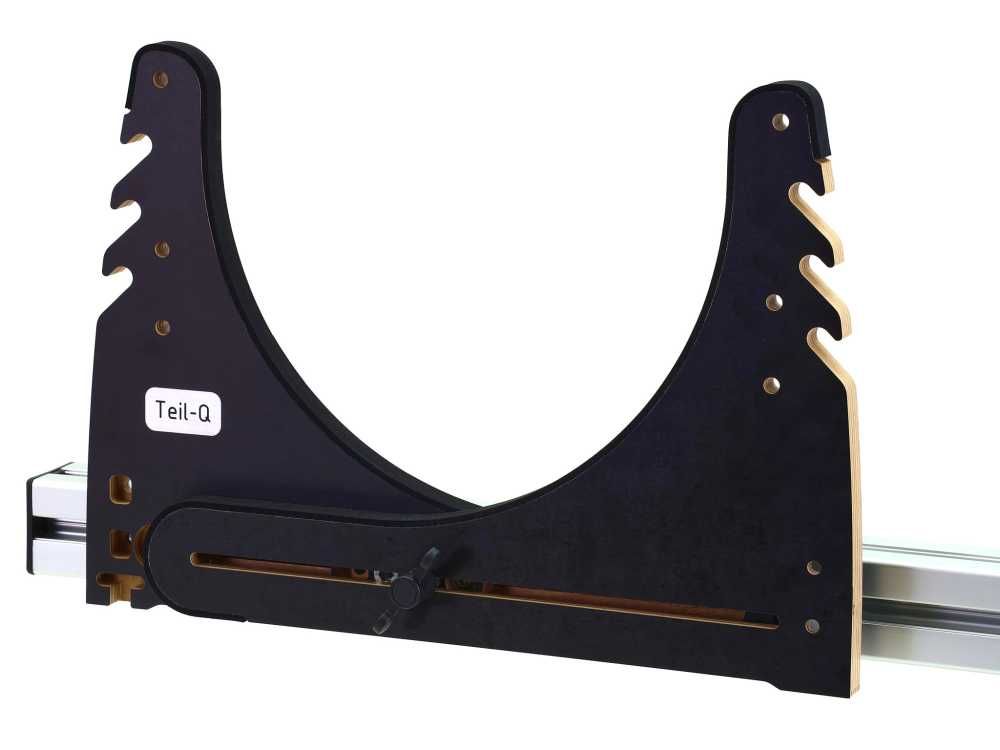

It can be optimally positioned on the workbench using the rotating feet and secured via the mounting holes. The feet can be detached with a screw. The Q-Fix model stand can also be attached to aluminum profiles using the fastening elements.
Elastic cords can be hooked into the cut-outs on the side parts to additionally secure the fuselage. Another option is to expand it with the Part-Q BeltFix. This allows the model to be safely stored and secured.
The model stand can be extended with an additional separator, a height adjustment, and an adapter that allows the Q-Fix to be attached to existing Part-Q model stands.

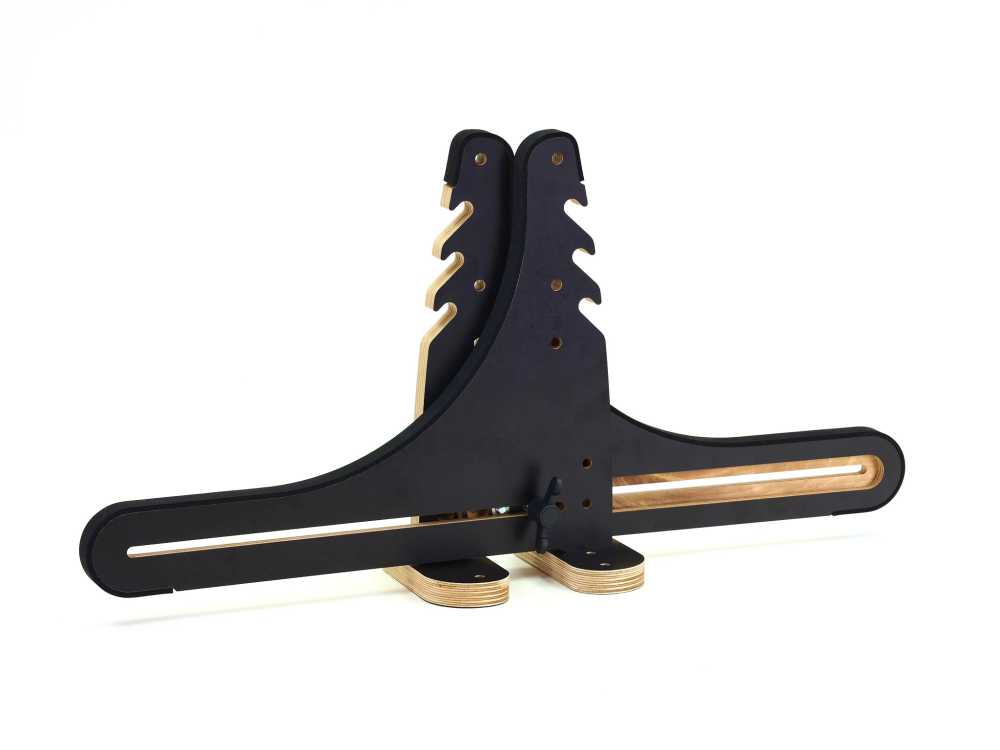

A telescopic mechanism allows for a maximum adjustment range starting from 1 mm.
The wooden parts are CNC milled from high-quality and stable 15 mm birch multiplex and additionally coated with a 220 g/m² thick phenolic resin layer, which makes the model stand particularly durable.
The wooden parts are covered with 3 mm self-adhesive solid rubber at the contact points to ensure the model is held securely and not damaged.
The holders are attached to the Part-Q model stand with an M6 wing nut. A free bore hole or a groove of the model stand can be used for this purpose.
The holders consist of PETG plastic parts, which are reinforced at the mechanically relevant points. The lever clamp buckle itself is made of polyacetal to ensure reliable long-term function.

Technical data:

• Maximum dimensions approx. 120 x 470 x 270 mm without ears (LxWxH)
• Clamping width 1 – 340 mm
• Support height 67 mm
• Support radius 160mm

Scope of delivery:

• CNC milled parts (unfinished and connected)
• Rubber pad
• 2 x wing screw
• 2 x threaded inserts with hexagon socket for easy assembly
• 2 x Part-Q shield
• 2 x M6 x 25 flange head screw
• 2 x M6 hammer nut
• 1 x illustrated assembly instructions
