Richter Tow Release for Bulkhead Mounting on Engine Models
Richter Tow Release for Former Mounting on Model Airplanes
MADE in Germany
With this Richter tow release for former mounting, there is no need to reinforce the fuselage planking. Only a suitably dimensioned former needs to be provided in the fuselage of the tow model, and proper force transfer into the fuselage must be ensured. Tensile tests have shown that the tow release can easily withstand loads of up to 100kp and more. The release has two triggering functions. For example, on show models, a parachute can be released with the first function and a banner with the second.

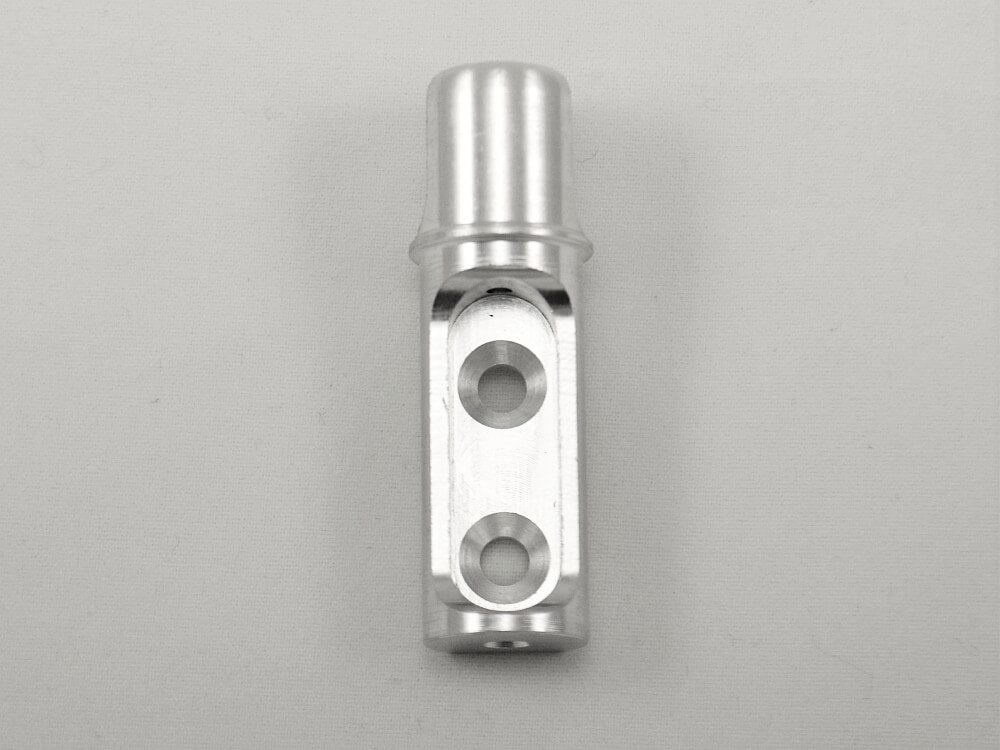

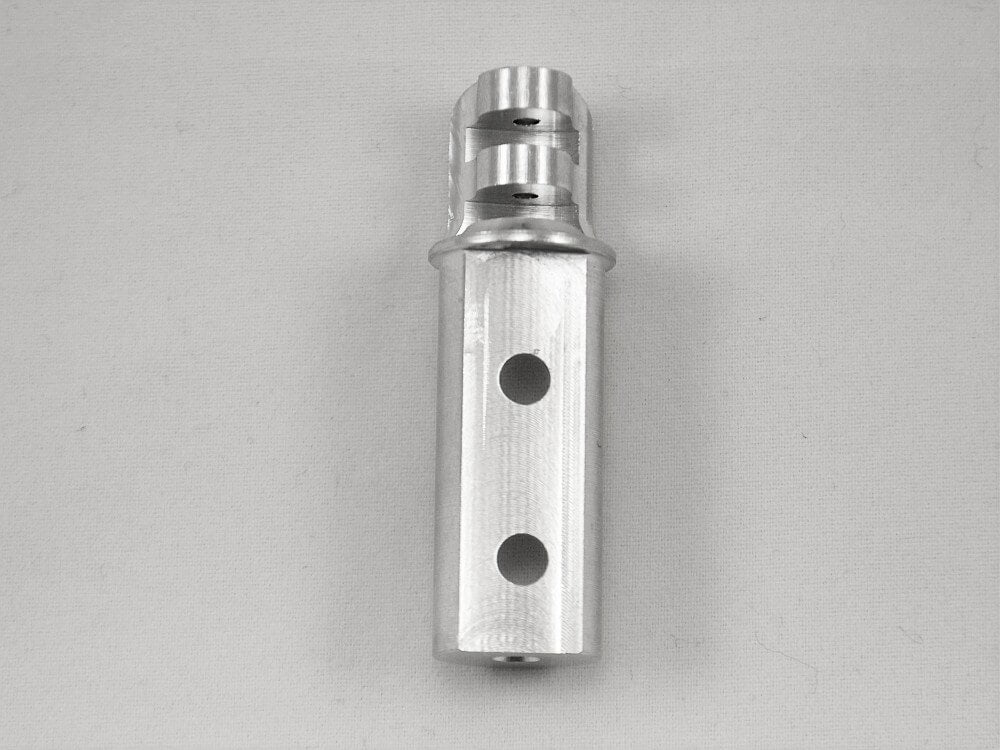

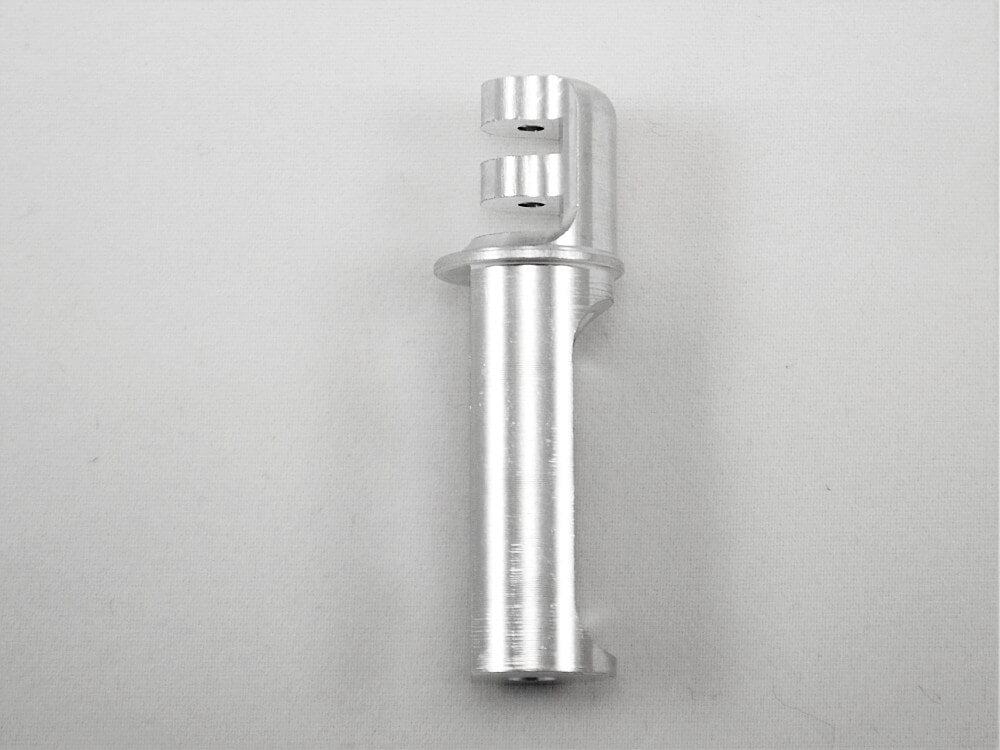

Outside the fuselage, the coupling is very elegantly milled, allowing ropes as well as key rings to be easily attached. The release pin is made of 100mm long spring steel. At the end, there is an M2.5 thread for screwing on a standard ball joint.
The coupling is designed so that it can be operated with the included pin or a Bowden cable. At the bottom end of the coupling, there is a bearing for a 3mm Bowden cable tube.
Technical Data:
-
Overall length: 50mm
-
Length inside fuselage: 34mm
-
Length outside: 16mm
-
Outer diameter: 14mm
-
Weight: only 11g

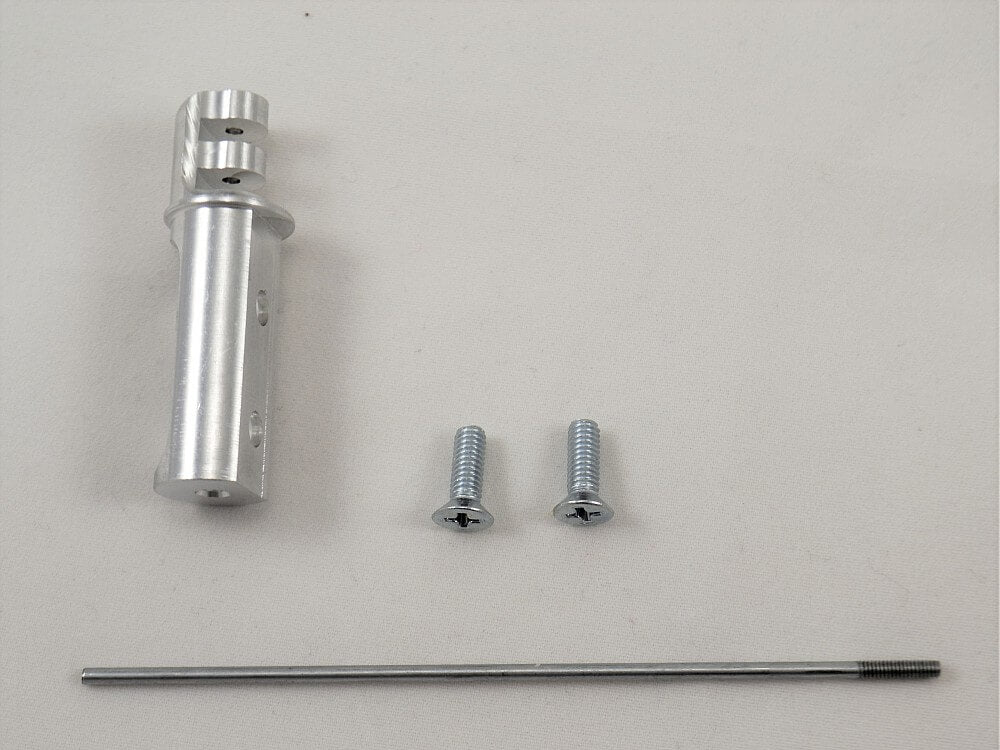

Scope of delivery:
-
Tow release
-
2x M4 countersunk screws
-
Release pin
