SAFETY-SWITCH 12 HV TwinBatt (Version with 2 Uni receiver connections) # 85009

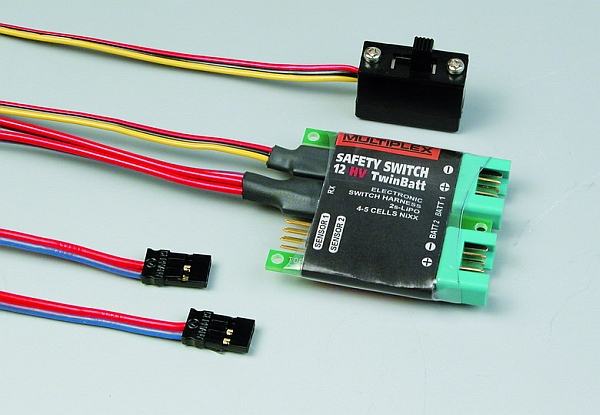

SAFETY-SWITCH 12HV TwinBatt #85009
The MULTIPLEX SAFETY-SWITCH High Voltage (HV) switch cables are the solution for safety-conscious model pilots. The receiver battery (4 - 6 cells NiXX or 2S LiXX) is connected directly to the SAFETY-SWITCH board. The switching function is handled by vibration-proof and fail-safe high-power FETs, which are characterized by very low internal resistance and thus very low power losses. A conventional mechanical slide switch serves as the ON/OFF switching element. The operating status is very easy to see. Should a defect occur in the slide switch or its connecting cables, the electronics ensure that the last active switching state (ON/OFF) is maintained. This means that even if the switch cable vibrates loose during flight, the receiver circuit remains switched on and thus the receiver system remains functional. With telemetry-capable M-LINK receivers, it is possible to monitor both receiver battery voltages on the transmitter in the TwinBatt models.
SAFETY-SWITCH 12HV TwinBatt:
Both switch cables also have a built-in battery switch and can therefore be used for a dual power supply. If one battery fails, the second battery takes over the power supply of the receiver system.
M-LINK and SAFETY-SWITCH:
The SAFETY-SWITCH TwinBatt variants each have two sensor connections for the voltage sensor (# 8 5400). After activating the second measuring channel on the sensor and a second sensor cable (# 8 5056), the two receiver battery voltages can be transmitted and displayed separately on the transmitter.
The advantages:
- Built-in battery switch
- Max. continuous current 12 A
- High-current capable, multi-pole M6 receiver battery connectors on the input side
- 2 UNI connection cables (for connection to the "Batt" socket and a free servo slot on the receiver)
- SAFETY-SWITCH 12HV TwinBatt (M6) also with M6 plug system on the receiver side for direct connection to MULTIPLEX RX-9/12/16-DR pro M-LINK receivers or M-PCM RX-9/12-SYNTH DS M-PCM receivers
- 2 sensor connections for monitoring both receiver battery voltages on the transmitter
- Gold-plated, high-quality connectors and large cable cross-sections for maximum contact reliability and minimum contact resistance
