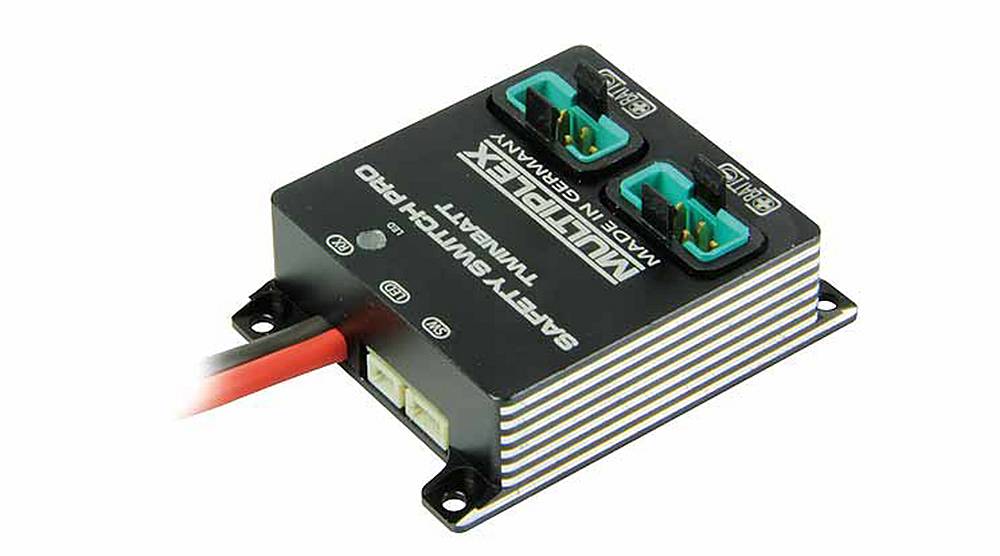

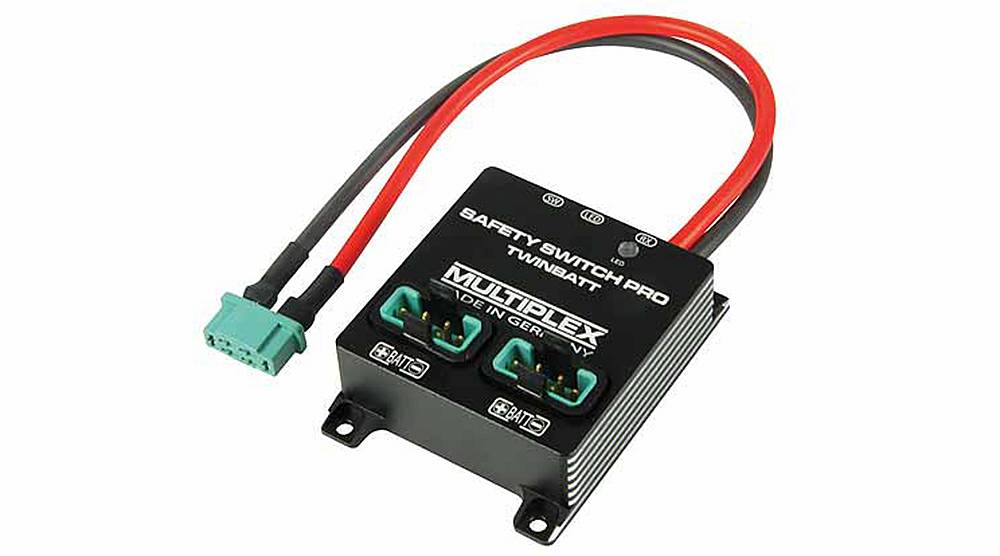

Safety Switch PRO, Twinbatt (with MPX connector), Multiplex # 1-01747
Safety Switch PRO, Twinbatt (with MPX connector)
Multiplex # 1-01747
The safety magnetic switch M1-01784 is additionally required for switching on and off
High-voltage power supply (input voltage = output voltage)
- SMD technology, low-wear, vibration-resistant
- High-quality, gold-plated plug systems and large cable cross-sections
- High continuous current carrying capacity due to large-area cooling via the milled aluminum housing
- Low power loss due to "ideal" diodes simulated by FETs
Technical data:
- Input voltage: max. 9 volts
- Current: 35A
- Max. current: 60A
- Quiescent current: > 0.1A
- Receiver connection: 1x 2.5mm² MPX (200mm)
- Battery connection: 2x MPX M6 connector
- Dimensions: 46 x 44 x 18mm
- Weight: 55g
Scope of delivery:
- Safety Switch PRO Twinbatt UNI
- Mounting screws

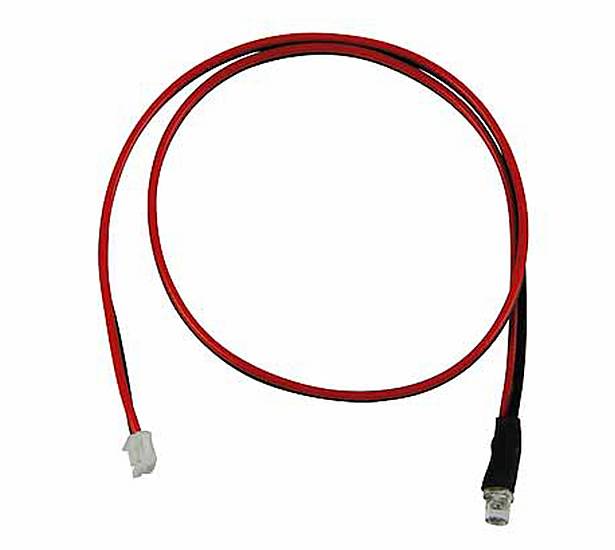

- LED cable (30cm)
- Trilingual instructions
The specified quiescent current flows when the connected safety switch is in the OFF position. Therefore, disconnect the receiver battery from the SAFETY-SWITCH when storing the model for extended periods! This way, you prevent potential deep discharge of the receiver battery.
