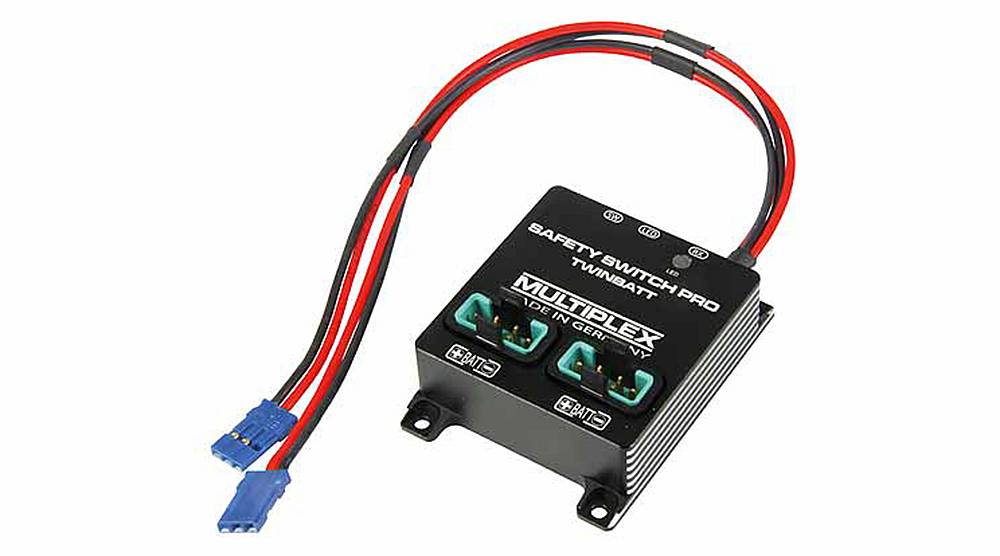

Safety Switch PRO, Twinbatt (with UNI-connector), Multiplex # 1-01746
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
Safety Switch PRO, Twinbatt (with UNI-connector), Multiplex # 1-01746
Safety Switch PRO, Twinbatt (with UNI connection)
Multiplex # 1-01746
For switching on and off, the M1-01784 safety magnetic switch is additionally required
High-voltage power supply (input voltage = output voltage)
- SMD technology, low wear, vibration-resistant
- High-quality, gold-plated plug systems and large cable cross-sections
- High continuous current capacity thanks to large-area cooling via the milled aluminum housing
- Low power loss due to "ideal" diodes simulated by FETs
Technical data:
- Input voltage: max. 9 volts
- Current: 15A
- Max. current: 30A
- Quiescent current: > 0.1A
- Receiver connection: 2x 0.5mm² UNI (200mm)
- Battery connection: 2x MPX M6 connectors
- Dimensions: 46 x 44 x 18mm
- Weight: 48g
Scope of delivery:
- Safety Switch PRO Twinbatt UNI
- Mounting screws

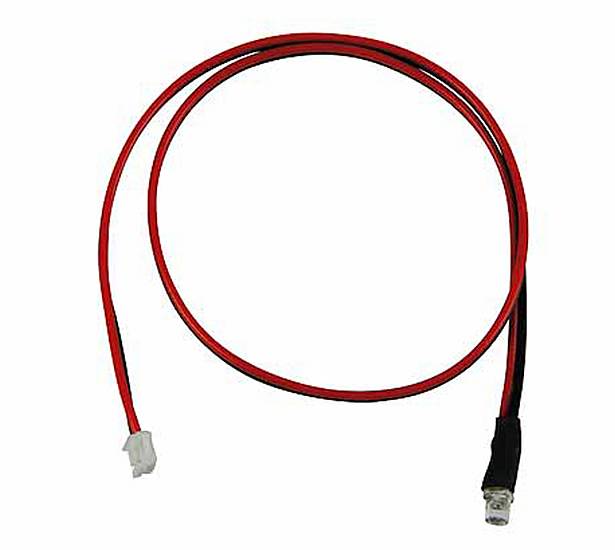

- LED cable (30cm)
- Trilingual instructions
The stated quiescent current flows when the connected safety switch is in the OFF position. Therefore, disconnect the receiver battery from the SAFETY-SWITCH if the model is stored for a longer period! This way, you prevent a
possible deep discharge of the receiver battery.
