Switch Module Multi Function SXM, D-Power # 3971

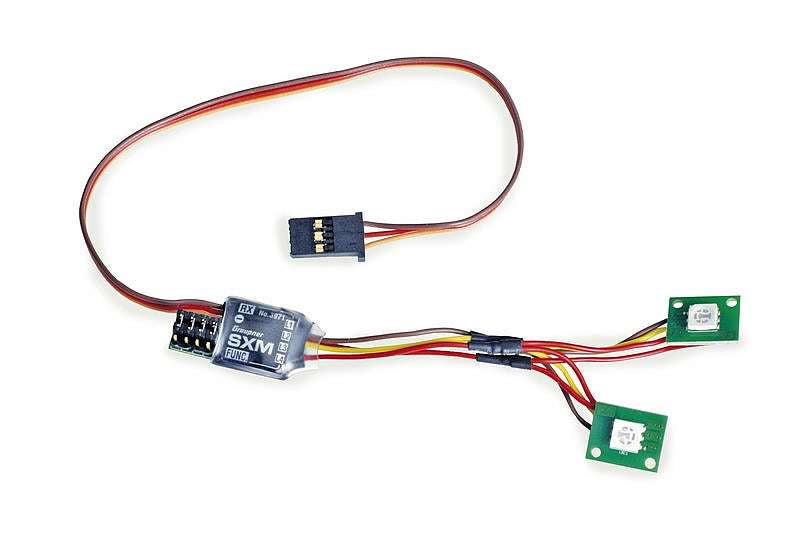

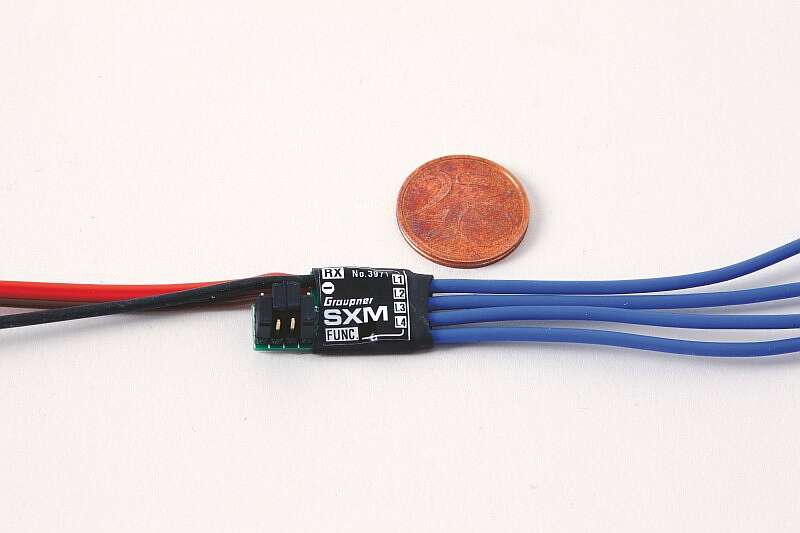

Switch Module Multi Function SXM
D-Power # 3971
This module is an absolute "all-rounder" in the area of switching functions and contains a wide variety of functions in one device. The switching module is connected to an output of the receiver; the functions are controlled and operated by means of the transmitter's stick or switch.
Four outputs can be controlled with one receiver channel! Three different functionalities can be assigned to the four outputs using jumpers.
Switching functions:
- On / Off (latching)
- Flashing light (1Hz) On / Off (latching)
- Momentary switch On / Off (only for output 2 and 4)
- Maximum switchable voltage: 5-cell LiPo batteries, 14-cell NiMH batteries, (21.5V)
- Designed for currents up to 4A per output
- Module powered via receiver battery up to max. 8.5V (2-cell LiPo batteries)
Technical data:
- Weight: 9 g
- Dimensions LxWxH in mm: 22 x 13 x 8 mm
