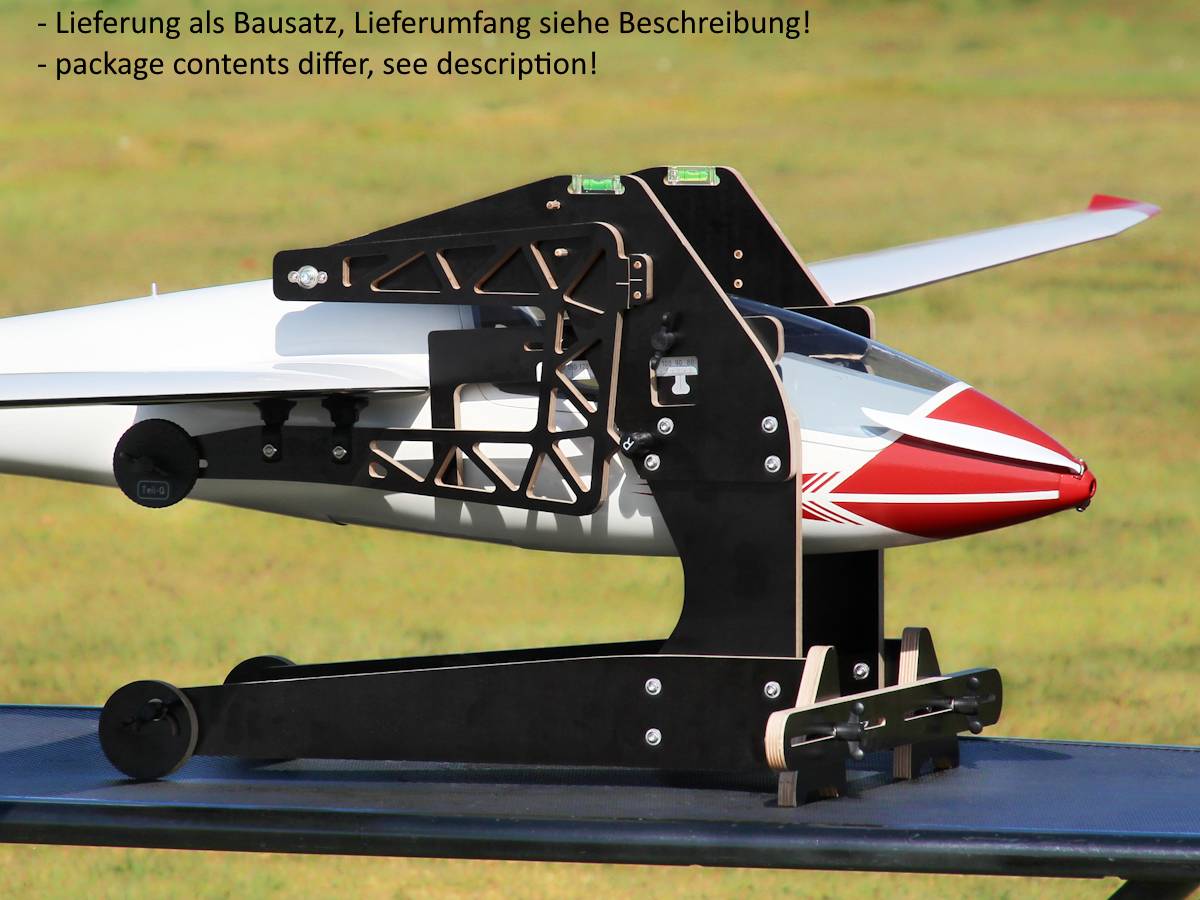

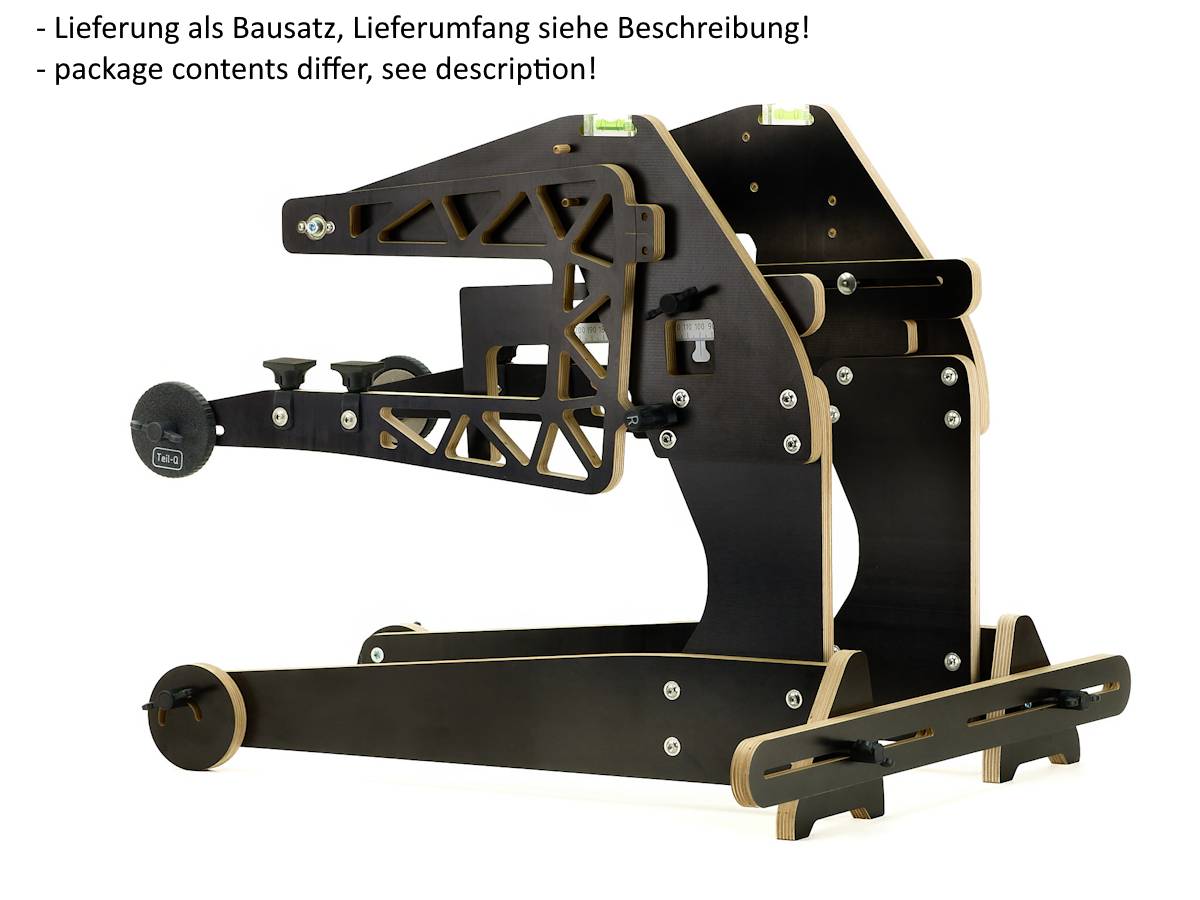

CG PRO, Black Edition, Part-Q #A20250100 The TEIL-Q CG Balancer for Model Airplanes - Now Even More Precise and Versatile!

Assembly Instructions

The newly developed CG balancer from Teil-Q sets new standards in precision, stability, and user-friendliness. Thanks to innovative technology and a well-thought-out design, it enables exact center of gravity determination for a wide range of model types – from small aerobatic models to large models with landing gear.

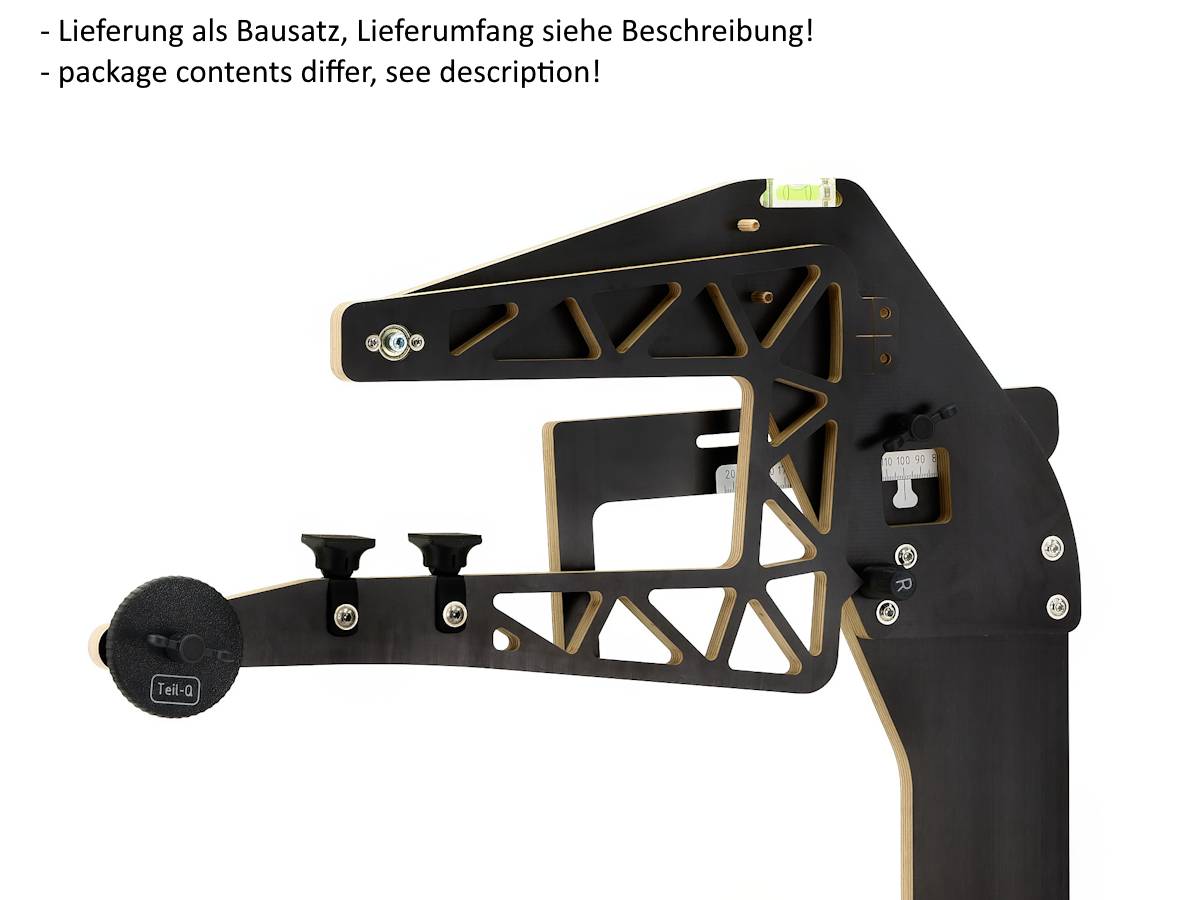

Double ball-bearing pivot point for maximum stability
The top-mounted, double ball-bearing pivot point ensures stable and precise alignment of the model, regardless of its geometry.

Adjustable, padded, and ball-bearing supports
The generously sized, softly padded supports optimally adapt to the wing contour thanks to ball bearings and protect against damage.

Perfect adjustment with integrated spirit level and eccentric feet
A built-in spirit level and finely adjustable eccentric feet ensure exact horizontal alignment and maximum measurement accuracy.

Fixable rocker for easy model placement
The rocker can be locked to safely and conveniently place the model – ideal for models with delicate structures or heavy weight.

Defined measurement and weighing position
The measuring stop does not affect the actual weighing process. Stops limit the inclination of the rocker to only 3° to allow for controlled weighing.

Suitable for models with landing gear
Thanks to its flexible design, the balancer can also be used without problems for models with landing gear.

Large measuring range
The center of gravity can be determined for models with a CG range of 45 to 195 mm.

Available in three sizes & flexibly adjustable
The CG balancer is available in three different sizes and can be individually adjusted in width to optimally support a wide variety of models.

Practical dismountability for easy storage
The CG balancer can be easily disassembled for space-saving storage. Thanks to the well-thought-out plug-in system, it can be effortlessly dismantled into individual parts without losing stability or precision. A special disassembly tool, included in the scope of delivery, ensures effortless dismantling. Ideal for safely and compactly storing the balancer when not in use.

High-quality materials for maximum stability
The CG balancer is made of precisely CNC-milled 15 mm thick birch multiplex, which is known for its high strength and durability. A 220 g/m² thick phenolic resin coating provides additional protection, making the surface particularly resistant to moisture and wear. The plastic parts are made of robust PETG, which is characterized by high impact resistance and temperature resistance. In addition, only high-quality small parts are used to ensure maximum stability and a long service life.

This new CG balancer is the perfect choice for model builders who value maximum precision, flexibility, and ease of use.

Technical data:

• Dimensions approx. 64 x 65 x 49 cm without ears (LxWxH)
• Height of model supports 31 cm
• Model width adjustable with connector from 2 to 41.5 cm
• maximum tilt angle 3°
• adjustable center of gravity from 45 to 195 mm
• maximum load of 25 kg
• up to 75 mm profile height

Scope of delivery:

CNC milled parts (unfinished and connected)
4 x wing screw
4 x wing nut
4 x pan head bolt
6 x flange head screw M6 x 25
4 x square nut M6
4 x cylinder head screw M6 x 25
32 x flange head screw M6 x 12
16 x threaded insert M6 x 20
8 x threaded sleeves M6
2 x dowel pin M6 x 20
2 x hammer nuts slot 10 M6
4 x wooden dowel 6 x 20
10 x wooden dowel 6 x 30
4 x ball bearing 626 ZZ
4 x washer M3 large
4 x washer M6 small
2 x washer M6 large
4 x self-tapping screw pan head 2.9 x 9.5
4 x self-tapping screw countersunk head 2.9 x 25
2 x spirit level
6 x washer M20
1 x illustrated assembly instructions
