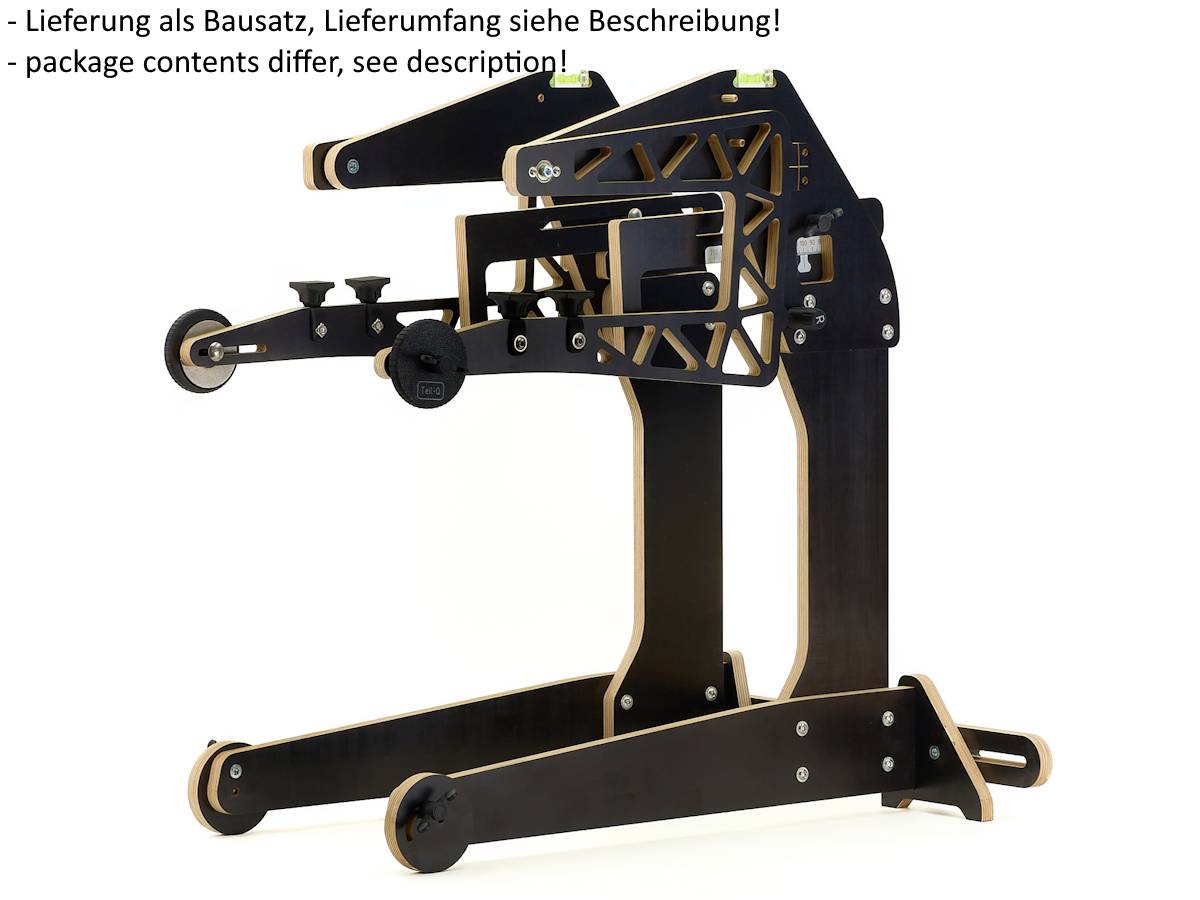

CG PRO PLUS CG Scale, Black Edition, Teil-Q #A20250200 The TEIL-Q CG scale for model aircraft – now even more precise and versatile!

Assembly Instructions

The newly developed CG scale by Teil-Q sets new standards in precision, stability, and user-friendliness. Thanks to innovative technology and a well-thought-out design, it enables exact center of gravity determination for a wide range of model types – from small aerobatic models to large models with landing gear.

Double ball-bearing pivot point for maximum stability
The overhead, double ball-bearing pivot point ensures stable and precise alignment of the model, regardless of its geometry.

Adjustable, padded, and ball-bearing supports
The generously sized, softly padded supports adapt optimally to the wing contour thanks to ball bearings and protect against damage.

Perfect adjustment with integrated spirit level and eccentric feet
A built-in spirit level and finely adjustable eccentric feet ensure exact horizontal alignment and maximum measurement accuracy.

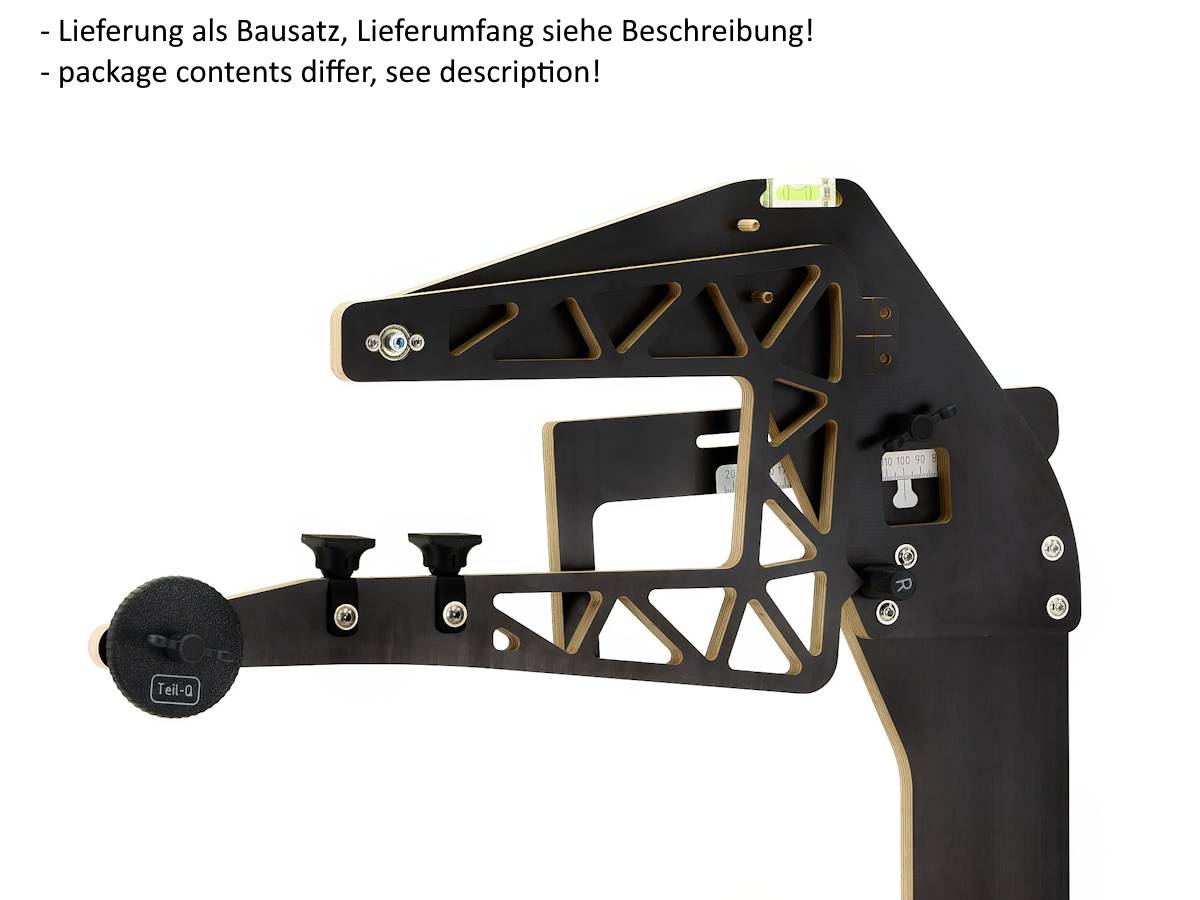

Lockable rocker for easy model placement
The rocker can be locked to safely and comfortably place the model – ideal for models with delicate structures or high weight.

Defined measuring and balancing position
The measuring stop does not affect the actual weighing process. Stops limit the inclination of the rocker to only 3°, allowing for controlled balancing.

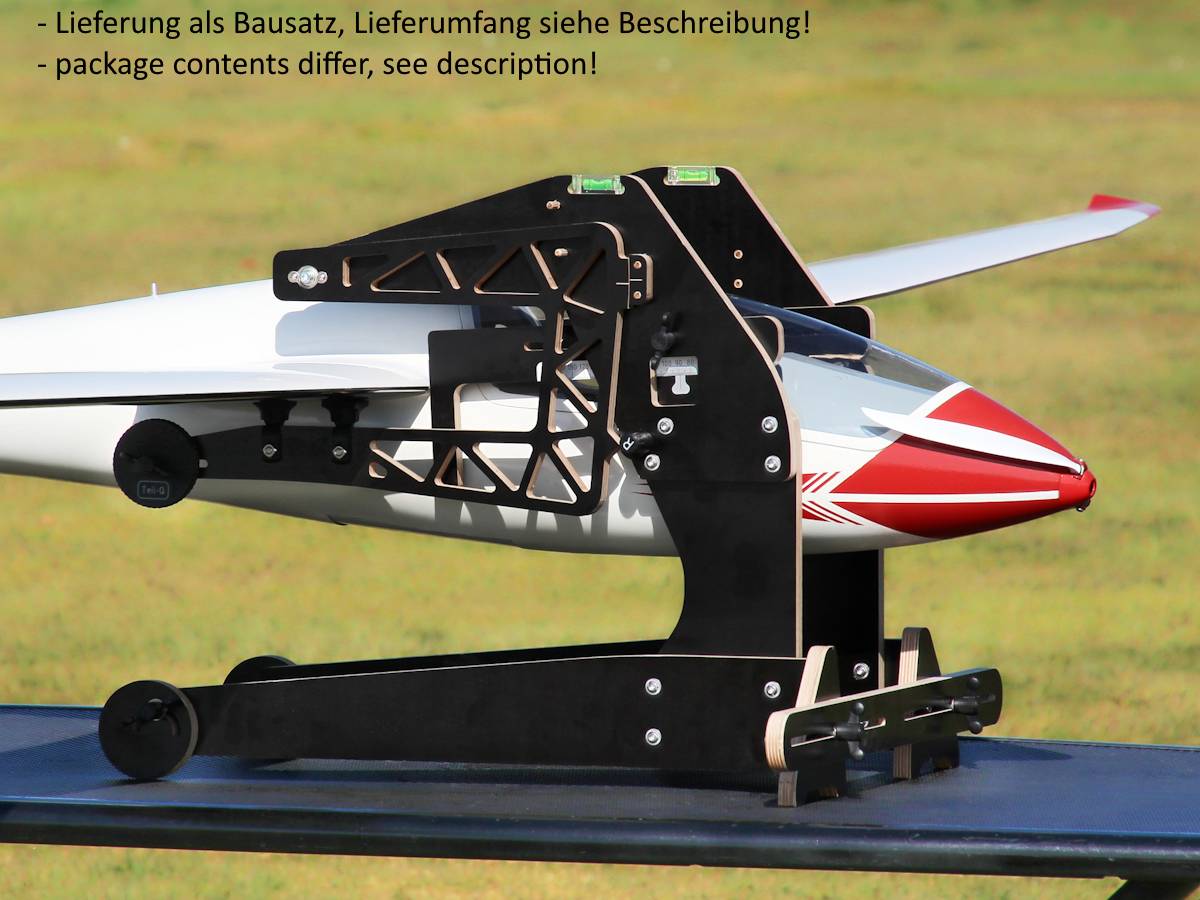

Suitable for models with landing gear
Thanks to its flexible design, the scale can also be easily used for models with landing gear.

Large measuring range
The center of gravity can be determined for models with a CG range of 45 to 195 mm.

Available in three sizes & flexibly adaptable
The CG scale is available in three different sizes and can be individually adjusted in width to optimally support a wide variety of models.

Practical dismountability for easy storage
The CG scale can be easily dismantled for space-saving storage. Thanks to the clever plug-in system, it can be effortlessly disassembled into individual parts without losing stability or precision. A special disassembly tool, included in the scope of delivery, ensures effortless dismantling. Ideal for safe and compact storage of the scale when not in use.

High-quality materials for maximum stability
The CG scale is made of precisely CNC-milled 15 mm thick birch multiplex, known for its high strength and durability. A 220 g/m² thick phenolic resin coating provides additional protection, making the surface particularly resistant to moisture and wear. The plastic parts are made of robust PETG, which is characterized by high impact resistance and temperature stability. In addition, only high-quality small parts are used to ensure maximum stability and a long service life.

This new CG scale is the perfect choice for model builders who value maximum precision, flexibility, and ease of use.

Technical Data:

• Dimensions approx. 64 x 65 x 65 cm without ears (LxWxH)
• Height of model supports 47 cm
• Model width adjustable with connector from 2 to 41.5 cm
• maximum tilt angle 3 °
• adjustable center of gravity from 45 to 195 mm
• maximum load of 25 kg
• up to 75 mm profile height

Scope of Delivery:

CNC milled parts (unfinished and connected)
4 x wing screws
4 x wing nuts
4 x pan head screws
6 x flange head screws M6 x 25
4 x square nuts M6
4 x cylinder head screws M6 x 25
32 x flange head screws M6 x 12
16 x threaded sleeves M6 x 20
8 x threaded inserts M6
2 x dowel pins M6 x 20
2 x hammer nuts slot 10 M6
4 x wooden dowels 6 x 20
10 x wooden dowels 6 x 30
4 x ball bearings 626 ZZ
4 x washers M3 large
4 x washers M6 small
2 x washers M6 large
4 x self-tapping screws pan head 2.9 x 9.5
4 x self-tapping screws countersunk head 2.9 x 25
2 x spirit levels
6 x washers M20
1 x illustrated assembly instructions
