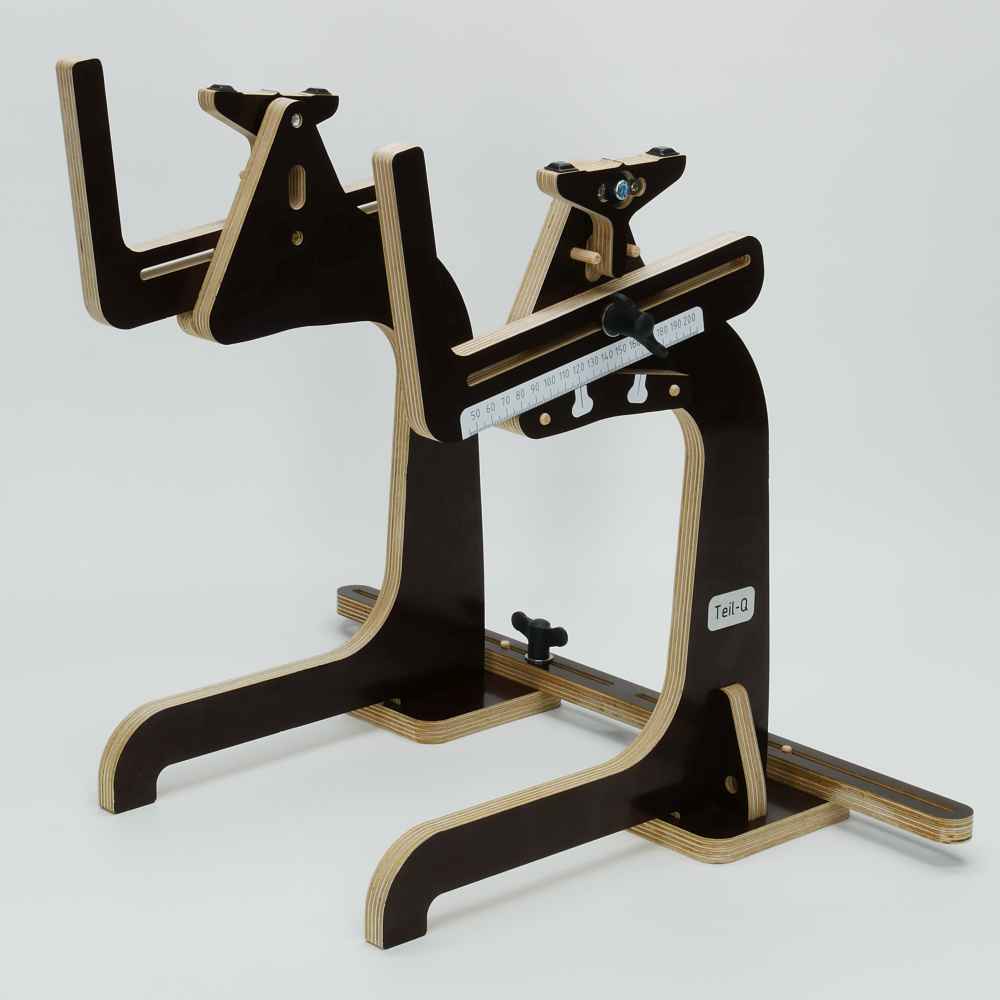

Center of Gravity Scale Size "L", Black Edition Part-Q # 20170150

The rocker of the center of gravity scale, on which the model rests, has stops and thus a maximum deflection of 10° in both directions. This prevents the model from falling off the rocker, even if, for example, the model's battery is removed.
Furthermore, the wing stop was arranged with a 10° incline. When the rocker is in the front end position (10°) at the stop, the model can be placed. In the neutral position during balancing, the wing stop no longer interferes.
The engraved scale allows the center of gravity to be set with millimeter precision. The wooden parts are CNC milled from high-quality and sturdy 15 mm birch plywood. The plug-in system makes the center of gravity scale additionally stable and therefore easy to assemble. The wooden parts are covered with self-adhesive rubber at the support points so that the model is held securely and not damaged.

Operation:

• 1: Set the specified center of gravity for your model using the scale.
• 2: Bring the rocker to the front stop position. It now has exactly 10° deflection. In this position, the stop can be used as a setting.
• 3: Your model will no longer slip due to the rubber pad. If it does, you can always check the correct position by moving the rocker to the front stop.
• The model can now be balanced. Also check the light gap at the base of the rocker. Setting the center of gravity at the front stop of the rocker has the advantage that the wing stop no longer interferes in the neutral position.
• 4: The rear stop serves to prevent the model from falling off if, for example, the battery is completely removed.

Technical data:

• Rocker height ball-bearing: 400 mm
• Max. model width with connector: 490 mm
• Max. model weight: 25.1 kg
• Max. center of gravity position from leading edge: 200 mm
• Max. rocker angle: +/- 10°

Scope of delivery:

• CNC milled parts (unfinished and connected)
• 4 x M6 wing screws
• 2 x ball bearings 626 2RS
• 2 x bearing pressing aids
• 2 x M6 x 25 screws
• 4 x 2.9 x 9.5 sheet metal screws
• 6 x threaded inserts with hexagon socket for easy assembly
• 6 x large M6 washers
• 4 x large M3 washers
• 8 x small M6 washers
• 10 x wooden dowels
• 4 x rubber pads
• 2 x engraved Teil-Q logo
• 2 x engraved scales
• 4 x engraved pointers
• 1 x illustrated assembly and operating instructions
