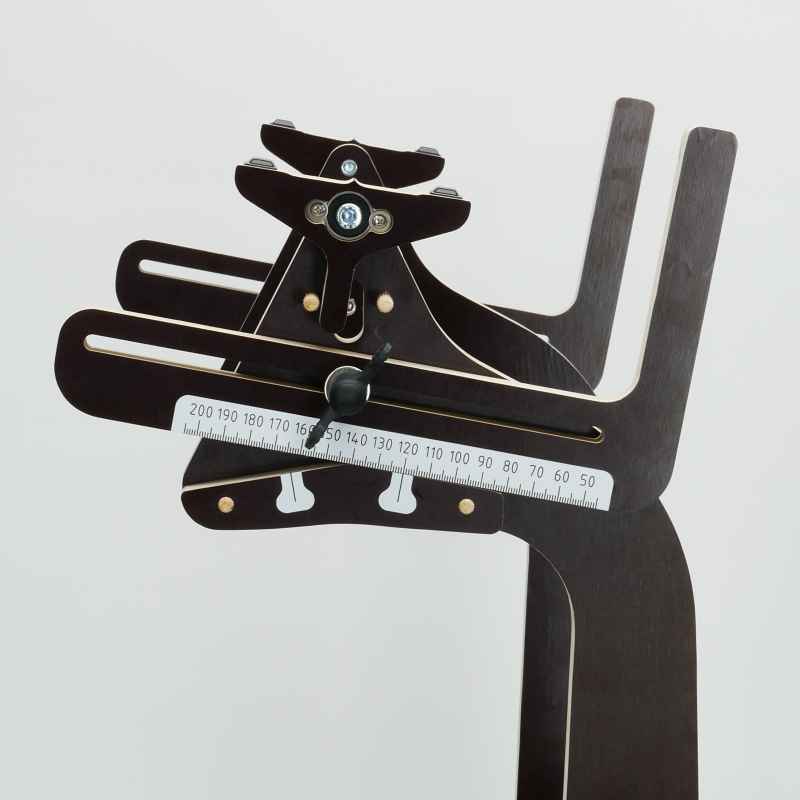

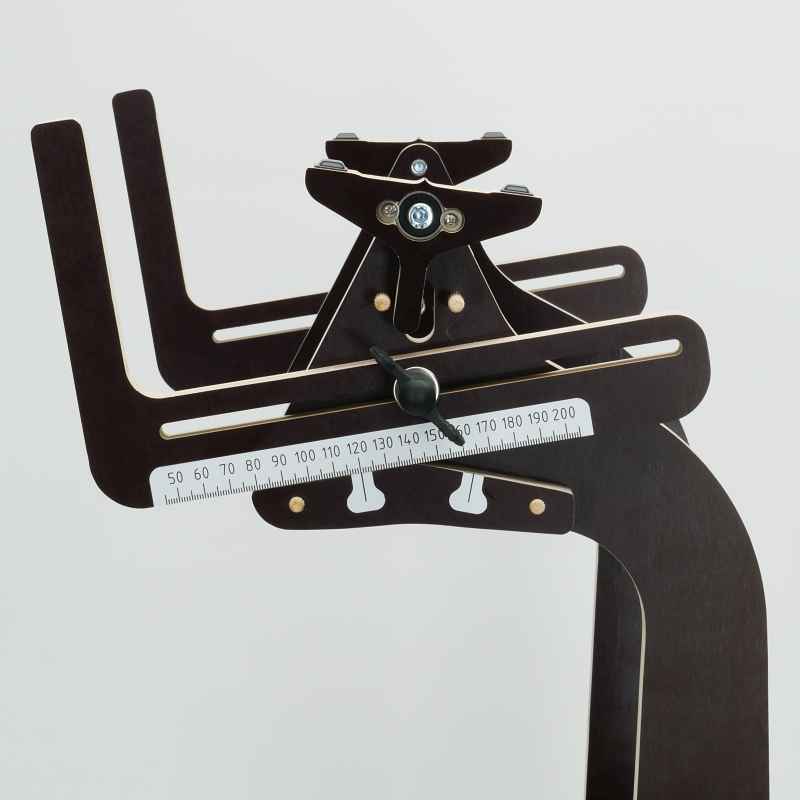

Center of Gravity Balancer Size "XL", Black Edition Part-Q # 20170250

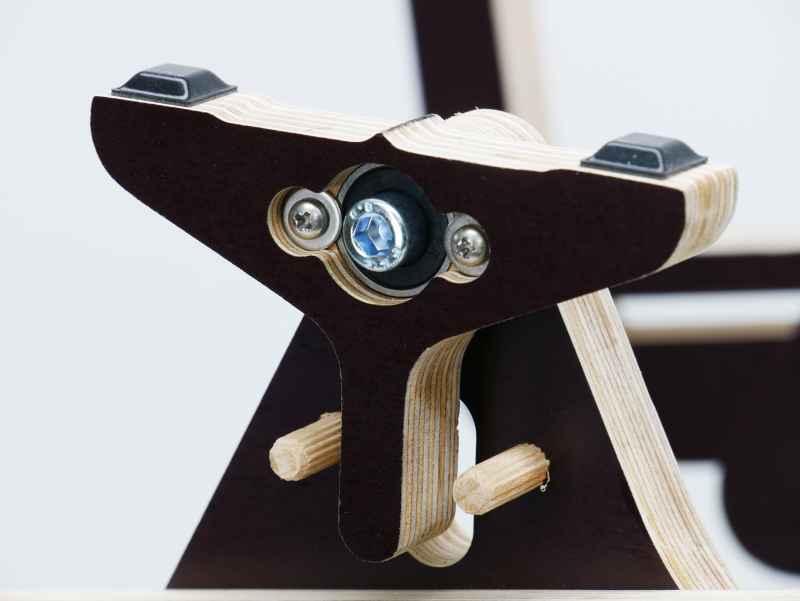

The rocker of the center of gravity balancer on which the model rests has stops and thus a maximum deflection of 10° in both directions. This means the model can no longer fall off the rocker, even if, for example, the model's battery is removed.
Furthermore, the wing stop was arranged with a 10° slant. When the rocker is in the forward end position (10°) against the stop, the model can be placed. In the neutral position during balancing, the wing stop no longer interferes.

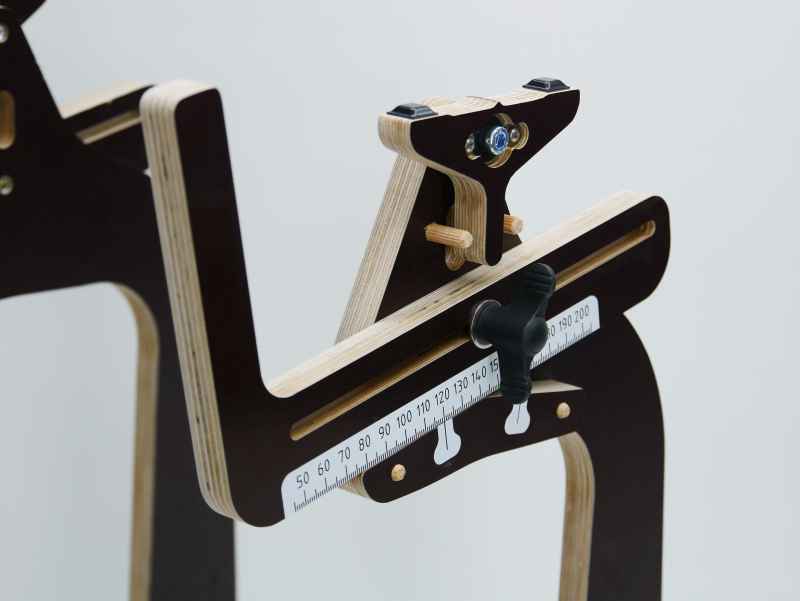

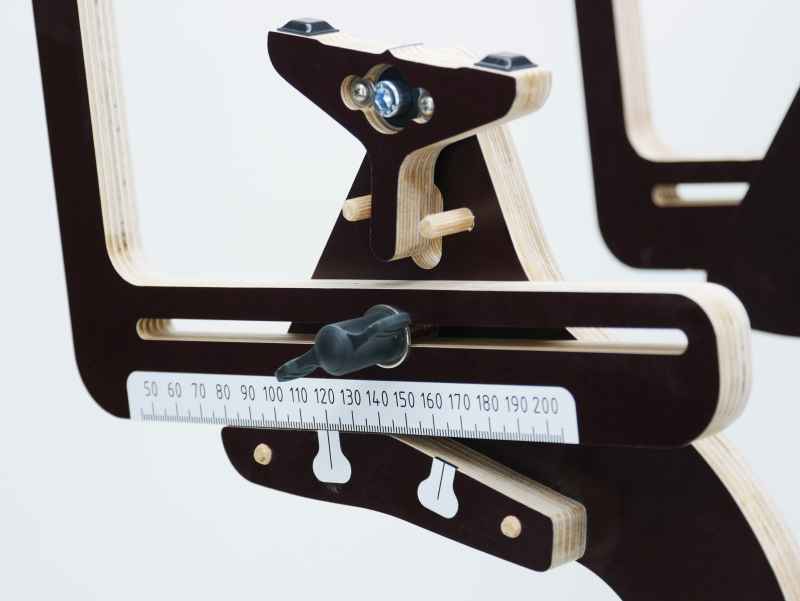

With the engraved scale, the center of gravity can be set to the nearest millimeter. The wooden parts are CNC milled from high-quality and stable 15 mm birch multiplex. The plug-in system makes the center of gravity balancer additionally stable and thus easy to assemble. The wooden parts are glued with self-adhesive rubber at the support points so that the model is securely held and not damaged.

Operation:

• 1: Set the specified center of gravity for your model using the scale.
• 2: Bring the rocker into the front stop position. Now it has exactly 10° deflection. In this position, the stop can be used as a setting.
• 3: Your model will now no longer slip due due to the rubber pad. If it does, you can always check the correct position by moving the rocker to the front stop.
• The model can now be balanced. Also check the light gap at the base of the rocker. Setting the center of gravity in the front stop of the rocker has the advantage that in the neutral position the wing stop no longer interferes.
• 4: The rear stop serves to prevent the model from falling off if, for example, the battery is completely removed.

Technical data:

• Rocker height with ball bearings: 500 mm
• Max. model width with connector: 490 mm
• Max. model weight: 25.1 kg
• Max. center of gravity position from leading edge: 200 mm
• Max rocker angle: +/- 10°

Scope of delivery:

• CNC milled parts (unfinished and connected)
• 4 x M6 wing screw
• 2 x ball bearing 626 2RS
• 2 x ball bearing press-in aid
• 2 x M6 x 25 screw
• 4 x 2.9 x 9.5 self-tapping screw
• 6 x threaded inserts with hexagon socket for easy assembly
• 6 x M6 large washers
• 4 x M3 large washers
• 8 x M6 small washers
• 10 x wooden dowels
• 1 x self-adhesive neoprene rubber
• 2 x engraved Part-Q logo
• 2 x engraved scales
• 2 x engraved pointers
• 1 x illustrated assembly and operating instructions

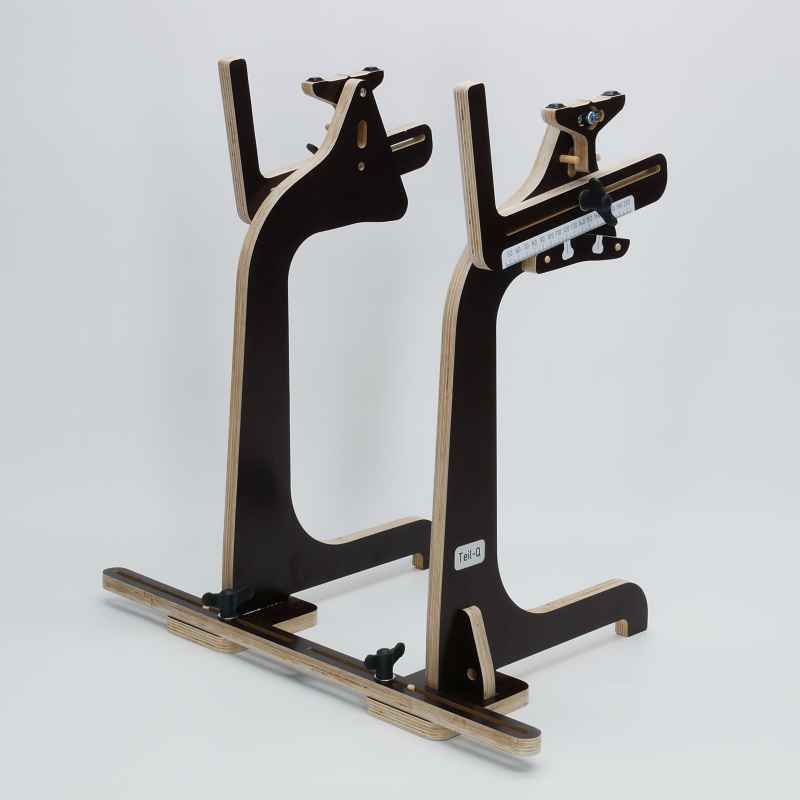

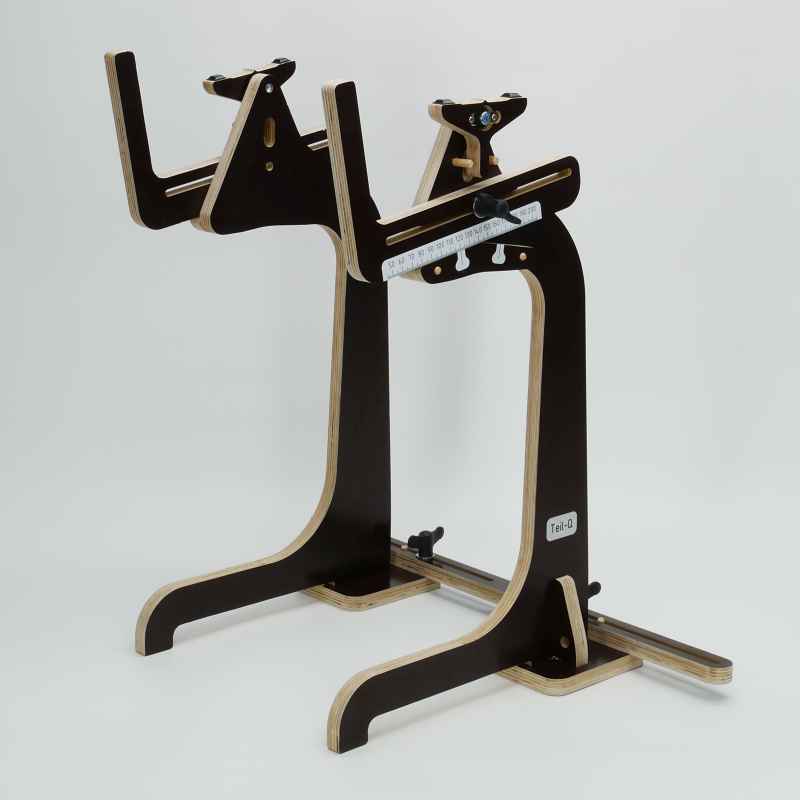

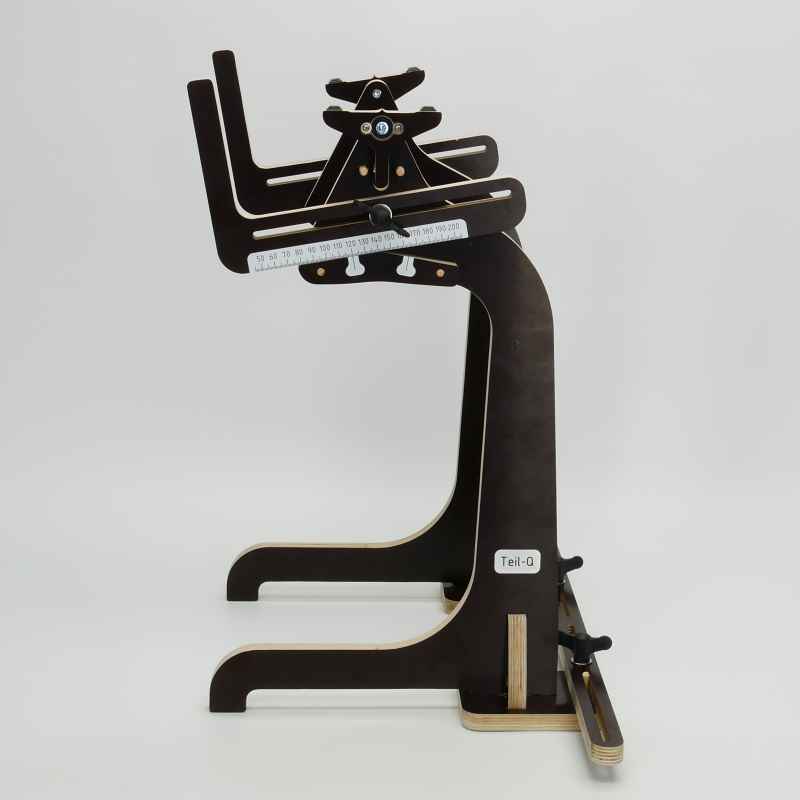

The model stands are supplied as a kit.
