Rope guide adjustable, 15mm servo, Wemo # SA-H-15

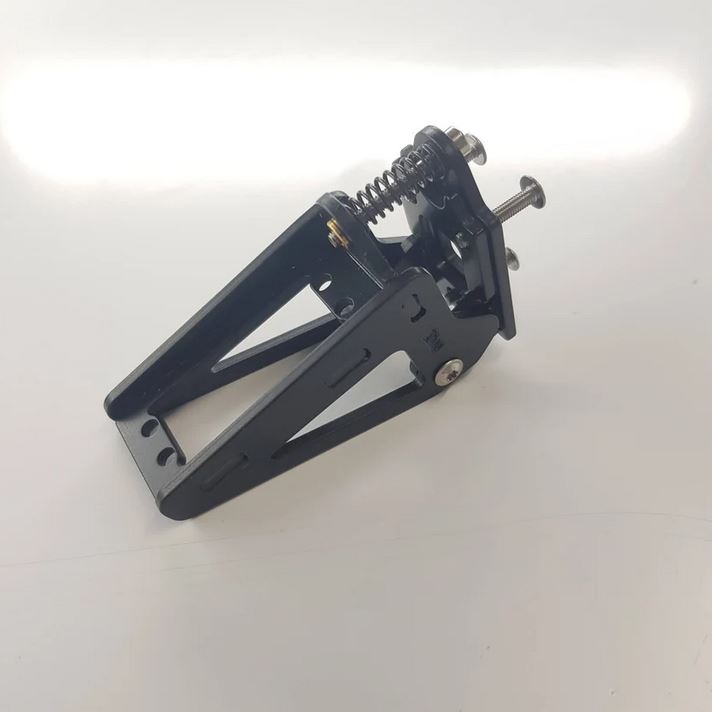

Adjustable Bowden Cable Control, 15mm Servo
The Bowden cable control is designed for a 15mm servo so that it can be screwed to the rear bulkhead. Three M3 screws are included for this purpose, which are screwed through the bulkhead into the T-nuts of the mounting plate.
A central cylinder head screw (M3) allows the swivel unit with the servo to be tilted forwards or backwards. This makes it very easy to tension or loosen the cables leading to the rudder. The annoying and fiddly adjustment via solder sleeves and clevises is no longer necessary.
Once the cables have been installed correctly, it is possible to react to cables that are too loose or too tight in seconds.
The mount can be completely hidden behind the bulkhead.
A spring holds the swivel unit under tension, so the cylinder head screw cannot loosen or move. This ensures that the setting is maintained.
The adjustment range is 10 mm, so if the swivel unit is in the zero position, it can be adjusted 5 mm forwards and 5 mm backwards. This can be influenced by adjusting the cables.
TECHNOLOGY:
- made of 2.5 mm black GRP
- nested and glued
- extremely stable construction
- total adjustment range 10 mm
- 3 M3 T-nuts for screwing to the bulkhead
- incl. spring and M4 cylinder head screw for adjusting the travel
- incl. 4 x M3 screws and lock nuts for the servo
- unit weight 36.5 grams
