Kavan GO-1006MG Servo, 20x8x17.8 mm, 4.8-8.4V
0.052 s/60°, 30Ncm, # KAV20.1006MG

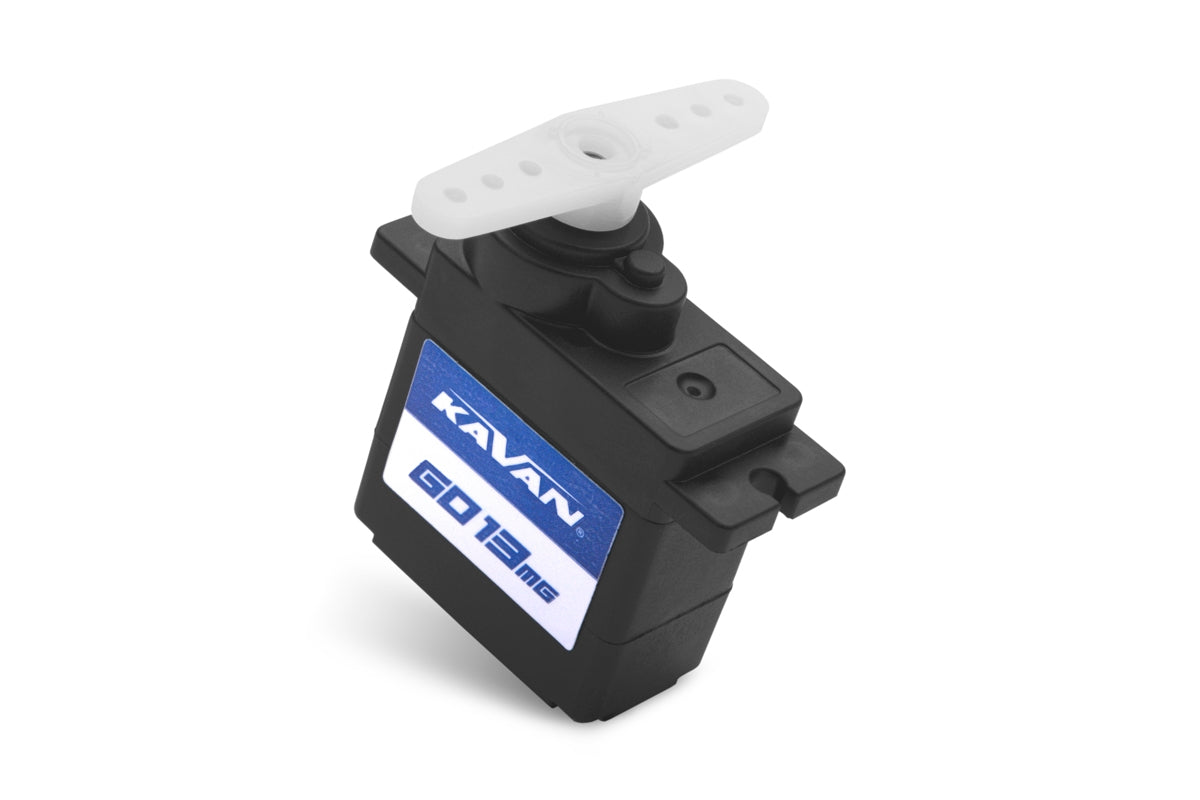

Very fast and powerful programmable digital nano servo with titanium gears and single ball-bearing output shaft, designed for use in small RC aircraft models, micro helicopters, Mini-Z and similar 1:18-1:28 RC cars, etc. The servo is housed in an aluminum case, ensuring perfect cooling even under high loads.

With the USB programmer/interface for GO Servos and the PC operating software, you can program a variety of servo parameters.

Very fast and powerful programmable digital nano servo with titanium gears and single ball-bearing output shaft, designed for use in small RC aircraft models, micro helicopters, Mini-Z and similar 1:18-1:28 RC cars, etc. The servo is housed in an aluminum case, ensuring perfect cooling even under high loads.

With the USB programmer/interface for GO Servos and the PC operating software, you can program a variety of servo parameters.

Programmable Functions

• Travel: Used to set the maximum size of servo throws. The default setting is approx. 120° for the normal range of control pulse widths (900~2100 µs); approx. 180° for the maximum permissible range of control pulse widths (500~2500 µs).
• Servo Neutral Position: Used to set the servo's neutral (center) position.
• Damping: Sets the characteristic of the servo's behavior when stopping its movement.
• Output Power: Sets the servo's output power. The higher the value, the faster the servo and the higher the force – of course, current consumption is proportionally higher. Range: 39.2~100%
• Sensitivity: Sets the servo's sensitivity (deadband). The higher the value, the narrower the deadband – the servo moves only when the change in control signal width is greater than the deadband. If you set the sensitivity value too high, the servo may oscillate in some applications. Range: Ultra High (Deadband approx. 1 µs) – High (approx. 2 µs) – Medium (approx. 3 µs) – Low (approx. 4 µs)
• Soft Start: Turns the soft start function on/off. This function prevents the servo from abruptly moving to the operating position after connecting to the power supply, thereby reducing the risk of damaging its gears.
• Servo Reverse: Reverses the servo throws.
• FUTABA SR Mode: For use only with channels of FUTABA RC sets operating in SR mode. Do not enable this option if you are using a different FUTABA RC set setup or an RC set from another brand.
• SANWA SSR Mode: For use only with channels of SANWA RC sets operating in SSR mode. Do not enable this option if you are using a different SANWA RC set setup or an RC set from another brand.
• Fail-safe: If the receiver's control signal completely fails or the servo cannot correctly recognize the signal (e.g., due to interference), the servo can enter one of three emergency modes:
• (a) Free: Fail-safe is off.
• (b) Hold Position: The servo maintains the position corresponding to the last correctly received signal.
• (c) Return to Neutral: The servo returns to the neutral position (pulse width 1500 µs).
• Overload Protection: Activates or deactivates servo overload protection in three stages – once the overload lasts for a preset time (in seconds), the servo output power is limited to the corresponding preset value (in % of maximum power).
• Reset: Restores the factory settings of the connected servo.
