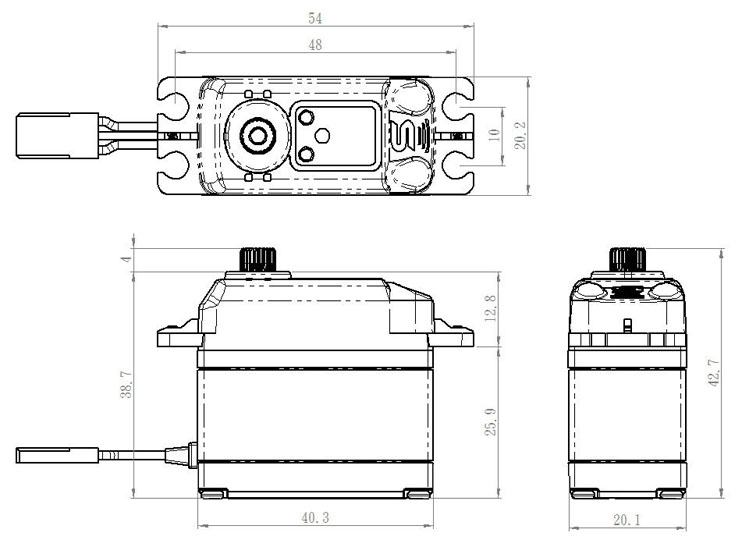

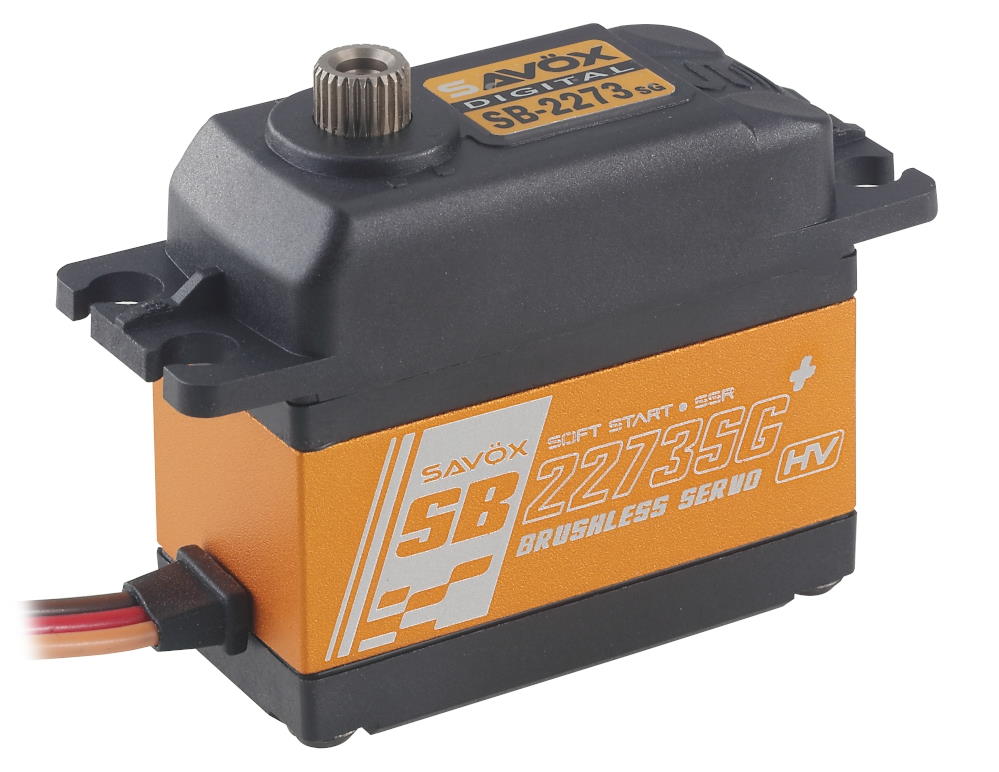

Savox SB-2273SG+ HV Digital Servo, 40.3x20.2x38.7mm, 69g, 350Ncm/0.095sec @8.4V
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Savox SB-2273SG+ HV Digital Servo, 40.3x20.2x38.7mm, 69g, 350Ncm/0.095sec @8.4V
Savöx SB-2273SG+ HV Digital, 40.3x20.2x38.7mm, 69g, 350Ncm/0.095sec @8.4V
The Savöx SB-2273SG+ is a powerful brushless standard-size servo that is very well suited for use in aircraft models. Of course, it can also be used in RC cars. Use as a swashplate servo for scale helicopters up to the 700 class is another option.
The new + version of the well-known Savöx SB-2273SG servo differs minimally from its predecessor in terms of appearance and technology. A soft start, which slowly moves the servo to the starting position when switched on, and the Sanwa SSR mode distinguish the + version.
The technical data of the servo leaves nothing to be desired: 0.105/0.095 sec/60 degrees and 30/35 kgcm at 7.4 / 8.4 volts
Control frequency up to 333Hz, center pulse 1520us
Like all Savöx HV servos, the SB-2273SG+ can of course be operated with up to 8.4V!
Scope of delivery: Servo incl. servo arm and mounting screws
