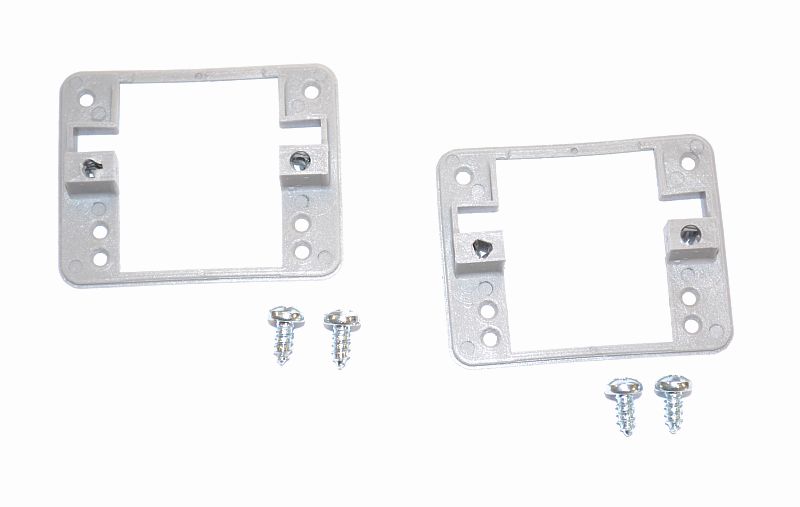

Servo frame for Graupner servo DES-427/428, D-Power DS140, pair (for 2 servos)
Flush Mount Frame for Graupner Servo DES 427BB, DES 428BB MG, and Hyperion HP-DS09-AMD
(Servo not included!)

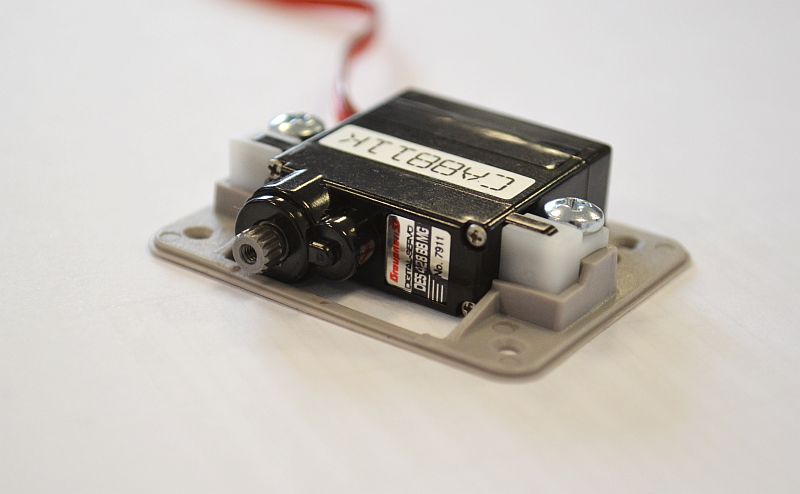

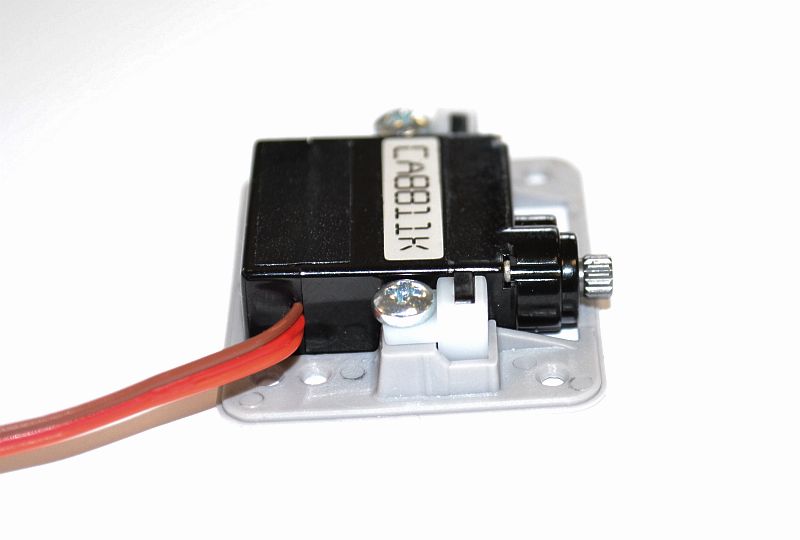

This mounting system stands out due to its high precision fit and low profile. The frame has the same thickness as the servo, so its use does not impede an aerodynamically perfect rudder linkage. The adapter pieces fit precisely into the holes on the servo housing and secure the servo in the frame with two special screws. The frame itself is firmly glued to the wing shell, while the servo can be installed or removed by simply loosening two screws. When gluing in the servo frame, the servo must be screwed into the frame to prevent the frame from bending. To avoid the servo becoming glued to the frame (surface), please treat it with release wax.
Technical Data:
Outer dimensions: 41x33mm
Weight per piece: approx. 1.2 g
The suitable servo adapters are included with the original servo accessories.
The following servos fit into the frame:
- Graupner DES 427 BB, Graupner DES 428 BB MG
- Hyperion HP-DS09-AMD
