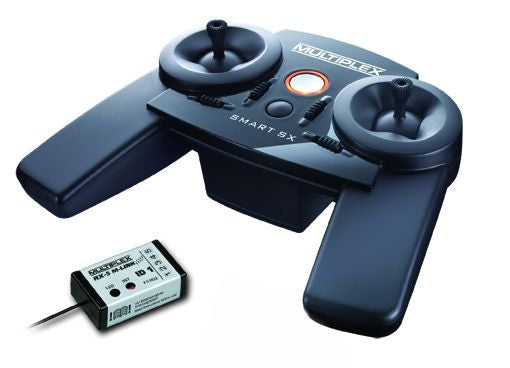

Smart SX M-Link Set (Mode 1+3)
Multiplex # 15300

The SMART SX M-LINK is a compact and intelligent 6-channel beginner remote control with a "Concept for the future!". With astonishing and partly patented features:

• Intelligent, patented model recognition
• IOAT: new, patented antenna technology: transmission range up to 2000 meters under optimal environmental conditions; optimized transmission direction (no radio waves backward); antenna integrated into the housing
• Implementation of almost all RC models on the market possible
• 150 models can be operated simultaneously without interference
• Long operating time up to 25 h
• The transmitter recognizes the respective model via the M-LINK ID receiver and activates the corresponding setting from its considerable model memory (30).

With the proven 2.4 GHz M-LINK transmission system, the full range is certainly available. Of course, the SMART SX can also be operated with any M-LINK receiver. All compatible MULTIPLEX ELAPOR® models from RR+ to RTF are pre-programmed ex works. Due to the simple operation of the transmitter, almost any other model, from a wide variety of manufacturers, can be set up very easily. Even the last fine trim of a model is saved. 5 fully proportional channels are available: elevator, rudder, motor plus two ailerons and an additional switched channel located on the trim switch for power.

Scope of delivery:

• Transmitter SMART SX M-LINK
• Receiver RX-5 M-LINK ID 1
• Batteries 3 x AA
• Instructions

Special features:

• Model recognition
• Digital Trim
• Long operating time up to 25 h (3 x AA)
• IOAT (Integrated Optimized Antenna Technology)
• Buzzer for acoustic feedback: trimming, dual-rate, mode selection, transmitter battery, range test
• Ergonomics: light, handy, optimized for handheld transmitters
• Updatable via integrated interface (USB cable and MPX Launcher)
• Student operation capable (wireless) with M-LINK teacher/student stick (for all teachable MPX transmitters with multifunction socket) or teacher/student module (PROFI TX)
