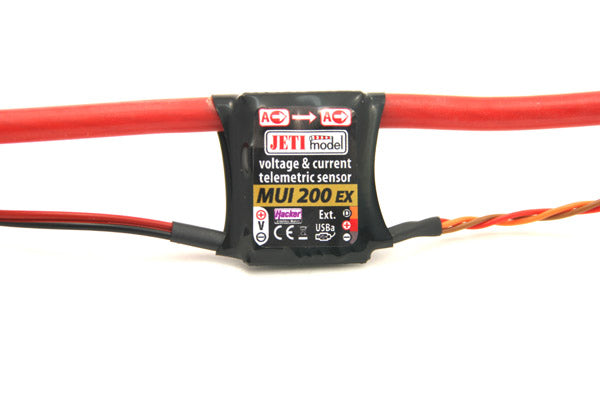

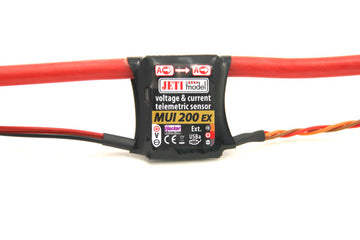

Voltage and Current Sensor Jeti MUI 200 (up to 200A) for Jeti Duplex 2.4EX System
Voltage and Current Sensor Jeti MUI200 (up to 200A) for Jeti Duplex 2.4EX System
The MUI sensors are designed for measuring voltage, current, and consumed battery capacity in the model. The JETIBOX terminal is used to display the measured values, and the DUPLEX 2.4GHz system is used for wireless transmission of information.
The DUPLEX system uses the 2.4GHz band for communication, which not only allows the transmission of remote control data to the model but also the transmission from the model back to the transmitter. The telemetry data obtained during operation is transmitted in real-time, and the current status of the measured values can be displayed on the LCD screen of the JETIBOX. The MUI telemetry sensors enable the measurement of voltages and currents in your model and transmit this information using the DUPLEX system (receiver and transmitter module). Thanks to their high current measurement accuracy, these sensors allow you to track the consumed capacity of the measured battery. In addition to the duration of current flow, the MUI unit also records the average and maximum current values. Furthermore, it provides accurate voltage values as well as their minimum and maximum values.
The JETIBOX terminal is used for setting parameters and displaying the measured values.
The MUI sensors allow setting an audible signal when set parameters are exceeded. This alarm message can be set for measuring the maximum current, minimum voltage, and the maximum permissible capacity consumption. The audible signal is generated by the transmitter module via a built-in sounder. Individual alarm messages are distinguished by assigning a Morse code letter. Audible signals for parameter overruns are also generated even when no JETIBOX is connected. If a JETIBOX is connected, the LCD display shows which parameter has been exceeded. In the event of multiple parameters being exceeded, the acoustic signals and LCD display indications alternate.
Technical data:
- Manufacturer: Jeti Model
- Operating voltage: 5 - 8.4 V
- Current consumption approx.: 32 mA
- Dimensions approx.: 29x19x11 mm
- Weight approx.: 26 grams
- Voltage measuring range: 0 - 60 V
- Current measuring range: 0 - 200 A
- Accuracy current/voltage: 1% / 0.1%
- Operating temperature: -10°C - 85°C
