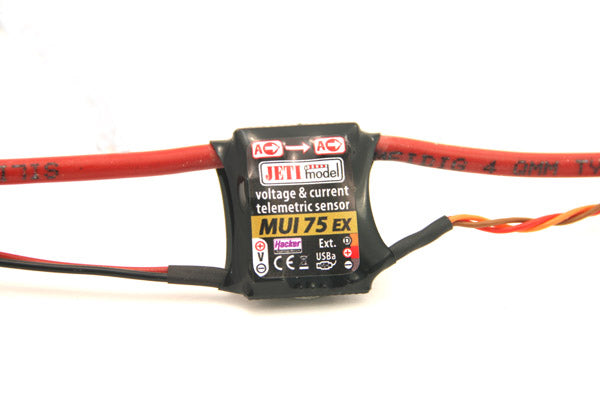

Voltage and Current Sensor Jeti MUI75 (up to 75A) for Jeti Duplex 2.4Ghz System

The MUI sensors are designed to measure voltages, currents, and consumed battery capacity in the model. The JETIBOX terminal is used to display the measured values, and the DUPLEX 2.4GHz system is used for wireless data transmission.
The DUPLEX system uses the 2.4GHz band for communication, which not only allows the transmission of remote control data to the model, but also the transmission from the model back to the transmitter. The telemetry data acquired during operation is transmitted in real-time, and the current status of the measured quantities can be displayed on the JETIBOX LCD screen. The MUI telemetry sensors allow the measurement of voltages and currents in your model and transmit this information using the DUPLEX system (receiver and transmitter module). Thanks to the high current measurement accuracy, these sensors allow you to track the consumed capacity of the measured battery. In addition to the duration of current flow, the MUI unit also records the average and maximum current values. Furthermore, it provides precise voltage values as well as their minimum and maximum values.
The JETIBOX terminal is used to set parameters and display the measured values.
The MUI sensors allow the setting of an audible signal when set parameters are exceeded. This alarm can be set for measuring maximum current, minimum voltage, and maximum permissible capacity consumption. The audible signal is generated by the transmitter module via a built-in sounder. Individual alarm messages are distinguished from each other by assigning a Morse code letter. Audible signals for parameter overruns are also generated even if no JETIBOX is connected. If a JETIBOX is connected, the LCD display indicates which parameter has been exceeded. In the event of multiple parameters being exceeded, the acoustic signals and LCD display indications alternate.

Technical Data:

• Manufacturer: Jeti Model
• Operating voltage: 5 - 8.4 V
• Current consumption approx.: 32 mA
• Dimensions approx.: 27x19x11 mm
• Weight approx.: 15 grams
• Voltage measurement range: 0 - 60 V
• Current measurement range: 0 - 75 A
• Accuracy: Current/Voltage 1% / 0.1%
• Operating temperature: -10°C - 85°C
