StandFix L", Black Edition Part-Q # 20190650

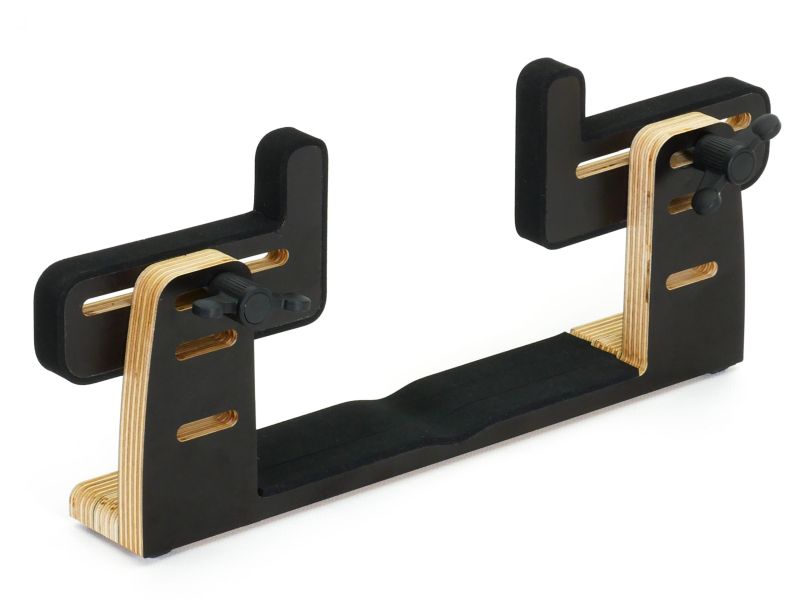

The StandFix fuselage holder guarantees a secure fixation of the fuselage. This allows any work on the fuselage to be carried out safely. Round and angular fuselages up to 18 mm can be accommodated in the clamping area. The flat design in the middle hardly raises the fuselage, so that it can lie almost flat on the workbench. The adjustable arms of the model stand can be pushed together so far that a wing can also be clamped vertically. If the ears are rotated by 180°, the StandFix can also serve as a wing rest if two are used simultaneously. The wooden parts are CNC milled from high-quality and sturdy 15 mm birch multiplex. The wooden parts of the model stand are covered with 3 mm self-adhesive rubber at the support points, so that the model is held securely and not damaged. In the Black Edition, the wood is additionally provided with a 220 g/m² thick phenolic resin coating, which makes the model stand particularly resistant.

Technical data:

• Dimensions approx. 6.5 x 28 x 10 cm without ears (LxWxH)
• Clamping range 2mm to 180mm

Scope of delivery:

• CNC milled parts (unfinished and connected)
• 2 x wing nut
• 4 x self-adhesive rubber feet
• 2 x M6 square nut
• 4 x 6x30 mm wooden dowels
• 4 x rubber pads
• 1 x illustrated assembly and operating instructions
