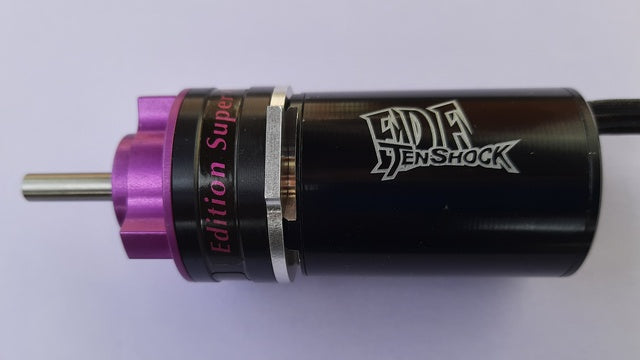

Tenshock EDF TS 2230-8T, 2520KV, 6 Pole, with Super Chief 6:1, round shaft
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Tenshock EDF TS 2230-8T, 2520KV, 6 Pole, with Super Chief 6:1, round shaft
Tenshock EDF TS 2230-8T, 2520KV, 6 Pole,
with Super Chief 6:1, round shaft
Special CNC machined housing for maximum heat dissipation
Highly efficient 6-pole 9-slot brushless motor
Highly pure copper windings for optimized conductivity
Extremely strong sintered neodymium magnets
High torque at low weight
Extremely compact, powerful 6-pole inrunner
for 3-6 lipo.
For gliders up to 10kg.
Data:
Weight: 306g
Number of poles: 6
Motor/gearbox Ø: 38.5mm
Length: Without shaft 85mm, Shaft 22mm
Shaft Ø: 6 mm
Bolt circle: 30mm, 3xM4 TX20
Lipo: 3-6
rpm/V: 430 measured with timing 6°
Current max.: 110 Amp.
max. power: at 24V 2400 Watt
Timing: 6-12°
Clock frequency: 12khz
Best ETA at 14.8 Volt, 24-27 Amp. 83.9%
Best ETA at 22.2 Volt, 70-84 Amp. 84.3%
Ideal operating range 50-90 Amp.
Duty cycles:
Typical for gliders, considering ambient temperature and effective cooling.
If you received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted, and test-run on the test bench at Reisenauer.
Important note:
For assembly, the company Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
