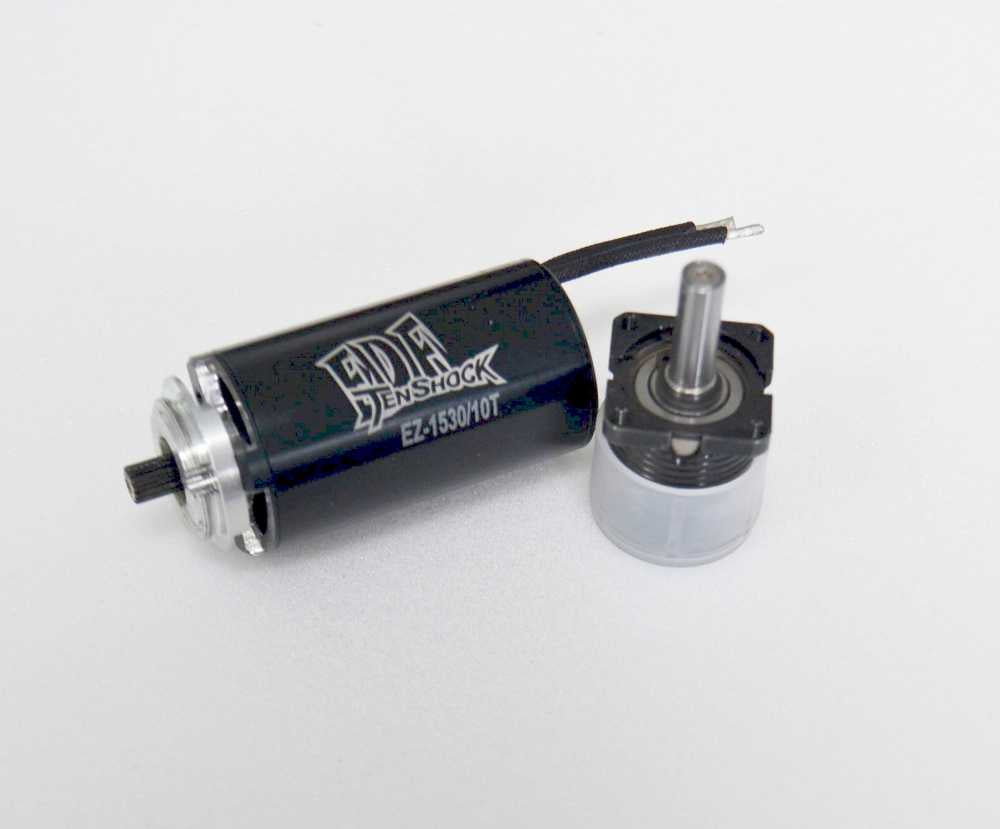

Tenshock EDF TS-EZ1530-10T-4pole 2750KV with Reisenauer Edition 5:1 4plus Gearbox
Tenshock EDF TS-EZ1530-10T-4pol 2750KV with Reisenauer Edition 5:1 4plus Gearbox
with Flat and Inject (hollow shaft = regreasing without spinner removal)
Ideal for very tight installation conditions. For light hotliners and gliders, very light and very effective drive for 3-5s LiPos.
Technical data:
- Weight: 163g
- Diameter: 28mm
- Length without shaft: 75.2mm
- 591 rpm
- Gear shaft: Æ 6mm, 17mm long
- 4 Poles
- Bolt circle 25mm, 4xM3
- For 3-5 LiPo
- Current max 75Amp.
- max. power at 3s 760 Watt
- max. power at 4s 1290 Watt
- Ideal operating range 40-60Amp.
- Recommended timing 12°
- Clock frequency 8khz
Operating times: Typical for gliders or hotliners, considering ambient temperature, operating temperature and effective cooling.
At max. power, only a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted and test run on the test bench at Reisenauer company.
Important note:
For assembly, Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
