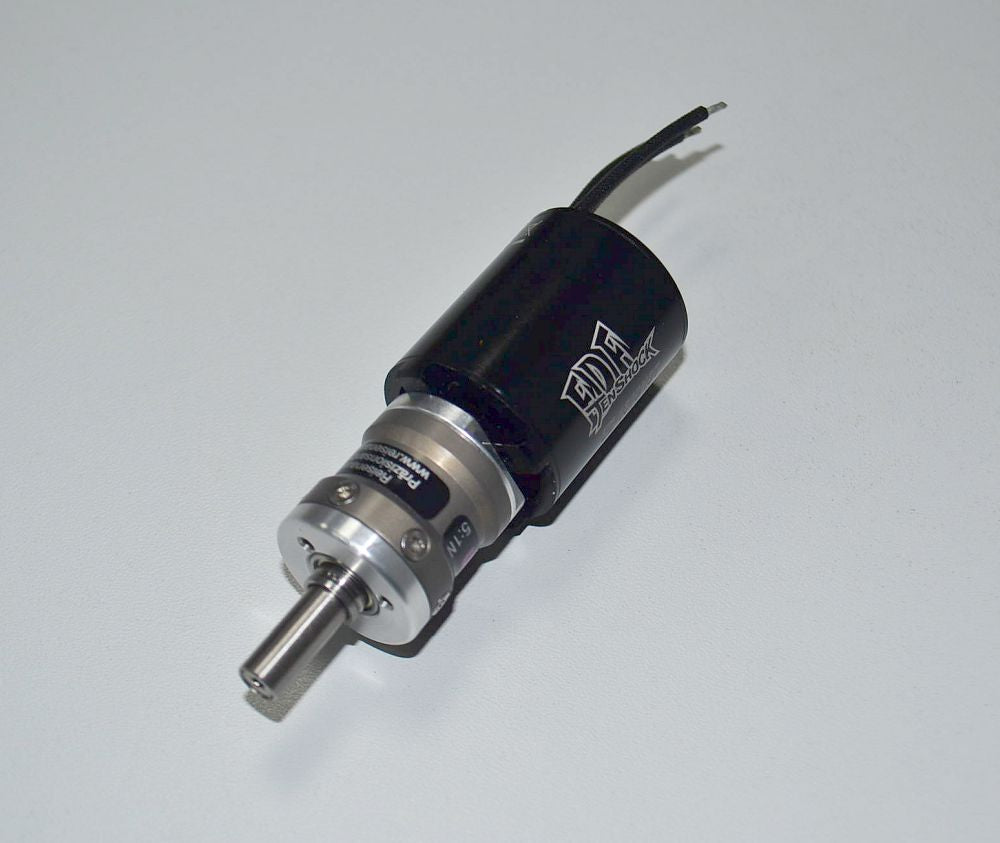

Tenshock EDF TS-EZ1530 - 11T - 4-pole 2500KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1530 - 11T - 4pole 2500KV with Micro Edition 5:1NL
with Flat and Inject (hollow shaft = regreasing without spinner removal)
Ideal for very confined installation spaces. Very light and highly effective drive for 3-s Lipos, capable of withstanding very high loads for short periods.
Technical Data:
- Weight: 170g
- Diameter: 28mm
- Length without shaft: 75.2mm
- 513 RPM
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 3-4Lipo
- Max current 55Amp.
- Max. power at 3s 457 Watt
- Max. power at 5s 915 Watt
- Ideal operating range 15-50Amp.
- Recommended timing 6°
- Switching frequency 8khz
Operating times: Glider or hotliner typical, taking into account ambient temperature, switch-on temperature, and effective cooling.
At maximum power, only for a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain clear.
The unit was previously assembled, adjusted, and test run on the test bench at Reisenauer company.
Important note:
For assembly, Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
