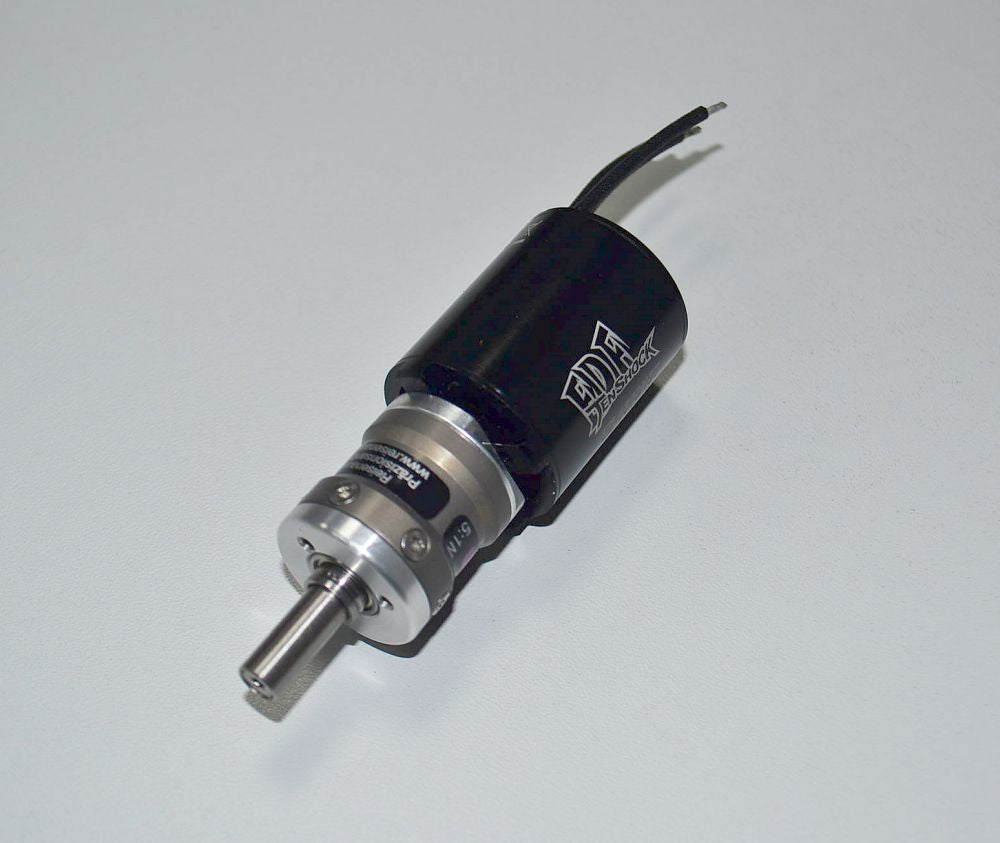

Tenshock EDF TS-EZ1530 - 12T - 4-pole 2300KV with Micro Edition 5:1N
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Tenshock EDF TS-EZ1530 - 12T - 4-pole 2300KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1530 - 12T - 4-pole 2300KV with Micro Edition 5:1NL
with Flat and Inject (hollow shaft = re-greasing without spinner removal)
Ideal for very tight installation conditions. Very light and very effective drive for 3-6s LiPos, capable of handling very high loads for short periods.
Technical Data:
- Weight: 169g
- Diameter: 28mm
- Length without shaft: 75.2mm
- 528 RPM
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 3-6 Lipo
- Current max 110Amp.
- max. power at 3s 687 Watt
- max. power at 6s 1510 Watt
- Ideal operating range 20-70Amp.
- Recommended timing 6°
- Switching frequency 8khz
Operating times: Glider or hotliner typical, taking into account ambient temperature, operating temperature and effective cooling.
At maximum power, only a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled so that disassembly and assembly remain easy.
The unit was previously assembled, adjusted and test run on the test bench at Reisenauer.
Important note:
For assembly, Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
