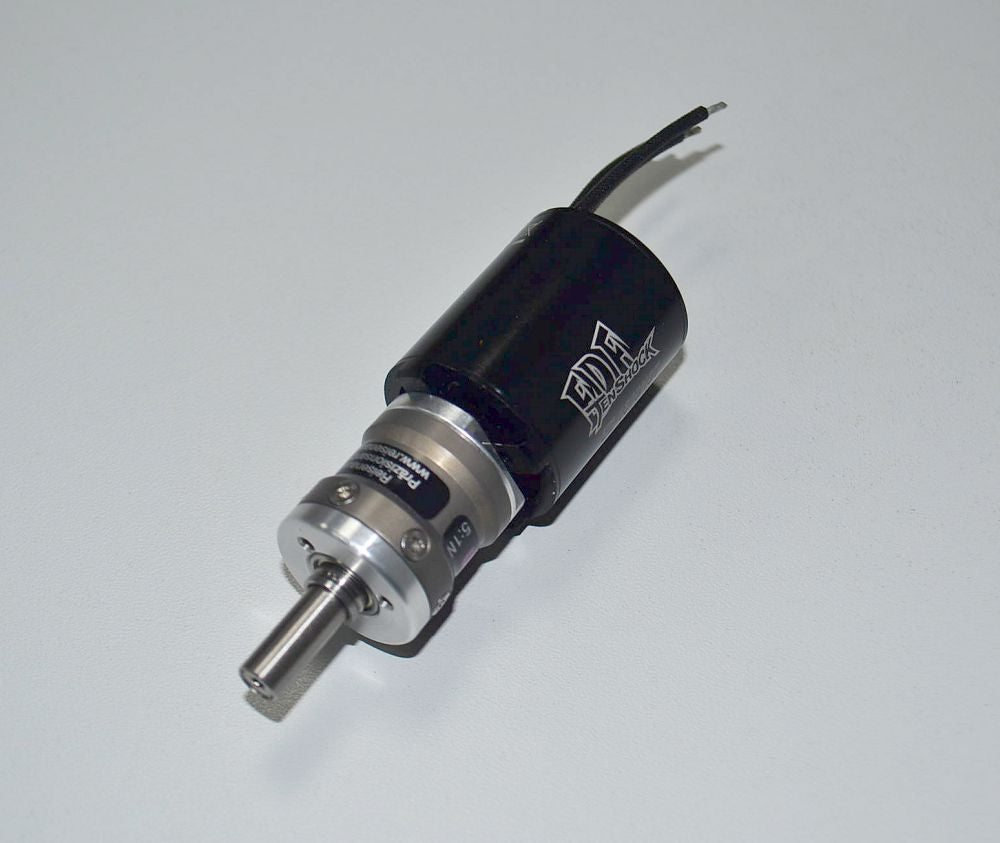

Tenshock EDF TS-EZ1530 - 7T - 4-pole 3950KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1530 - 7T - 4pole 3950KV with Micro Edition 5:1N
with Flat and Inject (hollow drilled shaft = regreasing without spinner removal)
Ideal for very tight installation conditions. Very light and very effective drive for 2-4s Lipos, capable of very high loads for short periods.
Technical Data:
- Weight: 163g
- Diameter: 28mm
- Length without shaft: 75mm
- 852 rpm
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 2-4 Lipo
- Max current 110Amp.
- Max. power at 3s 1250 Watts
- Max. power at 4s 1800 Watts
- Best ETA at 11 V, 51 Amp.: 86.2%
- Best ETA at 14.8 V, 65 Amp.: 86.6%
- Ideal operating range 20-70Amp.
- Recommended timing 6°
- Switching frequency 8khz
Operating times: Typical for gliders or hotliners, taking into account ambient temperature, switch-on temperature and effective cooling.
At max. power, only a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted, and test run on the test bench by Reisenauer.
Important note:
For assembly, the company Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
