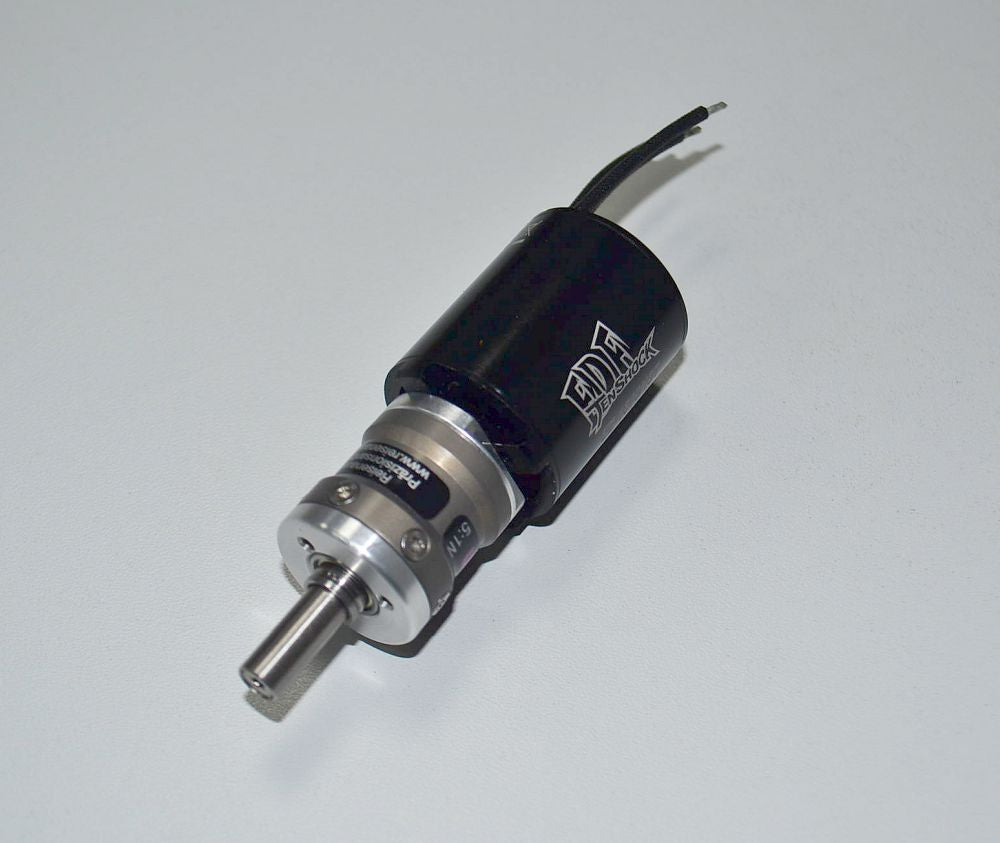

Tenshock EDF TS-EZ1530 - 8T - 4-pole 3480KV with Micro Edition 5:1N
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Tenshock EDF TS-EZ1530 - 8T - 4-pole 3480KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1530 - 8T - 4-pole 3480 VK with Micro Edition 5:1N
with Flat and Inject (hollow shaft = regreasing without spinner removal)
Ideal for very confined installation spaces. Highly resilient for short periods, very lightweight, and highly effective drive for 2-4s LiPo batteries.
Technical data:
- Weight: 163g
- Diameter: 28mm
- Length without shaft: 75.2mm
- 721 rpm
- Gear shaft: 6mm
- 4 poles
- Bolt circle 14mm, 3xM2.5
- For 2-4 LiPo
- Max current 100Amp.
- Max. power at 3s 780 watts
- Max. power at 4s 1170 watts
- Best ETA at 11 V, 51 Amp.: 84.9%
- Best ETA at 14.8 V, 65 Amp.: 83.3%
- Ideal operating range 20-70Amp.
- Recommended timing 6°
- Clock frequency 8khz
Operating times: Typical for gliders or hotliners, taking into account ambient temperature, switch-on temperature, and effective cooling.
At max. power, only for a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain transparent.
The unit was previously assembled, adjusted, and test run on the test bench at Reisenauer company.
Important note:
For assembly, Reisenauer company recommends the assembly key with order no.: RE-ZE-000501
