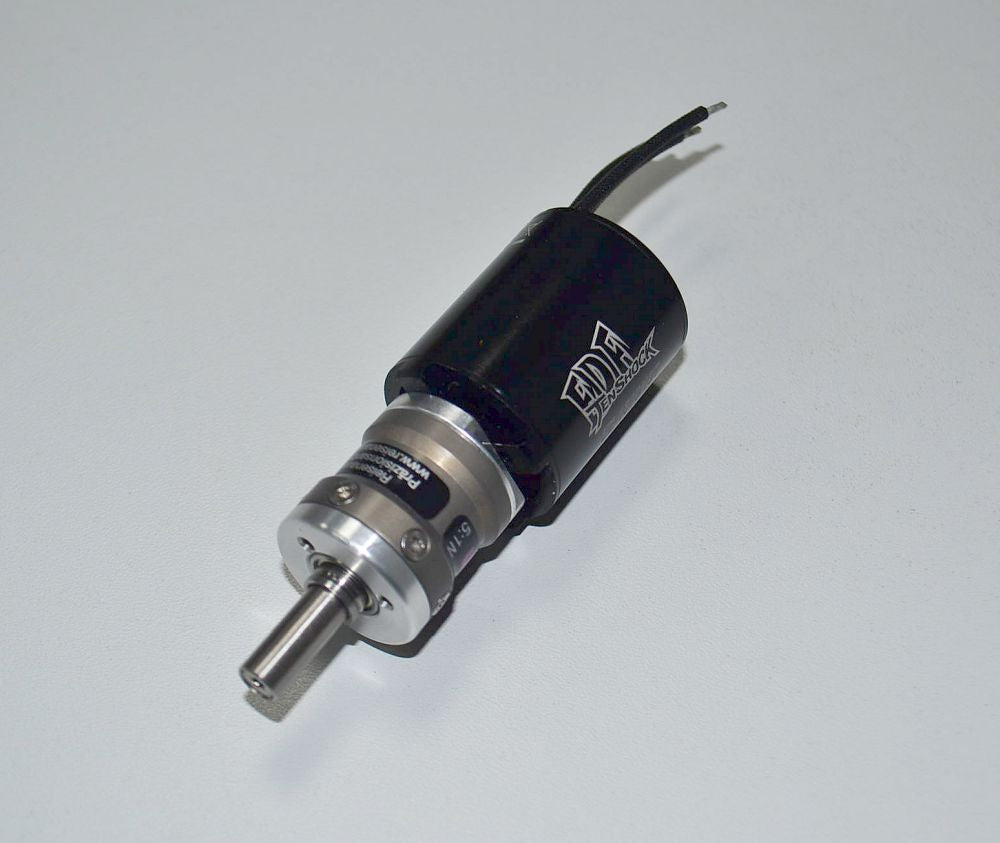

Tenshock EDF TS-EZ1530 - 9T - 4-pole 3100 KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1530 - 9T - 4-pole 3100KV with Micro Edition 5:1N
with Flat and Inject (hollow shaft = regreasing without spinner removal)
Ideal for very confined installation spaces. Very light and highly effective drive that can withstand very high loads for short periods. For 2-4s LiPo batteries.
Technical Data:
- Weight: 163g
- Diameter: 28mm
- Length without shaft: 75.2mm
- 645 RPM
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 2-4s LiPo
- Max current 75A
- Max power at 3s 850 Watt
- Max power at 4s 1100 Watt
- Best ETA at 11 V, 41 Amp: 87.8%
- Best ETA at 14.8 V, 43 Amp: 86.4%
- Ideal operating range 30-55A
- Recommended Timing 6°
- Clock frequency 8khz
Operating times: Typical for gliders or hotliners, taking into account ambient temperature, switch-on temperature, and effective cooling.
At max. power, only a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain clear.
The unit was previously assembled, adjusted, and test-run on the test bench at Reisenauer company.
Important Note:
For assembly, Reisenauer company recommends the assembly key with order no.: RE-ZE-000501
