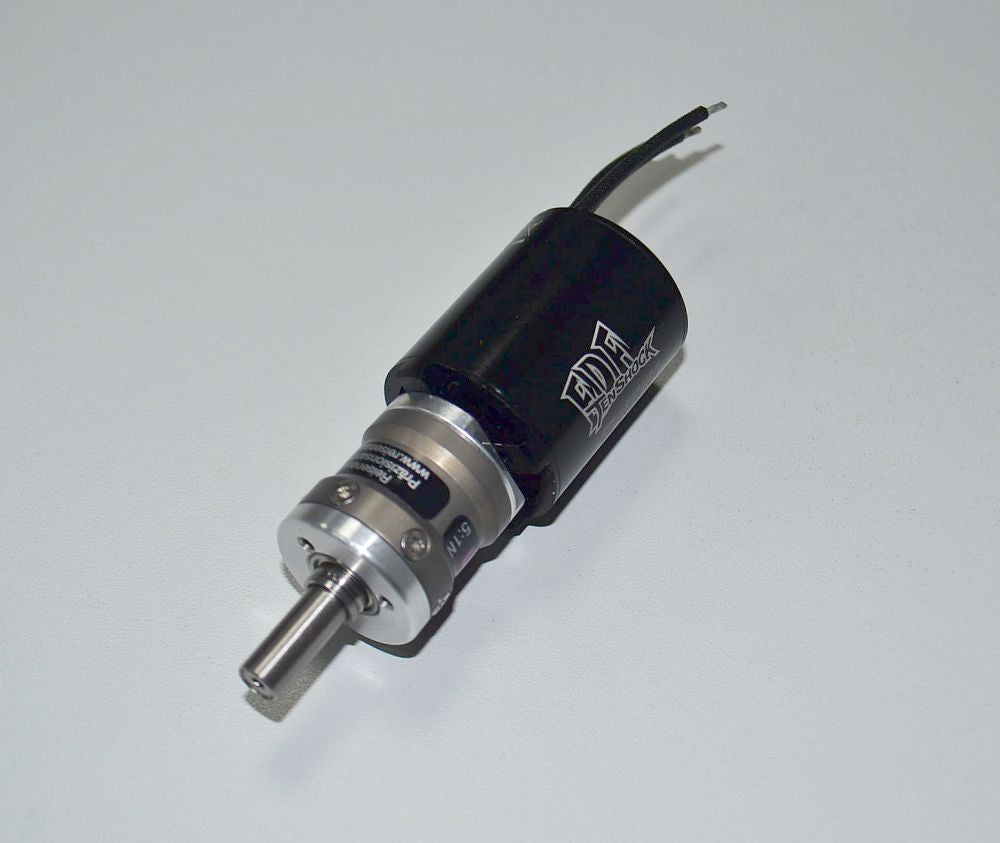

Tenshock EDF TS-EZ1540 - 6T - 4-pole 3400KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1540 - 6T - 4-pole 3400KV with Micro Edition 5:1N
with Flat and Inject (hollow shaft = regreasing without removing spinner)
Ideal for very tight installation conditions. Very light and very effective drive for 2-4s Lipos, capable of withstanding very high loads for short periods.
Technical data:
- Weight: 205g
- Diameter: 28mm
- Length without shaft: 85mm
- 719 rpm
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 2-4 Lipo
- Current max 100Amp.
- max. power at 3s 1100 Watts
- max. power at 4s 1600 Watts
- Best ETA at 11 V, 51 Amp.: 83.3%
- Best ETA at 14.8 V, 65 Amp.: 82.8%
- Ideal operating range 15-45Amp.
- Recommended timing 6°
- Clock frequency 8khz
Operating times: Glider or hotliner typical, taking into account ambient temperature, operating temperature and effective cooling.
At maximum power, only a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted, and test-run on the test bench by Reisenauer.
Important note:
For assembly, Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
