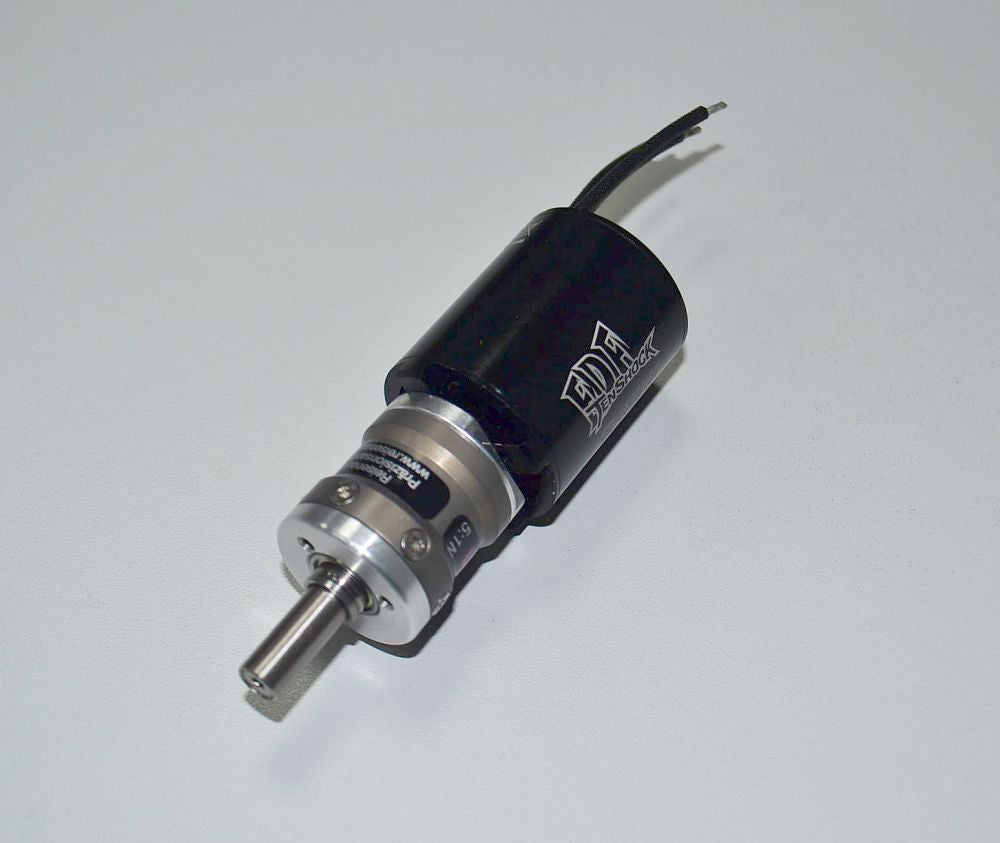

Tenshock EDF TS-EZ1540 - 9T - 4-pole 2290KV with Micro Edition 5:1N
Tenshock EDF TS-EZ1540 - 9T - 4 pole 2290KV with Micro Edition 5:1N
with Flat and Inject (hollow drilled shaft = regreasing without removing the spinner)
Ideal for very tight installation conditions. Extremely light and very efficient drive, capable of very high loads for short periods. For 3-6s LiPos.
Technical data:
- Weight: 205g
- Diameter: 28mm
- Length without shaft: 85mm
- 499 RPM at 6° timing
- Gear shaft: 6mm
- 4 Poles
- Bolt circle 14mm, 3xM2.5
- For 3-6 Lipo
- Current max 70Amp.
- max. power at 3s 600 Watt
- max. power at 4s 900 Watt
- max. power at 5s 1200 Watt
- max. power at 6s 1500 Watt
- Best ETA at 11 V, 26 A: 84.2%
- Best ETA at 22.2 V, 39 Amp.: 83.9%
- Ideal operating range 25-50Amp.
- Recommended timing 6-10°
- Clock frequency 8khz
Operating times: Sailplane or hotliner typical, taking into account ambient temperature, switch-on temperature and effective cooling.
At max. power only for a few seconds.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and reassembly remain straightforward.
The unit was previously assembled, adjusted and tested on a test bench by Reisenauer.
Important note:
For assembly, Reisenauer recommends the assembly key with order no.: RE-ZE-000501
