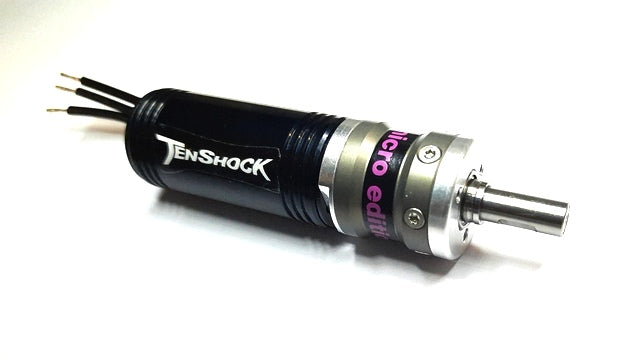

Tenshock Viper-CC 1030-10T 4-pole (4150kv) with Micro Edition 5:1NL
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Tenshock Viper-CC 1030-10T 4-pole (4150kv) with Micro Edition 5:1NL
Tenshock VIPER 1030-10T 4-pole with Micro Edition 5:1NL
with Flat and Inject (hollow shaft = re-greasing without removing spinner)
Very light, powerful drive especially suitable for very light F5J and RES gliders from 1.4 - 3.80m and small speeders.
Technical Data:
- Weight 95g
- Diameter 22mm
- Length without shaft 71mm
- 840 rpm/V
- 4 Pole
- Bolt circle 14mm
- 3x M2.5
- For 3-4 Lipo
- Current max 40Amp.
- max. power at 3s 420 Watt
- max. power at 4s 480 Watt
- Timing 6-10°
- 12 khz
- Gear shaft: 6mm
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted and test run on the test bench at the company Reisenauer.
Important note:
For assembly, the company Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
