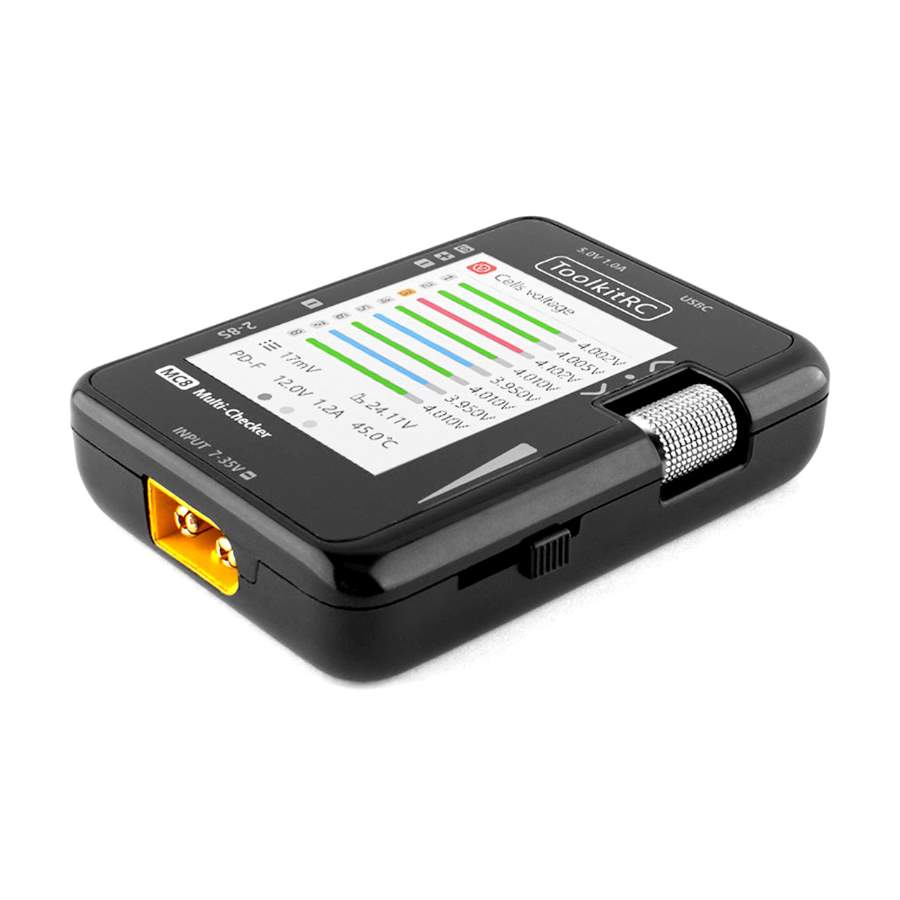

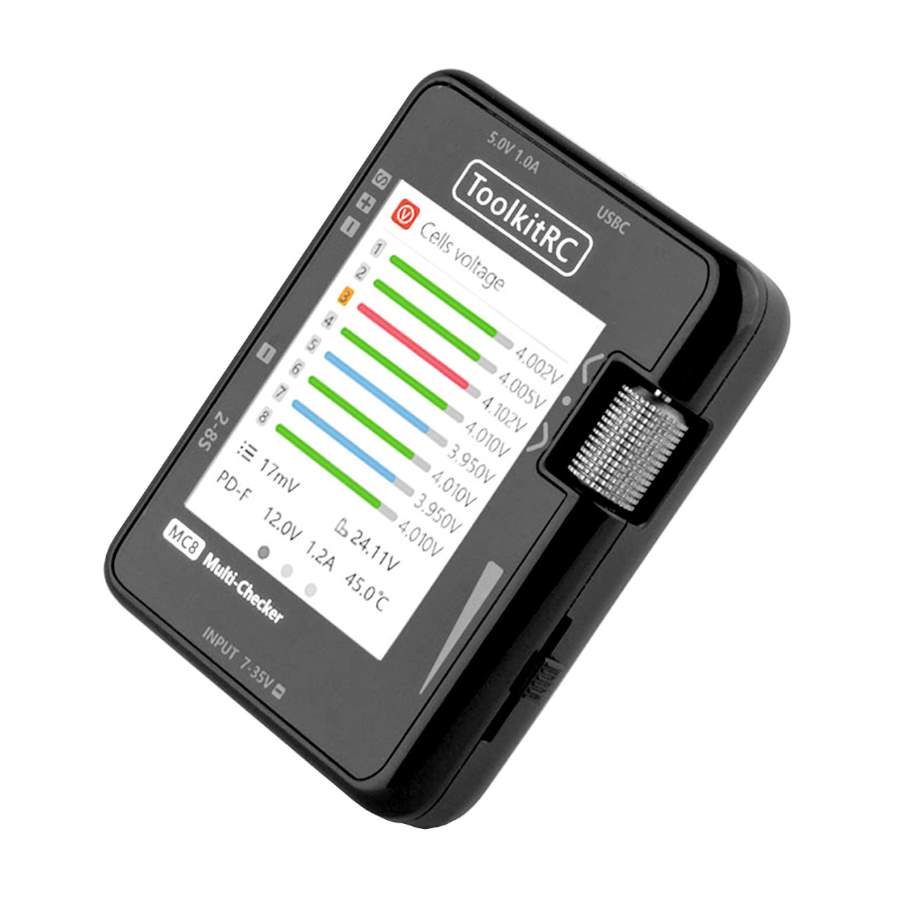

ToolkitRC MC8 Multichecker, # TK31600

The MC8 is a compact tool and measuring device. Its sleek design combined with the vibrant color IPS display makes it easy and enjoyable to use. And with exceptional accuracy of up to 5mV, this multi-checker sets a new standard in precision. Whether you're a drone enthusiast, RC car racer, or just tech-savvy, the MC8 is the ideal companion for battery testing and monitoring.

Features:

• Measures and balances lithium batteries
• Measures and outputs signals (PWM, PPM, SBUS)
• Wide input voltage range with DC 7.0-35.0V
• Includes main, balance, and signal input

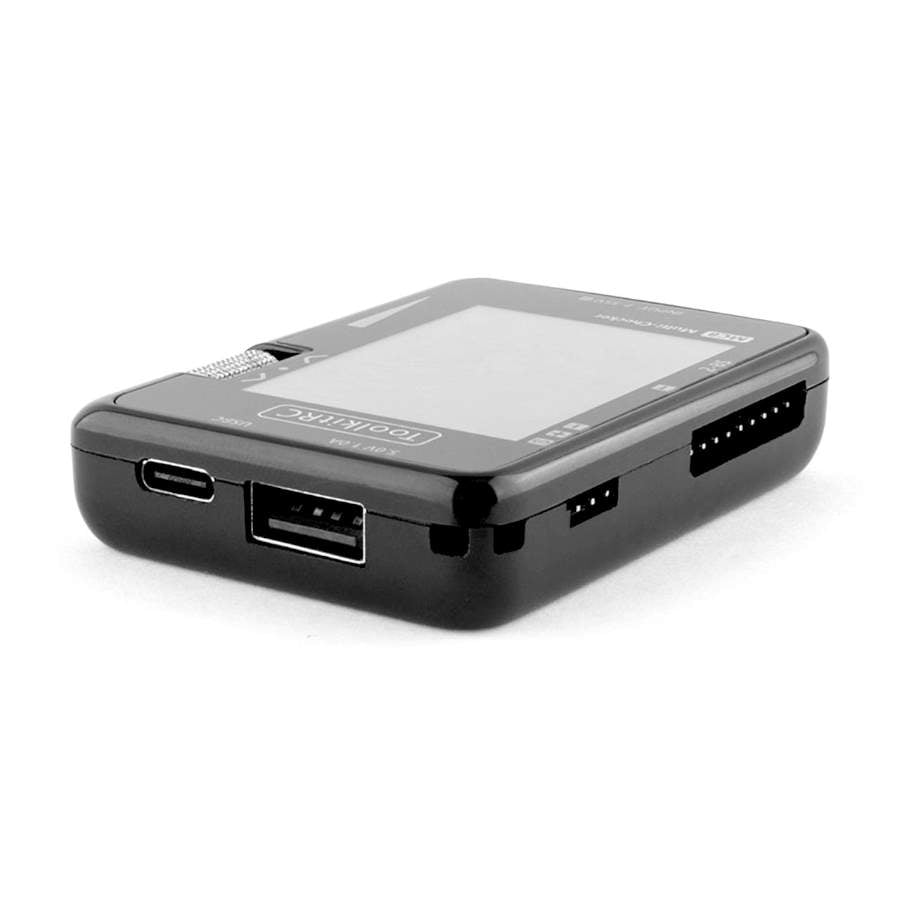

• USB-A, USB-C dual output
• USB-C 20 PD fast charging output
• Overcharge protection

Technical Data:

• Main connector: XT60 7.0V-35.0V
• Signal connector: <6.0V
• Balance connector: 0.5V-5.0V Lixx, 2-8S
• Balance current: max. 60mA, 2-8S
• Balance accuracy: <0.005V, 4.2V
• USB-A output: 5.0V, 1.0A Firmware Upgrade
• USB-C output: 5.0V-12.0V, max. 20W
• USB-C protocol: PD3.0, QC3.0, AFC, SCP, FCP
• Display: LCD, IPS 2.0'', 240x240px
• Dimensions: 68x50x15mm
• Weight: 50g

Measurement & Output:

• Measurement: PWM 500us-2500us, 20-400Hz
                 PPM 880us-2200us x8 CH, 20-50Hz
                 SBUS 880us-2200us x16 CH, 20-100Hz
• Output: PWM 1000us-2000us, 20-1000Hz
                PPM 880us-2200us x8 CH, 50Hz
                SBUS 880us-2200us x16 CH, 74Hz

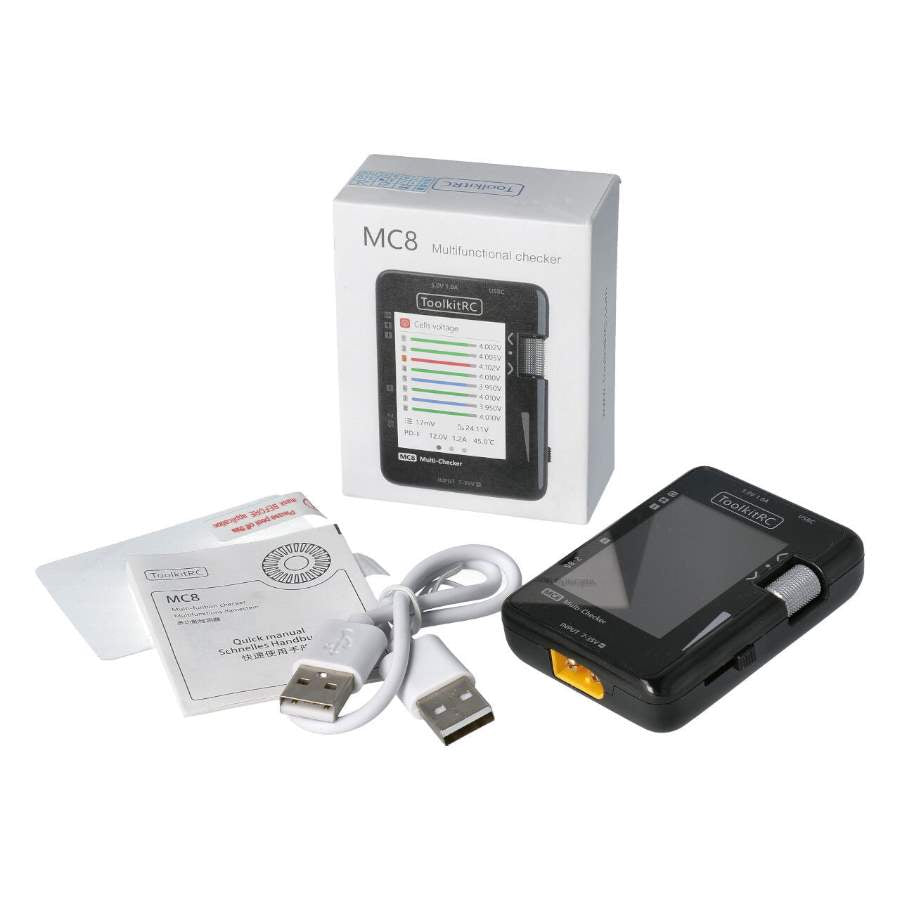

Scope of delivery:

• 1x MC8 Multichecker
• 1x USB cable
• 1x Display protection film
• 1x Manual
