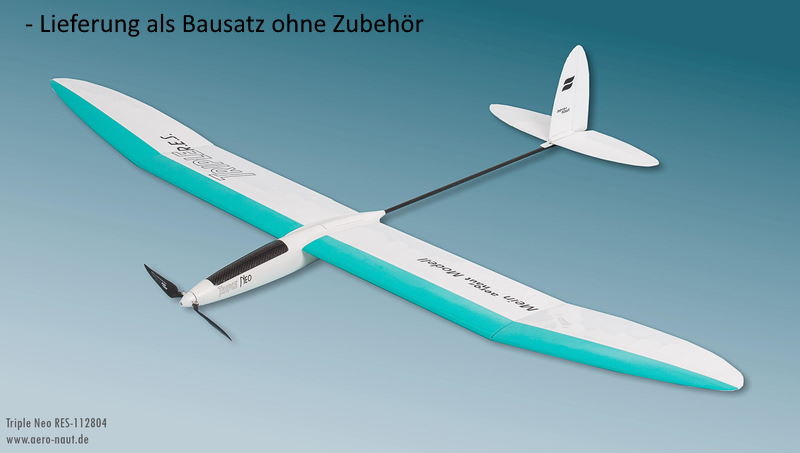

Triple Neo R.E.S., 2000mm Wingspan, Aeronaut # 112804

The successful Aeronaut TRIPLE models are now expanded to include a version with a GRP fuselage, offering even more possibilities for combining fuselage and wings. The front fuselage pod is made of GRP, and a carbon fiber tube serves as the tail boom. Optionally, each model can be built as a glider or electric glider. A special template is included, with which the nose of the fuselage can be easily cut off. Motor thrust and side thrust are automatically set correctly. The wings are constructed with ribs, have continuous pine spars and a notched bracing, so that assembly on any flat building board is quick and easy. The trailing edge planking is also grooved, so that nothing can go wrong with the position of the ribs. This also enables beginners in wooden model building to quickly get their own perfectly built and well-flying model.
The wings are built from laser-cut wooden parts. All parts are precisely cut and require no rework. Due to the simple and precise construction, important values such as dihedral or incidence are automatically set and do not need to be adjusted manually. All three wings can be attached to the fuselage as desired, completely without tools but with strong magnetic securing. This allows for quick changes even at the airfield. Triple Neo R.E.S. has a wingspan of approx. 200 cm and a higher dihedral than the "Triple thermic". The model is controlled only via rudder and elevator as well as spoilers.

Scope of delivery:

• all laser-cut wooden parts for building the wings and tail units
• white GRP fuselage and white canopy
• Aero-Naut jig made of Depron
• Pine spars, rudder linkages and Bowden cables, various small parts.
• A detailed illustrated building instruction in the proven aero-naut 3D style leads to quick building success.
• A suitable spinner and center piece for folding propellers are also included in the kit. The collet, depending on the motor shaft, is additionally required!!!

Suitable equipment:

• Motor: Ø 28 mm, from approx. 150 watts
• Battery 3s Lipo up to approx. 2000 mAh (ideal is 75x35x20mm)
• Controller: approx. 20 A (depending on motor)
• CAMcarbon folding propeller: 9x5“-12x7“ (matching motor / battery)
• Collet: Motor shaft 3.0 mm # 712302; Motor shaft 3.17 mm # 712303; Motor shaft 4.0 mm # 712304
• Servos 2x D-Power DS-220
• Servos 2x D-Power DS-140
