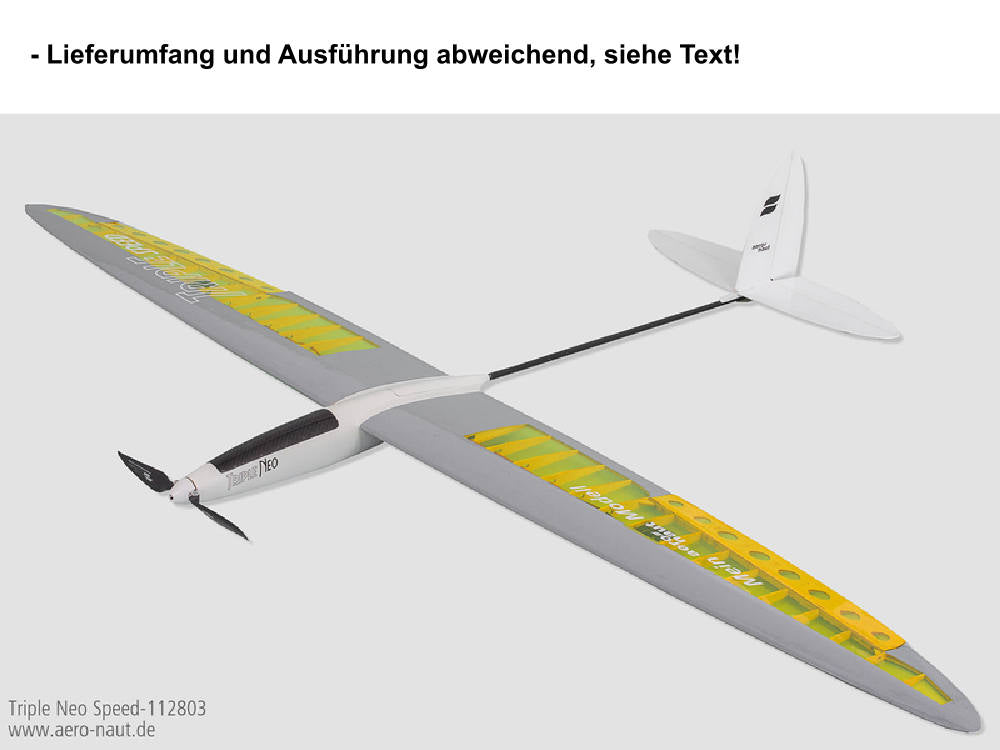

Triple Neo Speed, 1810mm Span, Aeronaut # 112803

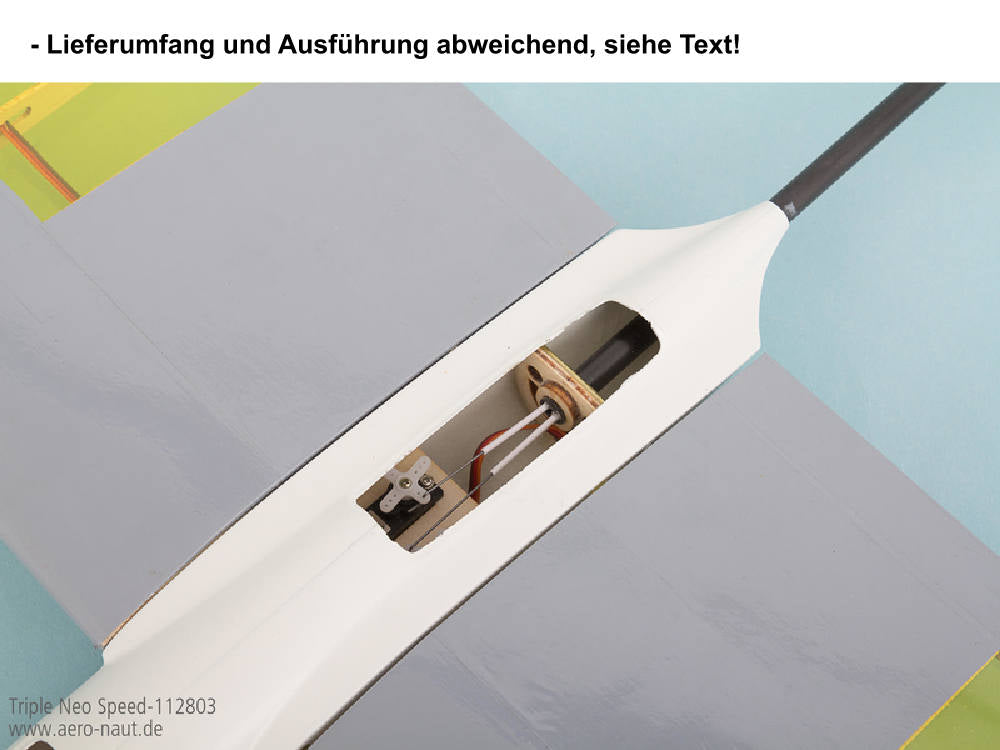

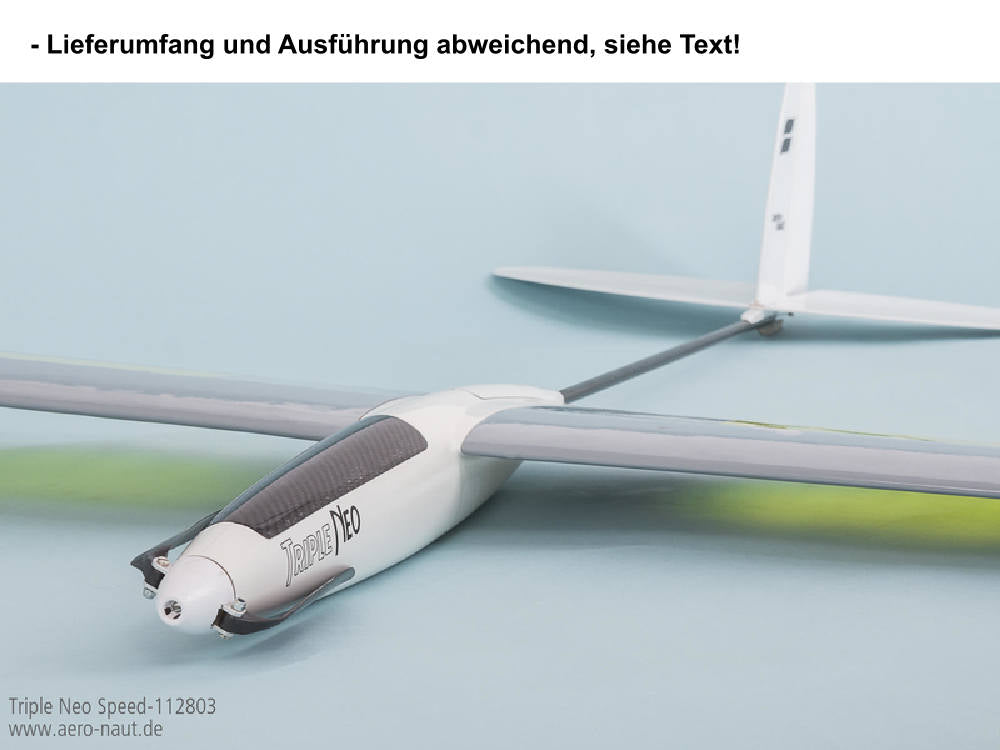

The successful Aeronaut TRIPLE models are now expanded with a version featuring a GRP fuselage, offering even more possibilities for combining fuselage and wings. The front fuselage pod is made of GRP, and a carbon fiber tube serves as the tail boom. Each model can optionally be built as a glider or an electric glider. A special template is included for this purpose, with which the nose can be easily separated. Motor downthrust and side thrust are automatically set correctly. The wings are constructed using rib construction, have continuous pine spars, and a slotted sheeting, making assembly quick and easy on any flat building board. The trailing edge sheeting is also grooved, so that nothing can go wrong with the positioning of the ribs. This allows even beginners in wooden model building to quickly achieve their own, perfectly built and well-flying model.
The wings are built from laser-cut wooden parts. All parts are precisely cut and require no rework. Thanks to the simple and precise construction, important values such as dihedral or incidence are automatically set and do not need to be adjusted manually. All three wings can be attached to the fuselage as desired, completely without tools but with strong magnetic security. This allows for quick changes even at the airfield. The "Triple Neo Speed" has a wingspan of approx. 181 cm, a simple dihedral, and long ailerons. The airfoil has a flat underside, allowing for rapid flights and magnificent aerobatic soaring. The incidence has been slightly changed compared to the "Triple Speed" model in the all-wood version, enabling even faster flights.

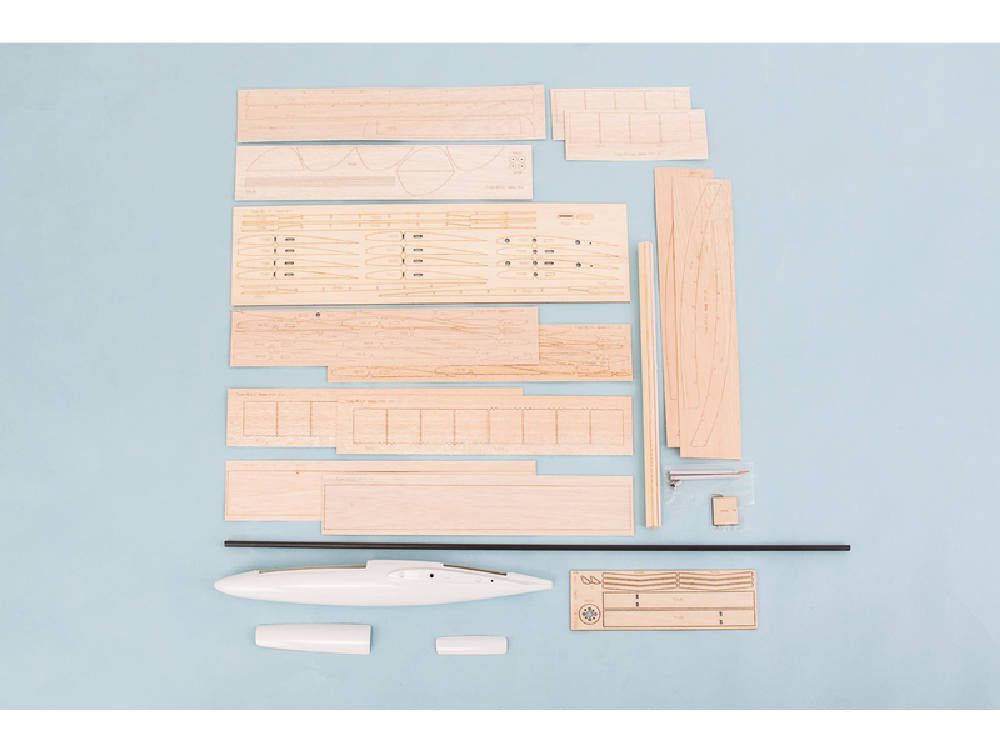

Scope of delivery:

• all laser-cut wooden parts for the construction of the wings and tail units
• white GRP fuselage and white canopy
• aero-naut slipway made of Depron
• pine spars, rudder linkages and Bowden cables, various small parts.
• A detailed illustrated building instruction in the proven aero-naut 3D style leads to quick building success.
• A suitable spinner and center piece for folding propellers are also included in the kit. The clamping cone depending on the motor shaft is additionally required!!!

Suitable equipment:

• Motor: Ø 28 mm, from approx. 150 watts
• Battery 3s Lipo up to approx. 2000 mAh (ideal is 75x35x20mm)
• ESC: approx. 20 A (depending on motor)
• CAMcarbon folding propeller: 9x5“-12x7“ (matching motor / battery)
• Clamping cone: Motor shaft 3.0 mm # 712302; Motor shaft 3.17 mm # 712303; Motor shaft 4.0 mm # 712304
• Servos 4x D-Power DS-220
