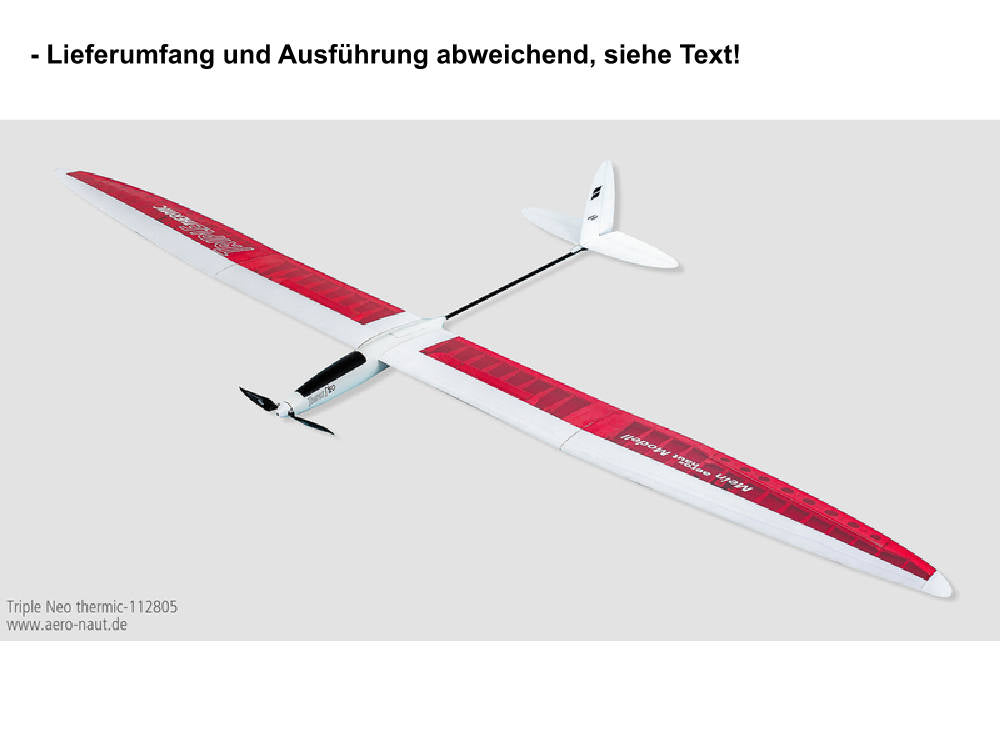

Triple Neo Thermic, wingspan 2580mm, Aeronaut # 112805

The Aeronaut TRIPLE successful models are now expanded by a version with a GRP fuselage and now offer even more possibilities for combining fuselage and wings. The front fuselage pod is made of GRP, a carbon fiber tube serves as the tail boom. Each model can optionally be built as a glider or electric glider. A special template is included for this purpose, with which the fuselage nose can be easily cut off. Engine thrust and side thrust are automatically set correctly. The wings are built using rib construction, have continuous pine spars and a box-section with grooves, so that assembly on any flat building board is quick and easy. The trailing edge planking is also grooved, so that nothing can go wrong with the position of the ribs. This enables beginners in wooden model building to quickly get their own perfectly built and well-flying model.
The wings are built from laser-cut wooden parts. All parts are precisely cut and require no rework. Thanks to the simple and precise construction, important values such as dihedral or incidence are automatically set and do not have to be adjusted manually. All three wings can be attached to the fuselage at will, without tools but with strong magnetic security. This allows for quick changes even at the flying field.

The "Triple Neo Thermic" has a wingspan of approx. 258 cm and is designed for ailerons and spoilers. The profile is designed for thermal flights and gives the model excellent flight performance.

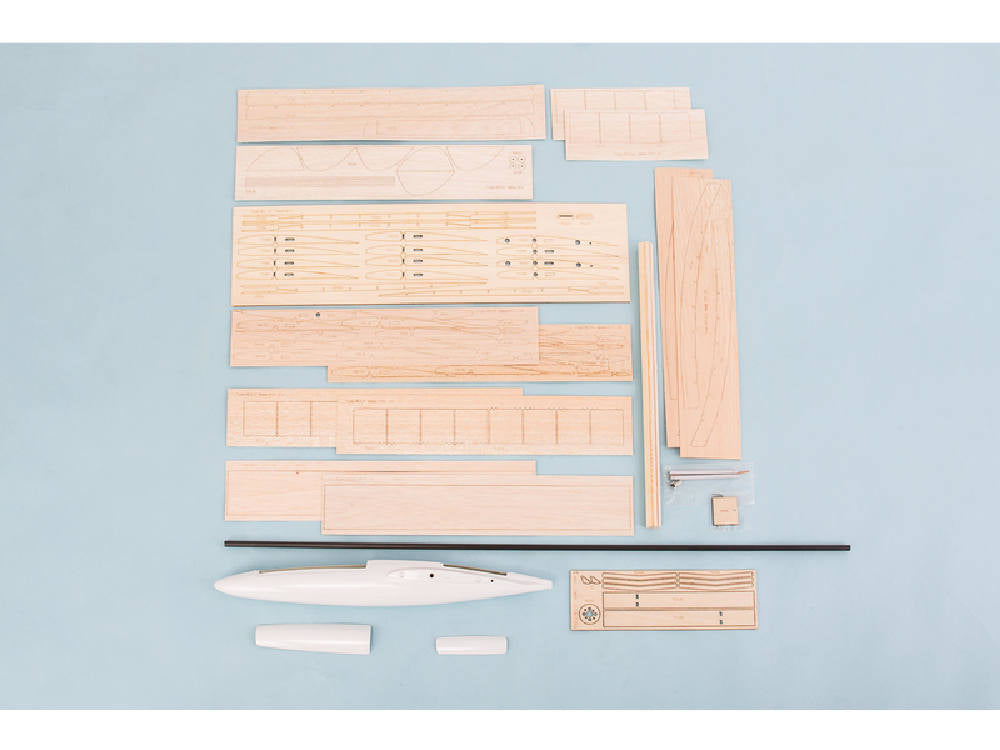

Scope of delivery:

• all laser-cut wooden parts for building the wings and tail units
• white GRP fuselage and white canopy
• aero-naut slipway made of Depron
• pine spars, rudder linkages and Bowden cables, various small parts.
• A detailed illustrated building instruction in the proven aero-naut 3D style leads to quick building success.
• A suitable spinner and middle piece for folding propellers are also included in the kit. The clamping cone depending on the motor shaft is additionally required!!!

Suitable equipment:

• Motor: Ø 28 mm, from approx. 150 watts
• Battery 3s Lipo up to approx. 2000 mAh (ideal is 75x35x20mm)
• Controller: approx. 20 A (depending on motor)
• CAMcarbon folding propeller: 9x5"-12x7" (matching motor / battery)
• Clamping cone: Motor shaft 3.0 mm # 712302; Motor shaft 3.17 mm # 712303; Motor shaft 4.0 mm # 712304
• Servos 4x D-Power DS-220
• Servos 2x D-Power DS-140
