Triple Thermic, Wingspan 2550mm
Aeronaut # 112802

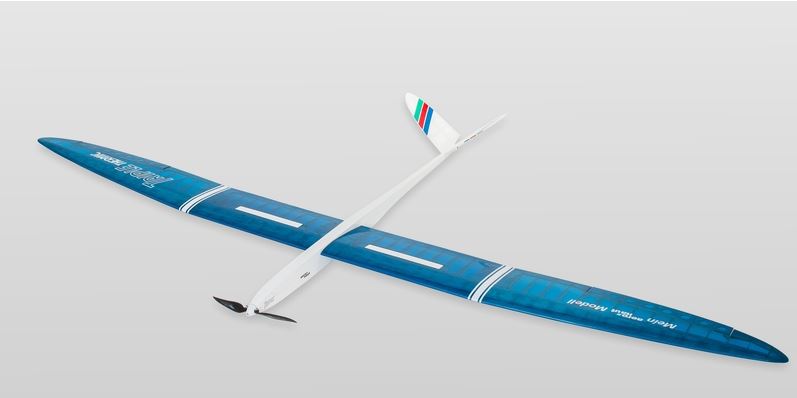

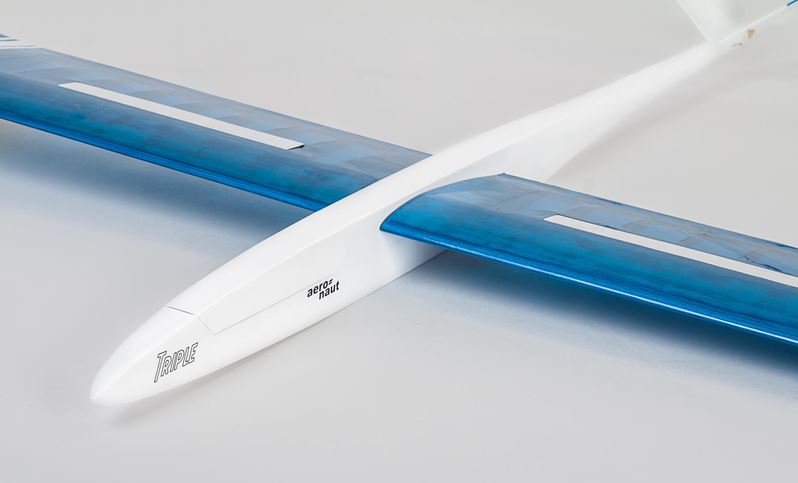

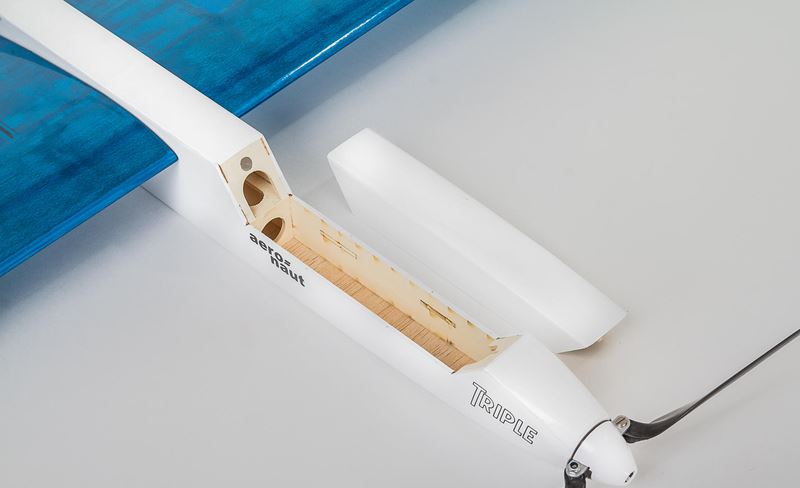

"Triple Thermic" has a wingspan of 255 cm and is equipped with ailerons and spoilers. The airfoil is designed for thermal flights and gives the model docile and powerful flight characteristics. The glider fuselage offers excellent aerodynamic properties in its slim design. The electric fuselage is only slightly wider in the front area, can comfortably accommodate 28 mm outrunner motors, and offers space for a 3s LiPo with approx. 2,500 mAh. Both fuselages share a removable canopy with magnetic locking and a fuselage cover on the underside, behind which the servos for the V-tail are hidden.
All models are built entirely from wood, thus following the proven aero-naut principle of model construction. The fuselage is constructed from poplar plywood and balsa. The innovative interlocking system enables quick and warp-free assembly. The V-tail is also assembled from pre-laser-cut parts and glued on an included extra jig.
The wings are built with ribs, have continuous pine spars, and a grooved sheeting, so that assembly on any flat building board is quick and easy. The trailing edge planking is also grooved, so that no mistakes can be made with the position of the ribs. This allows even beginners in wooden model building to quickly achieve their own perfectly built and well-flying model.
The kit is also ideal for youth work and for joint building projects in clubs.

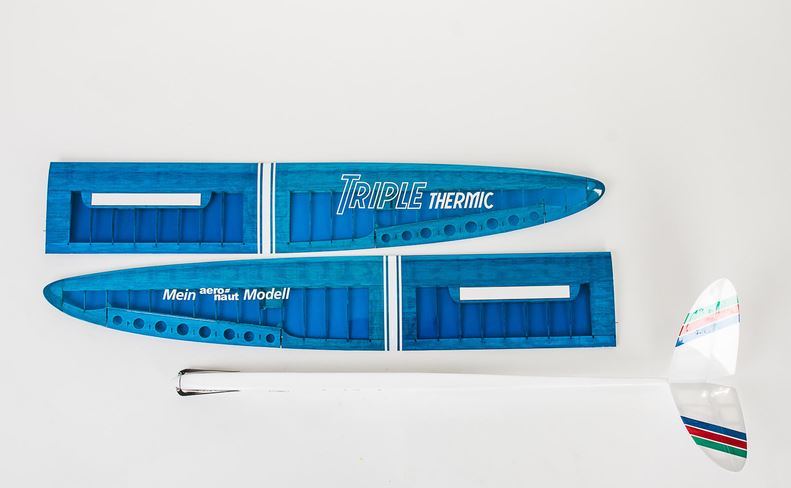

This completely new model concept offers an aesthetically pleasing fuselage with a V-tail (optionally buildable as a glider or electric glider - both versions are included in the kit) and three different wingspans. All wings can be attached to the fuselage as desired. Completely without tools, with strong magnetic locking. This allows for quick changes even at the airfield.

Kit contents:

The model kit contains all laser-cut wooden parts for building the model, pine spars, rudder linkages and Bowden cables, various small parts.
A detailed illustrated building instruction in the proven aero-naut 3D style leads to quick building success.

Suitable drives for E-glider version:

• Motor from approx. 150 watts
• Battery 3s LiPo up to approx. 2000 mAh (ideal is 75x35x20mm)
• Controller approx. 20A
• CAMcarbon folding propeller 9x5"-12x7" depending on motor selection!
• CoolNose spinner Ø 30 mm with center piece
• Servos 4x D-Power DS-220
• Servos 2x D-Power DS-140
