Tucano 35cc, ARF, Spw. 2060mm, D-Power # PH204

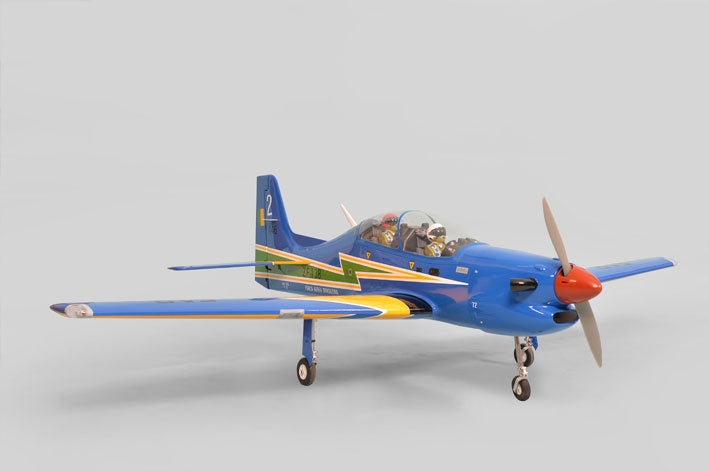

The Tucano 35cc from Phoenix is a true-to-scale military training aircraft with a 2.06m wingspan. The model is constructed from extremely light and high-strength wood and is designed for electric or internal combustion engines.

Absolutely true to scale:

This Phoenix model is in no way inferior to its prototype. Many beautiful detailed solutions make the Tucano look like the original when viewed on the ground. And even in the air, the model presents an absolutely "scale" flight profile, which is hardly distinguishable from the flight profile of the full-size prototype.

Wooden construction with an extremely high degree of prefabrication:

The model is constructed from extremely light and high-strength, laser-cut wood. The construction boasts an extremely high degree of prefabrication of 95%, which reduces the construction effort almost exclusively to the installation of the propulsion system and electronics. The Tucano is completely covered with film.

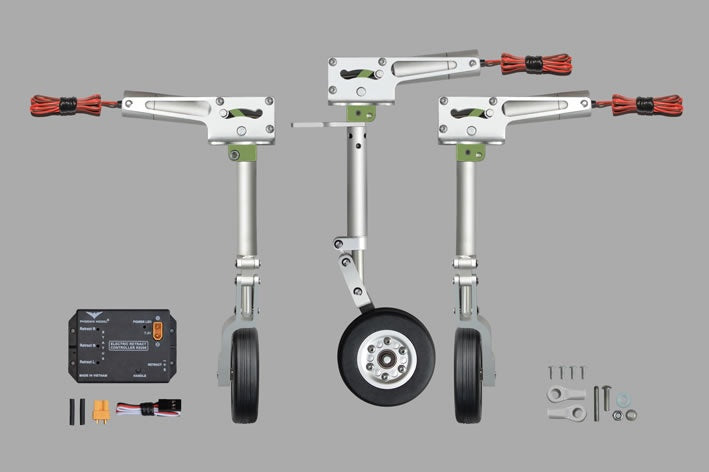

Electric retractable landing gear included:

This latest version of the Phoenix Tucano comes with an electrically retractable main landing gear and an electrically retractable nose landing gear. The sprung landing gear struts are made entirely of CNC-machined metal and are included in the scope of delivery.

Electric or internal combustion:

This model can do both! The construction is prepared for both electric propulsion and internal combustion engines. So the only question is: awesome sound or absolute efficiency?

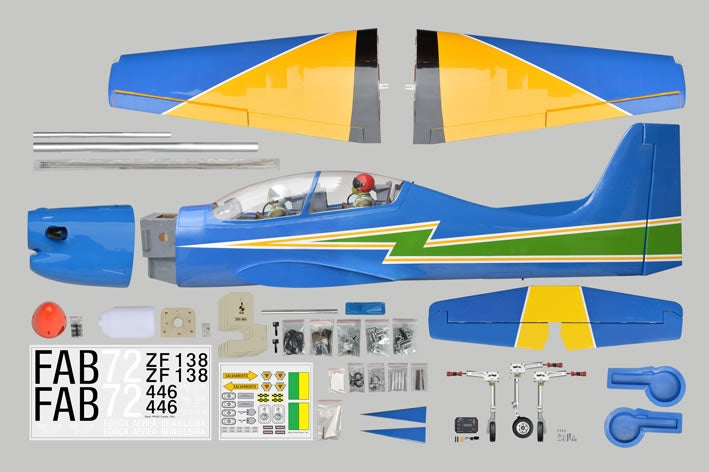

Features:

• Electric or internal combustion operation possible
• extremely light and high-strength, laser-cut wooden construction
• 95% prefabrication, fully covered and painted
• Two-piece wing
• removable GRP canopy
• detailed cockpit, instrument panel and pilot figure
• including electric, sprung metal retractable landing gear
• including scale plastic bomb
• including 95mm spinner
• many scale details

Technical data:

• Wingspan: 2,060 mm
• Length: 1,757 mm
• Wing profile: Naca
• Wing area: 64.9 dm²
• Wing loading: 101g/dm²
• Weight: 7.2 – 7.4kg

Required accessories:

• Remote control: min. 8 channels
• Receiver: min. 8 channels

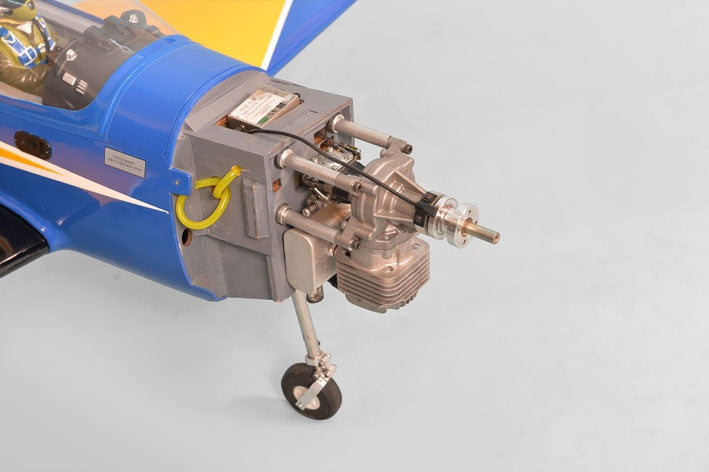

• Propulsion: Electric (2500W) or internal combustion 30-35cc 2-stroke
• Propeller: according to propulsion system
• 2 standard servos for ailerons / D-Power REX-6180SG HV Coreless Servo
• 2 standard servos for flaps / D-Power REX-6180SG HV Coreless Servo
• 2 standard servos for elevator / D-Power REX-6180SG HV Coreless Servo
• 1 standard servo for rudder / D-Power REX-6330SG HV Coreless Servo
• 1 standard servo for nose gear / D-Power HVS-5140BBMGHV Servo

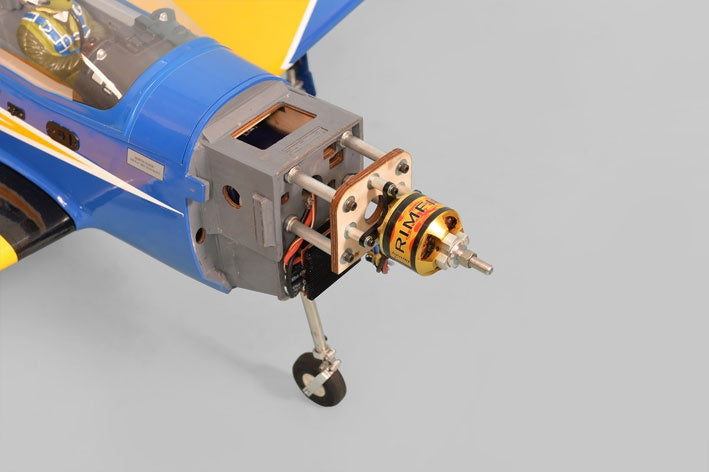

Electric propulsion recommendation:

• Motor: Brushless outrunner 2600-3000W / D-Power AL 63-03
• Controller: 150A / D-Power Antares 150A Opto HV Brushless Controller
• Battery: 12S LiPo 5000-6000mAh / 2x HD5000 6S 30C 22.2V
