uniLIGHT 15mm PIN Navigation Light, 3Wx2, SHORT Version
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
uniLIGHT 15mm PIN Navigation Light, 3Wx2, SHORT Version

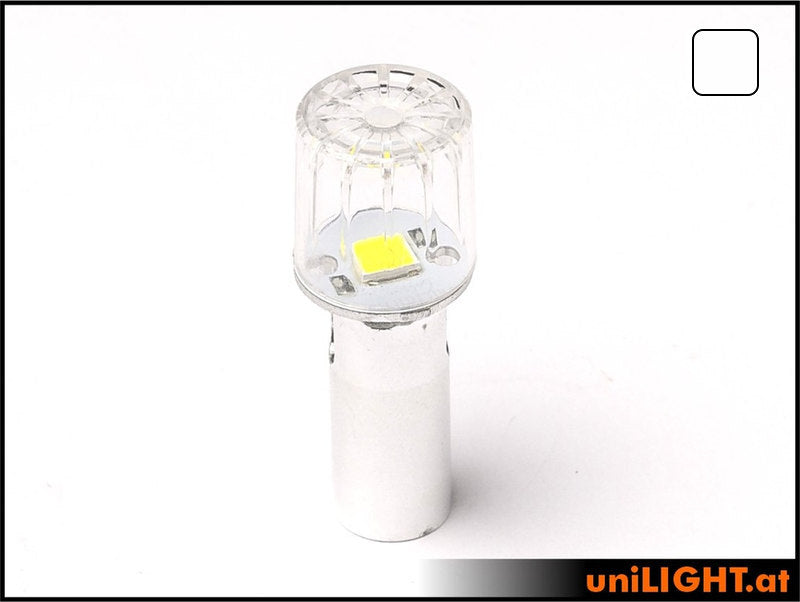

uniLIGHT 15mm PIN Navigation Light, 3Wx2, SHORT Version in WHITE

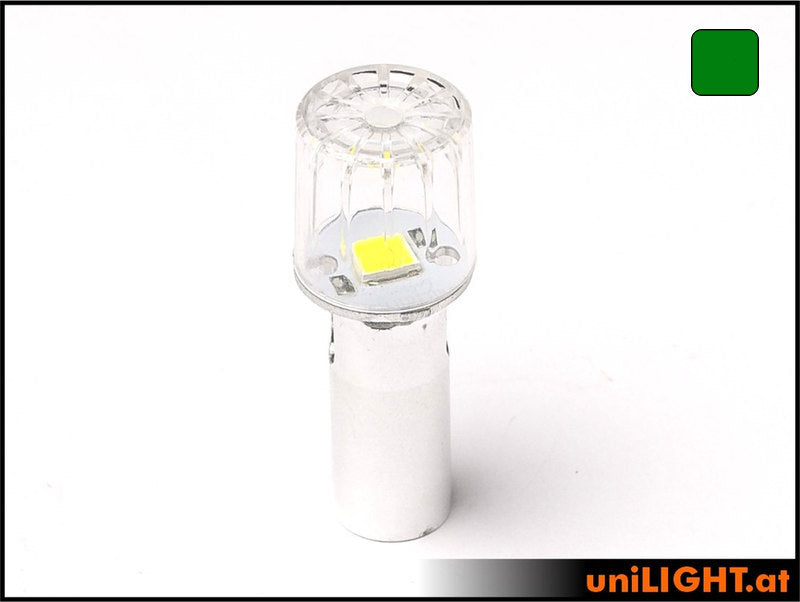

Short LED navigation light with 3W reference power for use as a position light on various models.

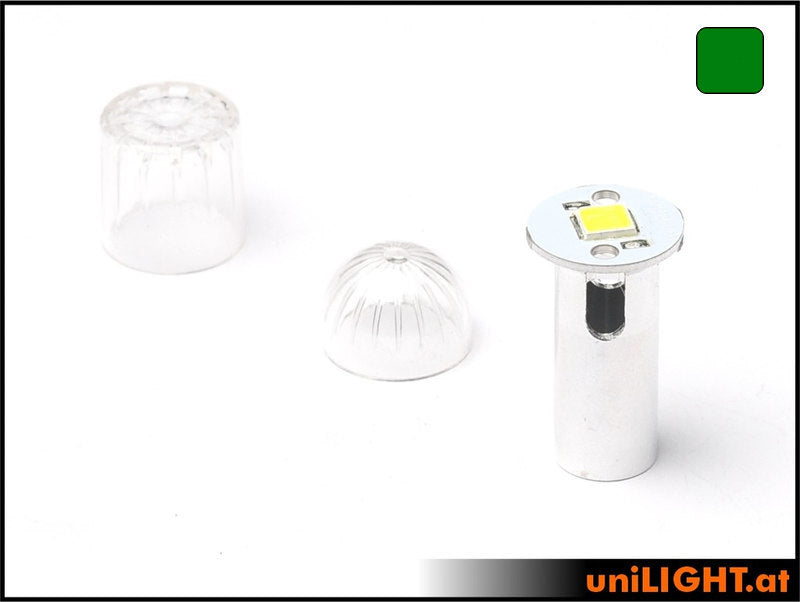

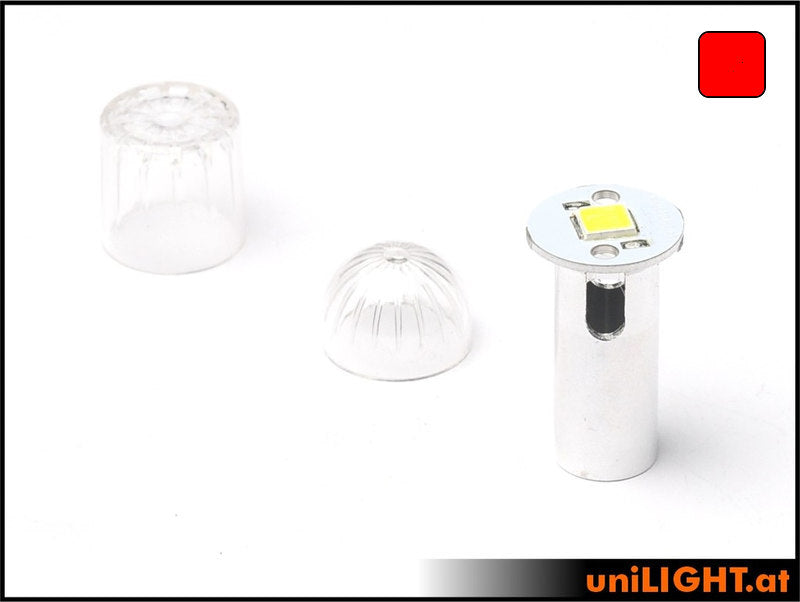

Included are 2 different light caps, one cylindrical and one round.
The position light with 3W in x2 technology has an overwhelming performance for model aircraft given its minimal size.
The design of the light includes an exposed LED chip, which as a ceramic carrier is quite sensitive. Although it is additionally glued to mechanically stabilize it, careful handling of the chip is always necessary until everything is firmly installed in the model.
A suitable control electronics is always required for operation!
Technical data:
- Electrical: 3Wx2 reference power, 8 (12)V
- Beam angle: > 160°
- Luminous intensity: ~210 Lumen WHITE
- Mounting pin dimensions: d15x18mm
- Weight: 3g (without cable)
Scope of delivery:
- 1m Teflon connection cable and resistor for 2S (additional resistor needed for 3S!)
- 1x 15mm Cylindrical cap
- 1x 15mm Round cap
Information on reference power is a pure comparative value between the offered light sources. They usually refer to an operating voltage of 12V/3S Lipo and depend on the light source, operating mode and technology. Please note that high-power LEDs can get very hot; up to 70°C is quite normal. Check the operating temperatures after installation. No warranty is given for overheating.
Attention: These LED lights are extremely bright! Never look directly into an LED, danger of retinal damage!
