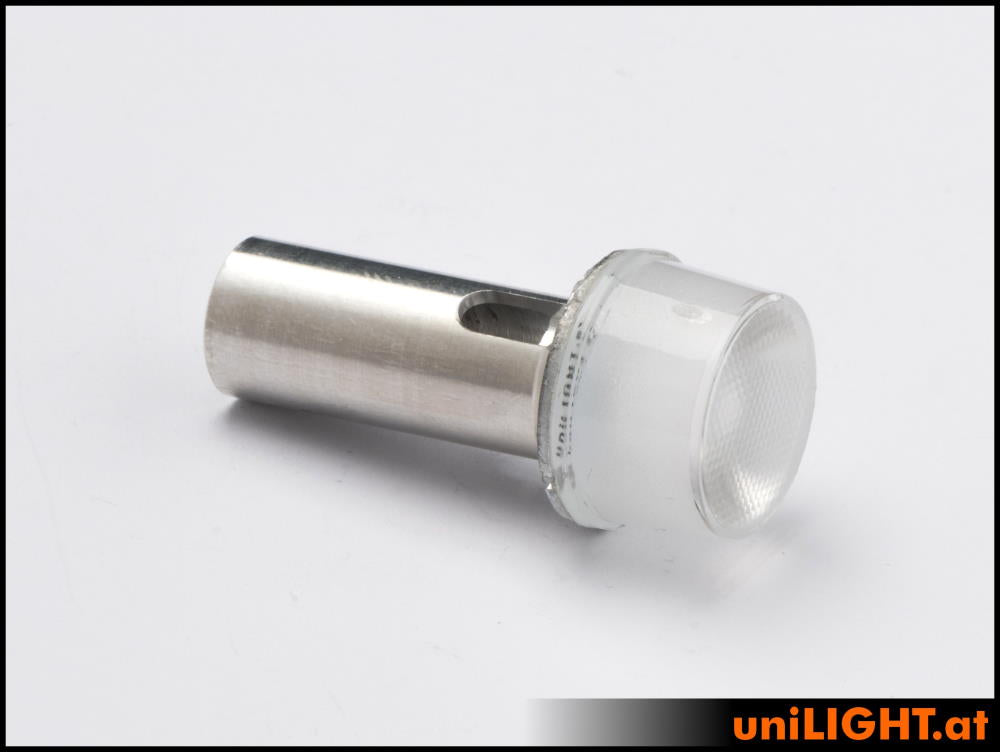

uniLIGHT 26mm ECO Headlight Module, 2.5Wx2, white, 8V / with 12V resistor

Ultra-power in a very compact, CNC-machined 16mm aluminum spotlight. An absolute novelty in light output, the LED emitter bundles 4 so-called Cree chips to produce unprecedented performance in the smallest space.
Direct operation with 2S LiPo (8V), for 3S (12V) an additional resistor must be soldered in.
Ensure sufficient cooling air during operation. For the first time in the model building sector, these headlights have an integrated overtemperature fuse. If the housing gets too hot during operation, the light will shut down safely and without risk. Such headlights can only be operated for approx. 3 minutes at a time without further cooling, then the fuse will switch off the light or make it flash.

With x2 technology, several high-performance LEDs are operated in a "cluster". This circuitry achieves double the light output with the same waste heat or the same light output with half the waste heat, yet the x2 lights remain fully compatible with all uniLight lamps.
If x2 technology lights, for example in headlights, are connected via separate cables, these cables must not be bundled with other cables! x2 lights react much more strongly to weakening batteries.
The reference power specifications are a purely comparative value between the offered illuminants. They usually refer to an operating voltage of 12V/3S Lipo and depend on the illuminant, operating mode and technology. Pay attention to the operating temperature, we cannot assume any warranty due to overheating.

Caution: The LED lights are extremely bright! Never look directly into an LED!

Technical data:

• Power: 2.5Wx2 reference power
• Overtemperature protection: at 65-70°C the LED is switched off or pulsed
• Voltage: 8V, for 12V use the enclosed resistor!
• Current: 0.2A
• Beam angle: ~50°
• Luminous intensity: ~200 Lumen
• Dimensions: D16x34mm
• Weight: 2g (without cable)

Scope of delivery:

• Pre-assembled with 1m connection cable
• Additional resistor for 3S operation
