uniLIGHT BEC 15A
uniLIGHT BEC 15A

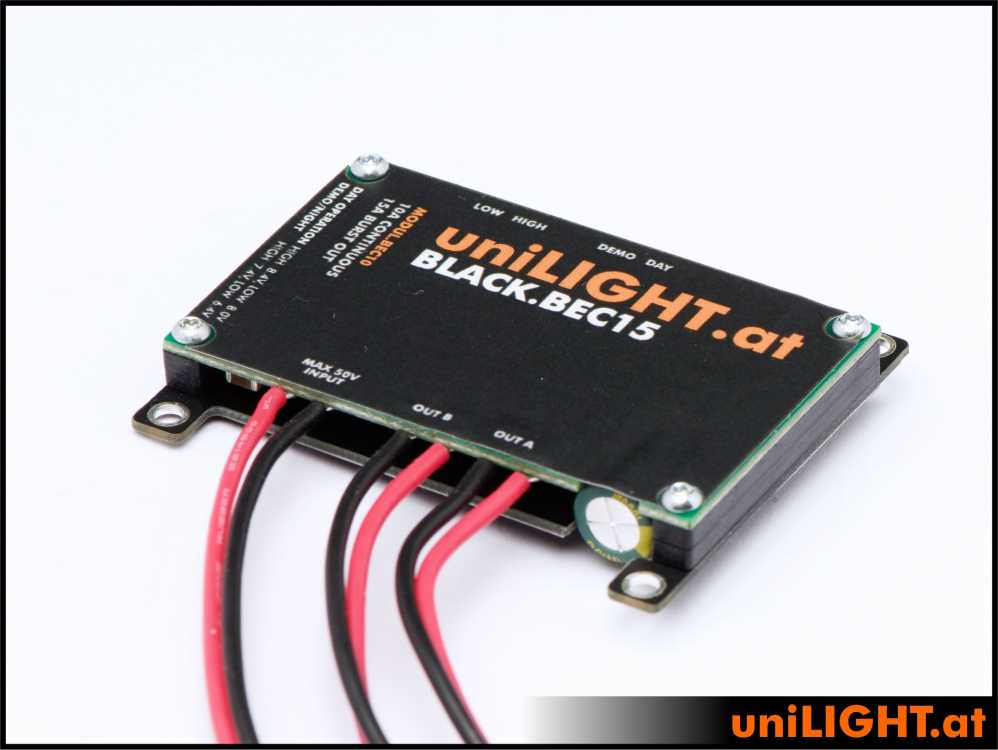

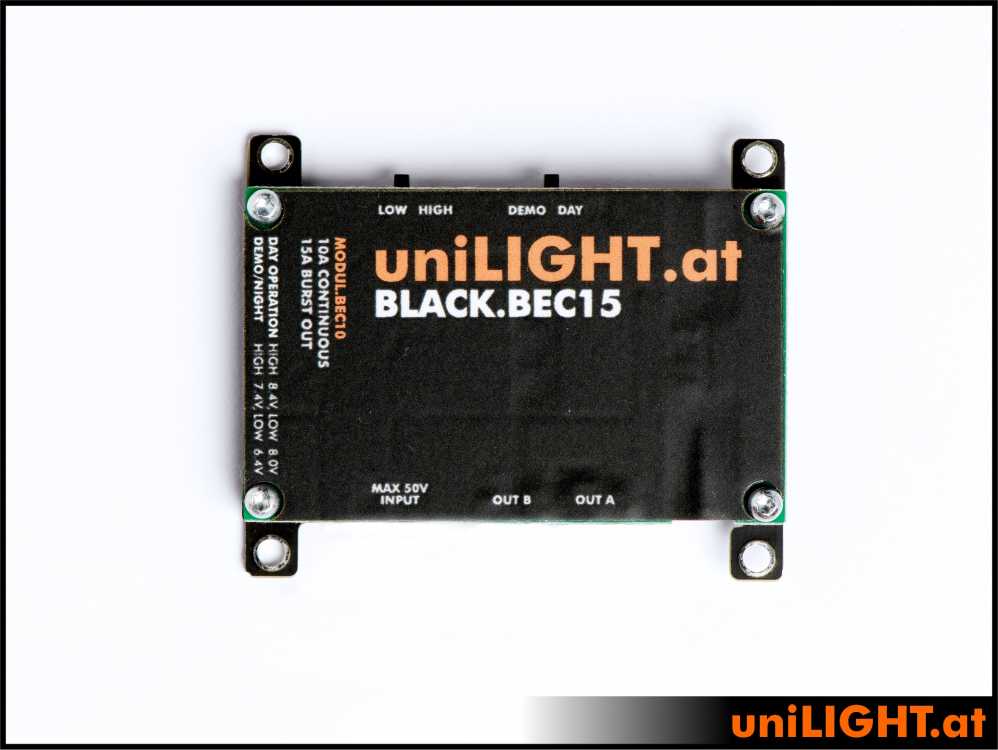

The BEC module (Battery Elimination Circuit) was specially developed for use with uniLIGHT.at lighting systems and offers high performance with very small dimensions.

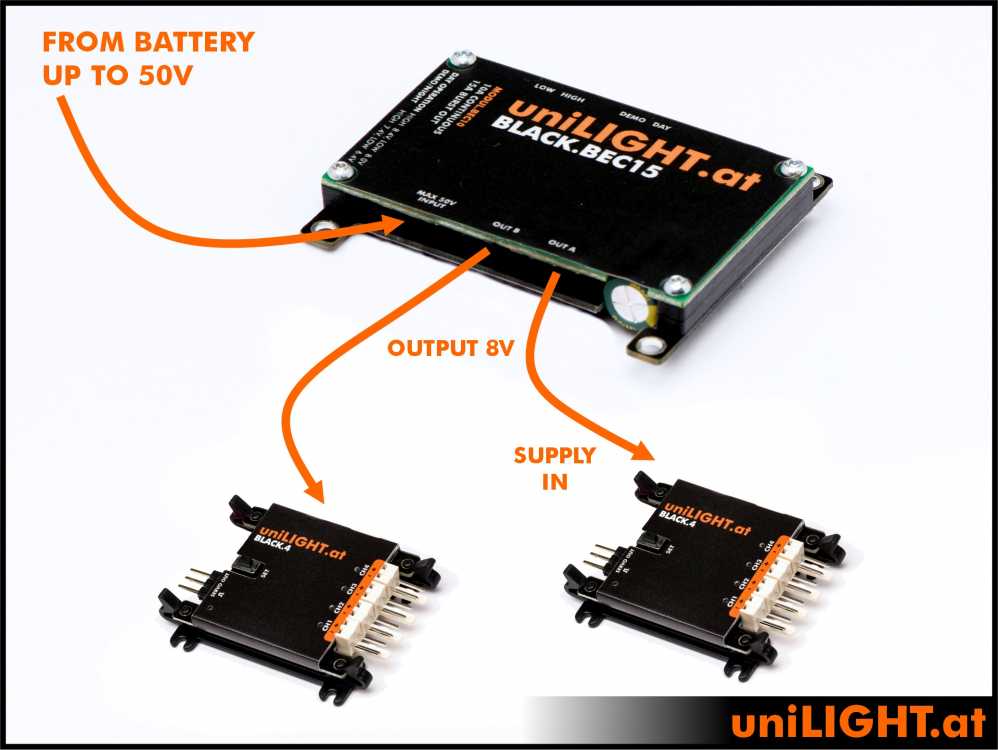

The module can generate the necessary, constant voltage of 8V (corresponds to 2S LiPo) directly from a drive battery (up to 50V). All that is required is to plug the power supply into the module; the lighting system can then be operated directly from the output. Thanks to the galvanic isolation of the uniLIGHT controls, no interference can occur in the reception area. Very powerful lighting systems with up to 10A continuous current, 15A peak current can be operated.
In addition, this BEC module offers further setting options via small switches on the side.

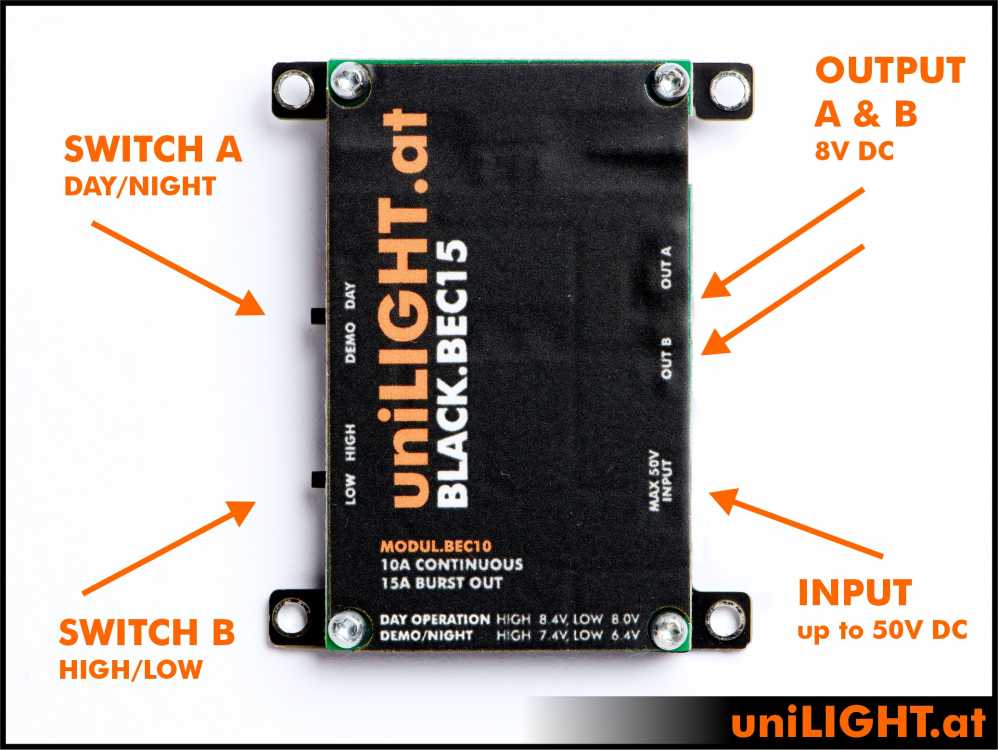

Switch A DAY/DEMO
Switching between day operation 8V and the greatly reduced night and demo operation with 6.4V.
Please note that demo operation reduces the brightness, but endless operation is also not possible. Please always check the operating temperatures.
Switch B HIGH/LOW
Switches in the respective operating range between full power (8.4V/7.4V) and slightly reduced voltage (8.0V/6.4V).
Please note that in DAY+HIGH setting, the lights are supplied with maximum operating voltage. They are optimally bright, but also get correspondingly warm.
Technical data:
- Operating voltage input: up to 50VDC
- Output current constant: up to 10A
- Peak current: 15A
- Output voltages: 8.4V / 8.0V / 7.4V / 6.4V
- Weight (without cable): approx. 26g
- Dimensions: 34x54x10mm

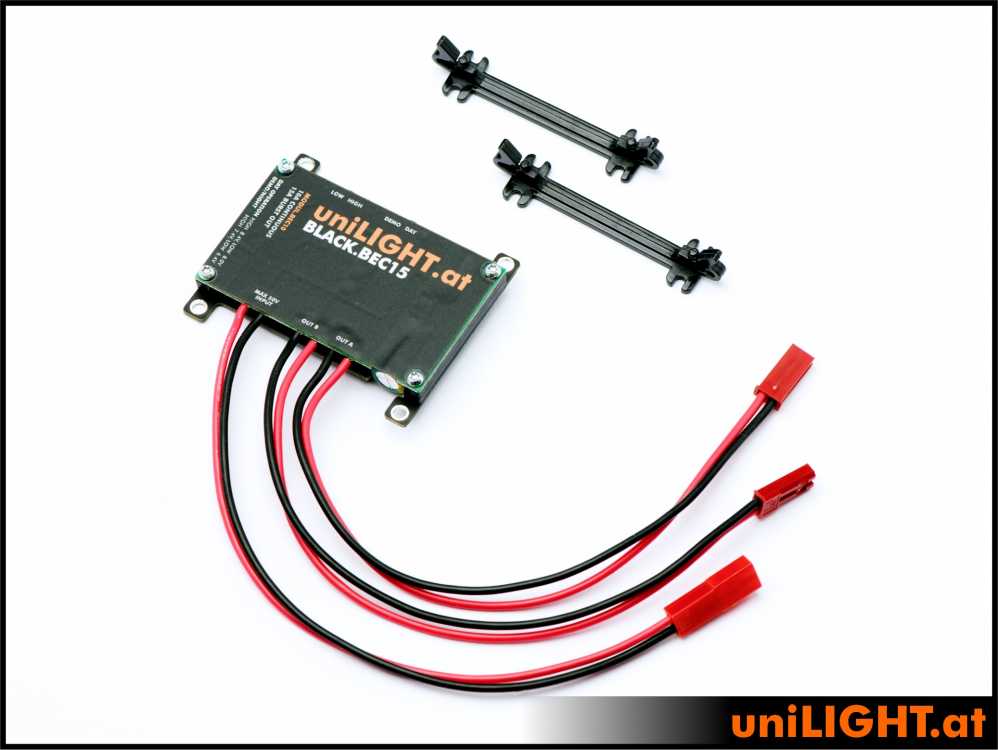

- Scope of delivery: JST BEC cable M/F, mounting clips
