uniLIGHT Black 4, 4-channel LED control, 50x35x6mm, 8g, 8A total, 15+1 effects

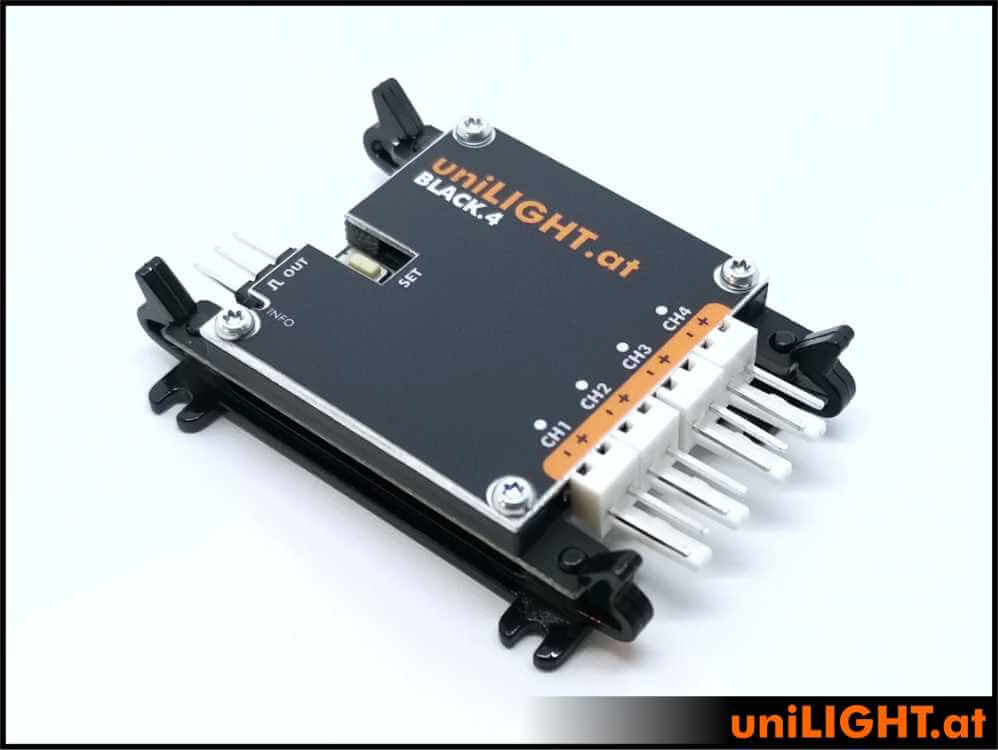

4-channel control of the latest generation: BLACK.4

Our Black.4 control unit is the new, slim standard control for uniLIGHT lighting systems. It delivers fast and brilliant results for all model ranges, but unlike its predecessor, it has been significantly improved in all areas. With its 4 control functions, it operates strobes, beacon/ACL, navigation/position lights, and headlights via just one remote control channel, making it ideal for almost any flight model. As a new feature, 16 new special functions for night and show flight are also offered.

Innovations of the BLACK-Series

• Dynamics more beautiful, faster and more sharply defined lighting effects
• Variety 3 times as many pre-programmed light schemes
• Dimensions reduced thickness and weight, reverse polarity protected connectors as output
• Safety basic short-circuit protection with reactivation, reverse polarity protection
• Performance up to 5 amps per channel continuous current, 8A total
• Battery deep discharge protection for connected LiPo/LiIon
• Master-Slave Principle no switch necessary in the load circuit
• Scale soft switching transition programmable as a special function
• Sport Navigation + flash special function for many sport tasks
• Future New hardware platform enables updates and extensions

Special function

• Slow switching processes Soft switching transition to simulate incandescent lamp behavior or the simulation of a rotating beacon with slow flashing functions.
• Fast switching processes The flash signal is underlaid with a basic component of approximately 20% power. This means that all strong flashlights can now also be used as position lights AND flashlights at the same time. Optimal application for all sport models: only one light but two

Technical data

• Control side receiver 4.8-9.6V
• approx. 8g without cable
• Dimensions 50x35x6mm
• Light signals 4 channels with 5A up to 16V (>6A pulse)
• Total load up to 8A continuous (>10A pulse)
• Galvanically isolated system
• Operation also possible without RC signal

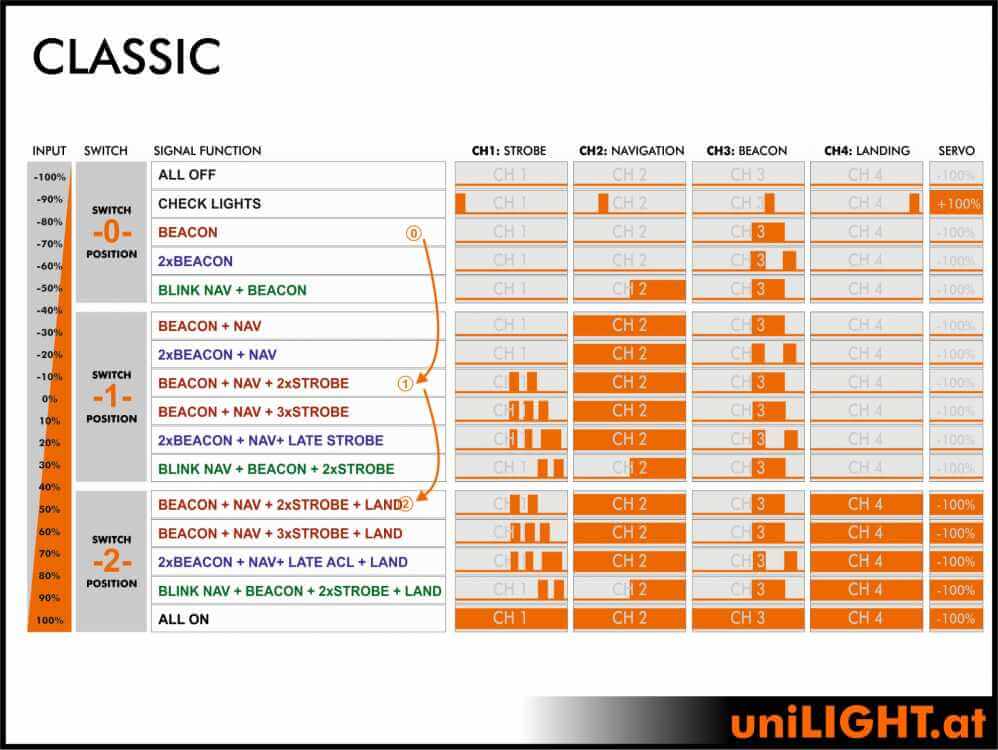

• 15+1 classic light schemes with variable speed

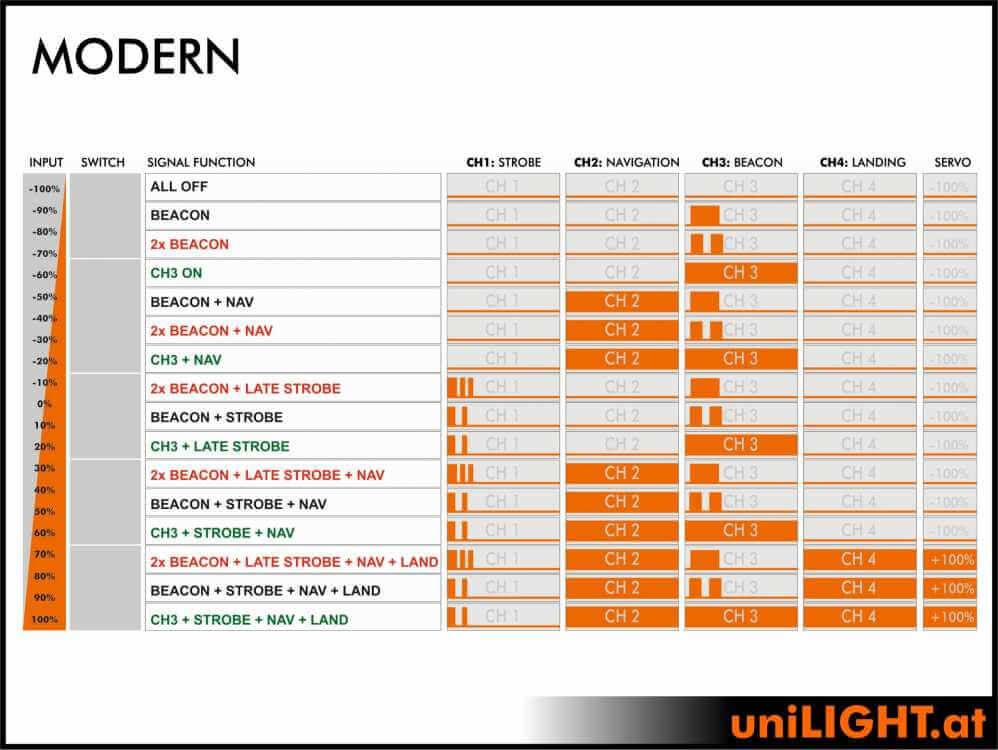

• 15+1 modern light schemes with variable speed

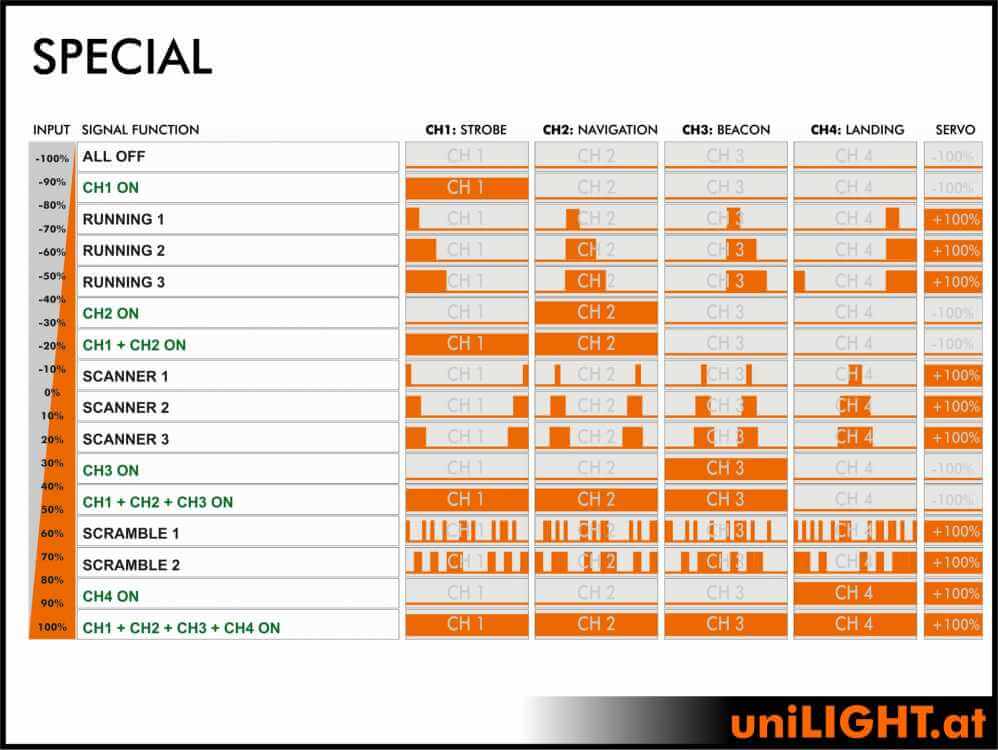

• 15+1 special effects with variable speed (running light, scanner, rotation,...)
• soft switching process programmable
• Navigation with flash function programmable
• Short circuit protection
• Deep discharge protection
• Reverse polarity protection
• Servo output for operating retractable headlights, switches or valves
• Includes mounting clamps for quick release, 3m cable and description
