uniLIGHT PURE Navigation Light, 8Wx2, 8(12)V, 0.6A
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
uniLIGHT PURE Navigation Light, 8Wx2, 8(12)V, 0.6A
uniLIGHT PURE Navigation Light in WHITE, 8Wx2, 8V(12V), 0.6A
Universal light with significantly increased luminous efficacy as a position/navigation light with an elaborate heatsink for installation behind existing glass moldings, for hobbyists and custom solutions. Continuous operation is not permitted and will destroy the LED. The heatsink is specially tapered to allow for a completely concealed installation.

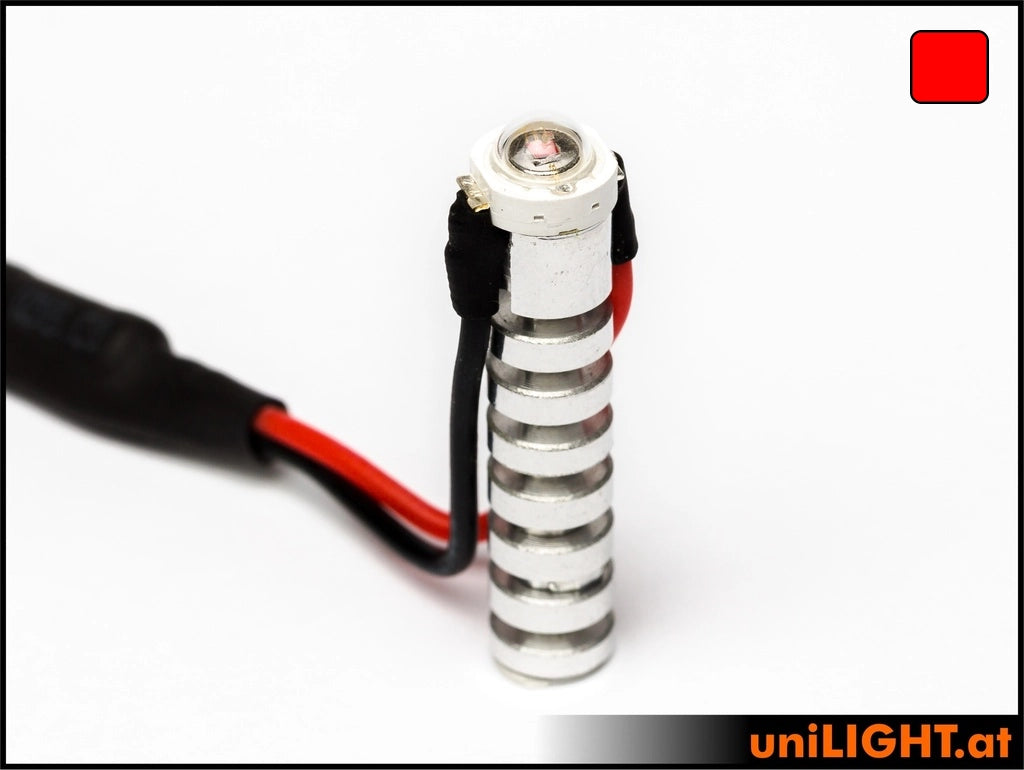

The module is supplied pre-wired on an aluminum heatsink.
Technical data:
- Electrical: 8Wx2 reference power, 8V(12V), 0.6A >> an additional series resistor is mandatory for 3S!
- Beam angle: ~160°
- Luminous intensity: ~400 lumens
- Heatsink dimensions: D7x30mm
- Chip dimensions: D8mm
- Weight: 2g (without cable)
Scope of delivery:
- With 1m connection cable, pre-assembled series resistor for 2S and mounted on an aluminum heatsink.
Notes:
Reference power specifications are a pure comparative value between the offered illuminants. They usually refer to an operating voltage of 12V/3S Lipo and depend on the illuminant, operating mode, and technology.
Please note that high-power LEDs can get very hot; up to 70°C is completely normal. These lights with heatsink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot assume any warranty due to overheating.
Caution: The LED lights are extremely bright! Never look directly into an LED!
