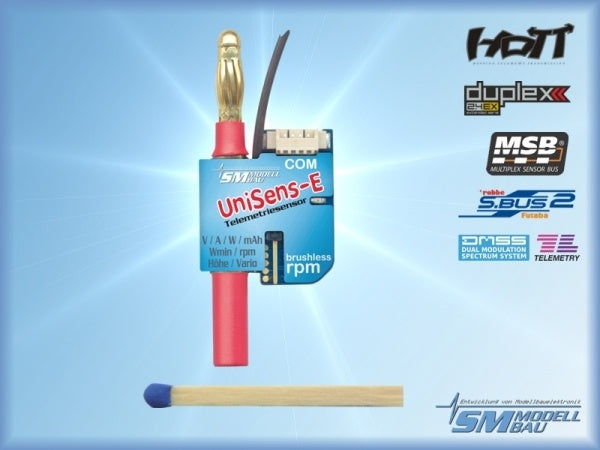

UniSens-E with 4mm gold connector SM # 3102

With improved V2 altitude sensor. The small, powerful RC telemetry sensor measures and transmits voltage / current / power / capacity / energy / brushless RPM / altitude / variometer.

The UniSens-E is a pure telemetry sensor specifically for all electric models. It is so small and light, yet so powerful that it can be used in almost any model. In accordance with SM-Modellbau's philosophy of supporting as many systems as possible, the UniSens-E also speaks the language of Jeti Duplex (EX), Multiplex M-Link, Graupner HoTT, Robbe/Futaba FASSTest, and JR DMSS. The UniSens-E automatically recognizes HoTT telemetry systems when delivered. When used with Jeti, Multiplex, Futaba, or JR, the telemetry must be specified in the settings beforehand. To change settings via PC or for firmware updates, a suitable USB interface such as item no. 2550 or an existing USB connection cable from Jeti, Multiplex, or Graupner is required. Please refer to the manual for more information.

Without additional sensors, the UniSens-E can measure the entire drive system, i.e., voltage, current, capacity, and even RPM. A brushless RPM sensor is already built in as a special feature. To measure the RPM, only a small cable connection to one of the three motor phases needs to be made with the enclosed cable. Since a barometric (air pressure) altitude sensor with high resolution is also integrated, in addition to altitude measurement, a variometer is also realized with the UniSens-E. Extensive alarms can also be programmed, which are reported via telemetry through the respective transmitter.

The UniSens-E is available with various connector systems, so soldering is usually not necessary. The current measurement range extends symmetrically in both directions. This means that the connector assignment, i.e., whether the battery has male or female on the positive pole, does not matter. The measurement direction is simply set in the setup. All measured values of the UniSens-E can also be viewed live directly via our UniDisplay, and all settings and alarms can be programmed.

Whether glider, aerobatic aircraft, helicopter, HLG, or slow flyer, the UniSens-E can be used in almost any area due to its low weight and compact size. Of course, the UniSens-E is not only suitable for flight models. It can also be installed in RC boats, RC cars, etc.

With the UniSens-E, you acquire a powerful universal RC telemetry sensor in all respects, which utilizes the possibilities of modern electronics to be a great help to you as a small helper in dealing with your RC models.

And this is what the UniSens-E can do:

• Complete measurement of electric drives with current, voltage, power, capacity, RPM, and altitude measurement
• Integrated brushless RPM sensor
• Full telemetry support for Jeti Duplex (EX), PowerBox Core, Multiplex M-Link, Graupner HoTT, Futaba FASSTest S.BUS2, JR DMSS, Fr Sky, and Spektrum
• Altitude measurement with automatic zeroing after power-on, barometric variometer
• Current measurement range up to 140 A in both directions, voltage up to 60 V (however, the maximum current carrying capacity of the connectors used must not be exceeded!)
• Connection for receiver signal for remote control of certain functions
• Direct connection to GPS logger possible for data recording in a file
• Measurement of receiver battery voltage
• Power supply by receiver
• Current status is signaled via LED
• Direct viewing of measured values live or recorded with our UniDisplay
• Parameter settings possible via PC, UniDisplay, and telemetry
• PC software for settings and updates (SM UniSens-E Tool)
• Free firmware updates via PC with our USB interface (item no. 2550) or with existing USB connection cables from Jeti, Multiplex, or Graupner (the firmware file can be found here)
• Can be used almost anywhere due to its compact size and low weight

For technical data and the complete range of functions, please refer to the operating instructions.

Typical wiring examples of the UniSens-E in the model:

1. Altitude measurement only with altitude sensor integrated in UniSens-E, e.g., for F3B / F3J gliders

2. Electric drive measurement

Technical data:

• Current measurement range: 140 A in both directions, i.e., -140 A to +140 A
• The following load durations are permissible: - 100 A unlimited - 120 A for 1 minute - 140 A for 20 seconds (However, depending on the connector system, the limits of the connectors are significantly lower!) Useful values are with - MPX green (double contact) and XT60 continuous: 50 A / 20A
• Voltage measurement range: 0 to 60 V
• Altitude measurement range: 0 to 8000 m above sea level, automatically zeroed when switched on
• Receiver voltage measurement: 3.8 V to 10 V
• Data rate: 10 Hz
• Power supply from receiver power supply via the telemetry connection (from 3.8 V to a maximum of 10 V)
• Power consumption: approx. 25 mA
• External connections: 1 connection for telemetry and power supply 1 phase connection for brushless RPM measurement 1 servo pulse input from the receiver COM connection for UniDisplay, GPS logger or PC

Dimensions:

• Green MPX connector: 26 (38) x 29 x 9 mm
• Yellow XT60 connector: 26 (50) x 29 x 9 mm
• 4 mm gold connector: 26 (55) x 22 x 9 mm 5.5 mm gold connector: 26 (44) x 22 x 11 mm
• 6 mm LMT gold connector: 26 (42) x 22 x 11 mm
• Weight: 10 g - 14 g without cable (depending on connector system), connection cable 4 g
• Scope of delivery: UniSens-E with integrated altitude sensor / variometer Connection cable to receiver for telemetry / power supply Connection cable for brushless RPM measurement Detailed color operating instructions
